Quick Details
-
Item name:
-
flexible canvas duct connector
-
Material:
-
canvas,silicone/neoprene/PVC coated fabrics
-
Color:
-
red,green,white or as your required
-
Thickness:
-
0.5mm ~ 1.5mm or as your required
-
Max Temperature:
-
360℃
-
Size:
-
250,300,350,400mm or As your required
-
Function:
-
Fireproof and airproof.
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FL
-
Model Number:
-
V-B-0065
-
Item name:
-
flexible canvas duct connector
-
Material:
-
canvas,silicone/neoprene/PVC coated fabrics
-
Color:
-
red,green,white or as your required
-
Thickness:
-
0.5mm ~ 1.5mm or as your required
-
Max Temperature:
-
360℃
-
Size:
-
250,300,350,400mm or As your required
-
Function:
-
Fireproof and airproof.

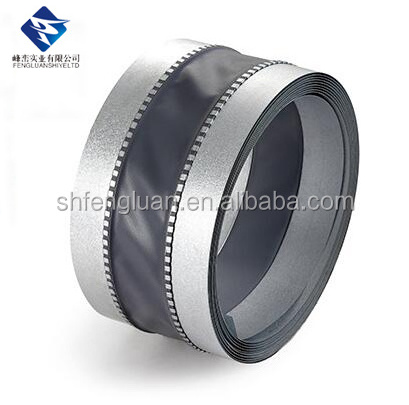

HVAC system Flexible connector for duct fitting
Application:
*Flexible Duct Connector is designed to enable flexible joints of any size to be easily and economically formed in the
factory or on site, and requied.
*Flexible jointes should be installed between fans(or similar equipment) to prevent the transmission of vibration,
nioses and rattles to the remainder of the air conditioning system.
| Name | Flexible duct connector |
| Metal Materials | Gavanized steel sheet,the thickness is 0.4mm or 0.5mm |
| Fire-Resistant Fabric | GC-PV (Polyester Vinyl),GC-SI(Silicone),GC-NE(Neoprene),GC-CV(Canvas) |
| Packages | Flexible duct connector Standard roll length avaiblbe in 80feet and 100feet an 150 feet |
| Normal size | 35/60/35 mm,45/70/45mm,70/100/70mm,75/100/75mm |
| Application | Install between fans (or similar equipment) |
Best Quality Custom Hvac System Flexible Canvas Duct Connector - Buy Flexible Canvas Duct Connector,Flexible Duct Connector,Flexible Duct Product on Alibaba.com
1. Vinyal coated Fabric (GC-PV) Industrial
Base Fabric : Woven Polyester
Color : Black OR GREY
Weight : 22 Ozs/SQ Yd(746g/m2)
Tongue Tear: 150/150 lbs
Tensile Strength : 500/400 Lbs(2,224N)
Low Temperature : -40
High Temperature : 200
2. NEOPRENE Commercial Coated Fabric (GC-GN)
Base Fabric : Woven Glass
Color : Black
Weight : 22 Ozs/Sq Yd/74g/m2)
Tongue Tear : 25/20 Lbs
Tensile Strength : 500/500 Lbs(2,224N)
Low Temperature : -58 F
High Temperature : 225 F
3. Canvas Coated Fabric ( GC -CV) Commercial
Base Fabric: Canvas
Color : Green
Weight : 22 Ozs/sq yd (746g/m2)
Tensile Strength: 500/500 lbs (2224N)
4. HYPALON Coated Fabric ( GC -GH) (High Temperature)
Base Fabric: Woven Fiberglass
Color: Bright Red
Weight: 27ozs/sq yds (915/m 2 )
Tongue Tear: 20/15 lbs
Tensile Strength: 500/500 lbs (2224N)
Low Temperature: -58 o F
High Temperature: 350
o
F
