Quick Details
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
HGL
-
Max. Current:
-
3150A
-
Product Name:
-
400A 3 Phase Electrical Manual Changeover Transfer Switch
-
Usage:
-
Low voltage
-
Rated current:
-
63A-3150A
-
Rated voltage:
-
690V
-
Mounting material:
-
fire-resistance, DMC
-
MOQ:
-
1 PCS
-
Pole:
-
3P or 4P
-
OEMODM:
-
Yes
-
Certification:
-
CE,CCC
-
External Material:
-
Resin & Metal
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GRL or OEM
-
Model Number:
-
HGL
-
Max. Current:
-
3150A
-
Product Name:
-
400A 3 Phase Electrical Manual Changeover Transfer Switch
-
Usage:
-
Low voltage
-
Rated current:
-
63A-3150A
-
Rated voltage:
-
690V
-
Mounting material:
-
fire-resistance, DMC
-
MOQ:
-
1 PCS
-
Pole:
-
3P or 4P
-
OEMODM:
-
Yes
-
Certification:
-
CE,CCC
-
External Material:
-
Resin & Metal

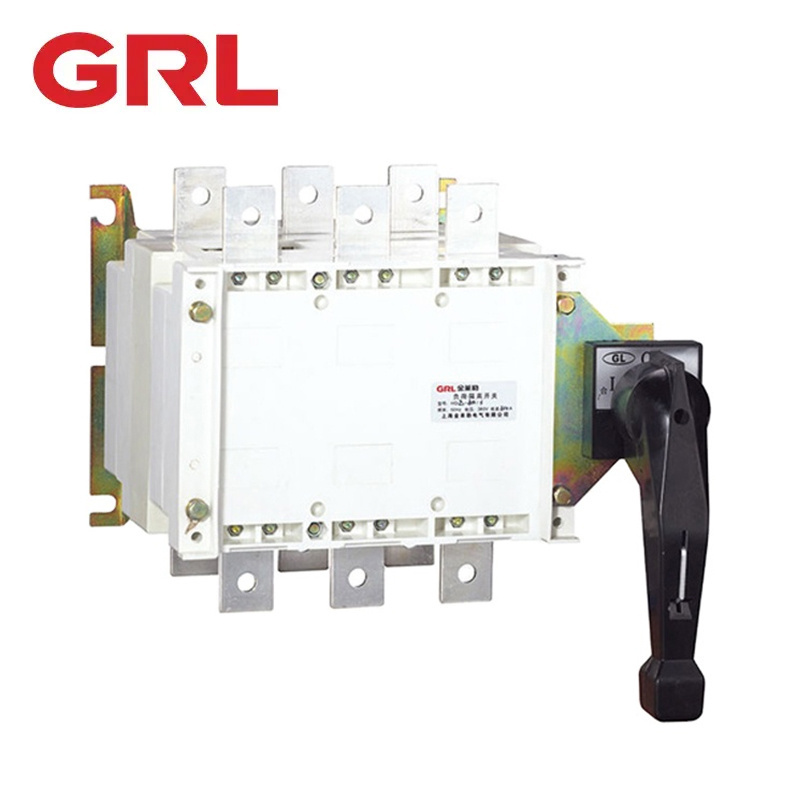

HGLZ Type Manual Transfer Switch
|
*HGLZ-160A~600A. The load isolatn switch is suitable for the changeover of two sets of low voltage electric circuit or the changeover of 2 sets of load devices or safety isolation. * Mode of operation:Direct operation: handle is installed on the switch.Operation outside the board: handle is installed outside the door of power distributing board. *Producti with observation windows can be provided according to the demand to observe directly the on and off state of contact. *The products have three poles. four poles ( three poles+on andoff neural pole ). *Extended shaft is used for the operation outside the board. *Two sets of auxiliary contacts can be assembled acording to the demand. *Mechanical performance and electrical performance correspond to the mechanical property of HGLZ-160A~1600A. *A bridge can provided to connect the inlet or outlet term. |
| Conventional current | 160 | 250 | 400 | 630 | 1600 |
| Rated current In(A) | 100A TO 160A | 160A TO 250A | 250A TO 400A | 400A TO 630A | 630A TO 1600A |
| Rated insulation voltage Ui (V) | 690V | 690V | 690V | 690V | 690V |
| Dielectr Conventional current c strength (V) | 5000 V | ||||
| Rated surge-resistant voltage Uimp KV | 6 | ||||
|
Rated working current (AC380 AC-21) |
160 | 250 | 400 | 630 | 1600 |
|
Rated working current (AC660 AC-21) |
160 | 250 | 400 | 630 | 1600 |
