Quick Details
-
Battery:
-
DC12V±10%
-
Usage:
-
Clean room
-
Product name:
-
online particle counter system
-
Brand:
-
hjclean
-
Size:
-
140*100*64mm
-
Weight:
-
2.2KG
-
Measurement range:
-
0.3~10μm
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HJCLEAN
-
Battery:
-
DC12V±10%
-
Usage:
-
Clean room
-
Product name:
-
online particle counter system
-
Brand:
-
hjclean
-
Size:
-
140*100*64mm
-
Weight:
-
2.2KG
-
Measurement range:
-
0.3~10μm
Products Description
Online monitoring particle counter system structure.
The suspended particle online monitoring system is used to record the presence of airborne suspended particles in key areas of the production line. It can automatically and continuously monitor and record the particle size and quantity distribution of suspended particles in the monitored ambient air,while generating reports. When the state of dust particles in the monitored environment exceeds the warning line and deviation correction line,the system can automatically trigger an audible and visual alarm to notify relevant personnel to handle it, thereby helping to ensure that the particle state in the monitored critical environment is in a normal state to ensure the smooth progress of production.
EIGHT ADVANTAGES .
1. A powerful software system that is compatible with sensors from all over the world,such a lighthouse,METONE,PMS free upgrade.
2.The software system has an open data interface and can be easily connected to users' MEs/s CADA and other systems.
3.The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function, with over 1000 user management permission settings.
5.With real-time curve,data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration,fast and flexible, without the need for disassembly and return to the factory.
8.HJCLEAN software System Lifetime Free Upgrade.
SOFTWARE SYSTEM
PRODUCTS DETAILS
online dust particle counter. .
The online dust particle counter is an online detection online particle counter that measures the size and quantity of dust particles contained in a unit volume of air in a clean air environment.
This online particle counter has multiple models (Y09-SS,Y09-6S, REMOTE3016, REMOTE5102,REMOTE5102P),Adopting a new international sensor for detecting the concentration of dust particles in the air,it is a high-tech product integrating optics and laser technology,electronic technology, computer technology,precision machinery, aerodynamics, and other disciplines. It is characterized by high measurement accuracy,reasonable detection, stable performance, multiple functions, unique modeling,small size, light weight, and easy installation, It is mainly used for online monitoring of cleanliness in clean environments, evaluating the change trend of ambient air dust particles,online monitoring,early warning,and alarming of ambient air quality and fugitive dust,etc...
This transmitter is designed to detect particle size classes and sampling methods in accordance with international standards (ISO14644,EU-GMP),and its performance indicators comply with national standards and national metrological verification regulations, It is widely used in online environmental monitoring in pharmaceutical,microelectronics, optics, medicine and health, biological products, atmospheric analysis, aerospace, and other departments.
working principle.
This transmitter adopts the principle of light scattering. Under the action of a vacuum pump, air is sucked into the sampling port and flows into the photoelectric sensor.When suspended particles in the air pass through the photosensitive zone, they scatter a certain proportion of their particle diameter.After photoelectric conversion, amplification, and processing,the equivalent diameter and quantity of the collected particles are obtained. The processor forms a communicable code,and communicates with the host computer to send the detected data.
Performance Parameter
|
Model / Parameter
|
Y09-6S
|
REMOTE 3016
|
Y09-6ST
|
Y09-SS
|
REMOTE 5102F
|
REMOTE 5102P
|
REMOTE3106P
|
||||||
|
Detect particle size
|
0.5,5.0μm
|
0.3,0.5,1.0,2.0,5.0,10μm
|
0.5,5.0μm
|
|
|
|
0.3,0.5,1.0,20,50,10μm
|
||||||
|
Sampling flow
|
0.1CFM(2.83L/min)
|
|
|
1CFM(28.3L/min)
|
|
|
|
||||||
|
Overall dimension (L*W*H)mm
|
160*120(+air nozzle25)*68
|
214*115(+air nozzle25)*50
|
160*120(+air nozzle25)*68
|

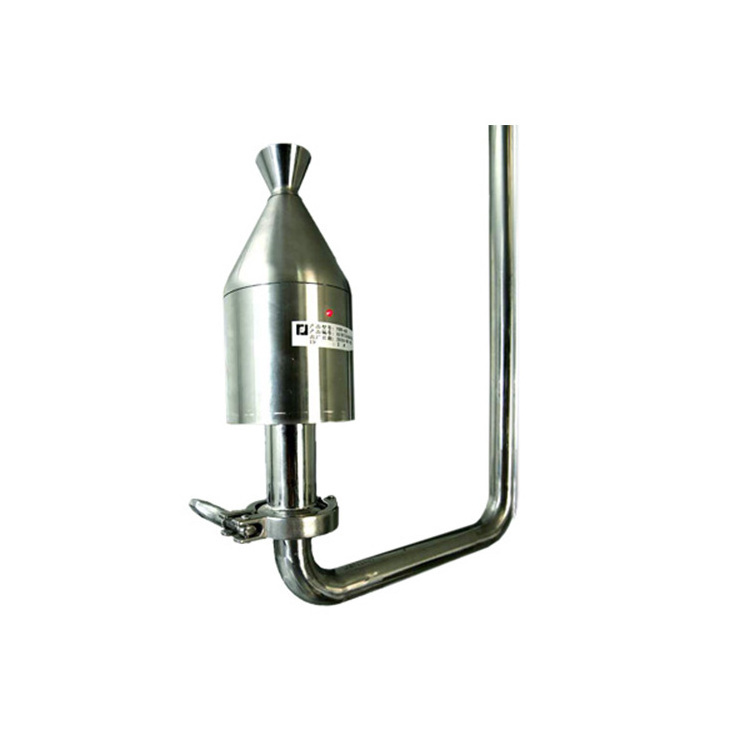

φ80*260
|
140*100(+air nozzle25)*64
|
140*100*64
|
|
||||||
|
weight
|
1.3kg
|
1.5kg
|
1.3kg
|
2.2kg
|
1.6kg
|
1.6kg
|
|
||||||
|
Maximum power consumption
|
20w
|
|
|
8w
|
8w
|
50w
|
|
||||||
|
power supply
|
DC12V±10%
|
|
|
|
24V±10%
|
|
|
||||||
|
Sampling pumps
|
Built-in pump,(brand:Thomas)
|
|
|
External pump,
centralized sampling
|
|
Built-in pump
|
|
||||||
|
Detection unit
|
Pcs/ft3
|
|
|
|
|
|
|
||||||
|
Concentration error
|
30%
|
|
|
|
|
|
|
||||||
|
repeatability
|
≤10%
|
|
|
|
|
|
|
||||||
|
Measurement accuracy
|
±10%
|
|
|
|
|
|
|
||||||
|
Self-cleaning time
|
≤10min
|
|
|
|
|
|
|
||||||
|
Output mode
|
RS485
|
|
|
|
|
|
|
||||||
|
Light source and life
|
Semiconductor laser,life greater than 3000oh
|
|
|
|
|
|
|
||||||
|
environment
|
Temperature:10--30°C,humidity:20-75%;Atmospheric pressure:86kPa-106kPa
|
|
|
|
|
|
|
||||||
