JK5530-2S-ED3 industrial walking foot zig zag sewing machine a coudre industrielle zigzag maquina muelle de

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

≥5 Sets

US $915

≥10 Sets

US $875

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Feed Mechanism:: Needle Feed

Place of Origin:: Zhejiang, China

Brand Name:: JOCKY

Power:: 550W

Weight (KG):: 38 KG

Model:: JK5530-2S-ED3

Needle:: DBX5

Stitch length:: 5mm

Stitch width:: 0-9mm

Height of presser foot:: 8-13mm

Sewing speed:: 2500rpm

Packing size:: 640x250x540 mm

Net weight:: 38kgs

Gross weight:: 48kgs

Quick Details

Type:: Industrial Sewing Machine

Max. Sewing Thickness:: 8-13mm

Stitch Length:: 5mm

Feed Mechanism:: Needle Feed

Place of Origin:: Zhejiang, China

Brand Name:: JOCKY

Power:: 550W

Weight (KG):: 38 KG

Model:: JK5530-2S-ED3

Needle:: DBX5

Stitch length:: 5mm

Stitch width:: 0-9mm

Height of presser foot:: 8-13mm

Sewing speed:: 2500rpm

Packing size:: 640x250x540 mm

Net weight:: 38kgs

Gross weight:: 48kgs

Products Description

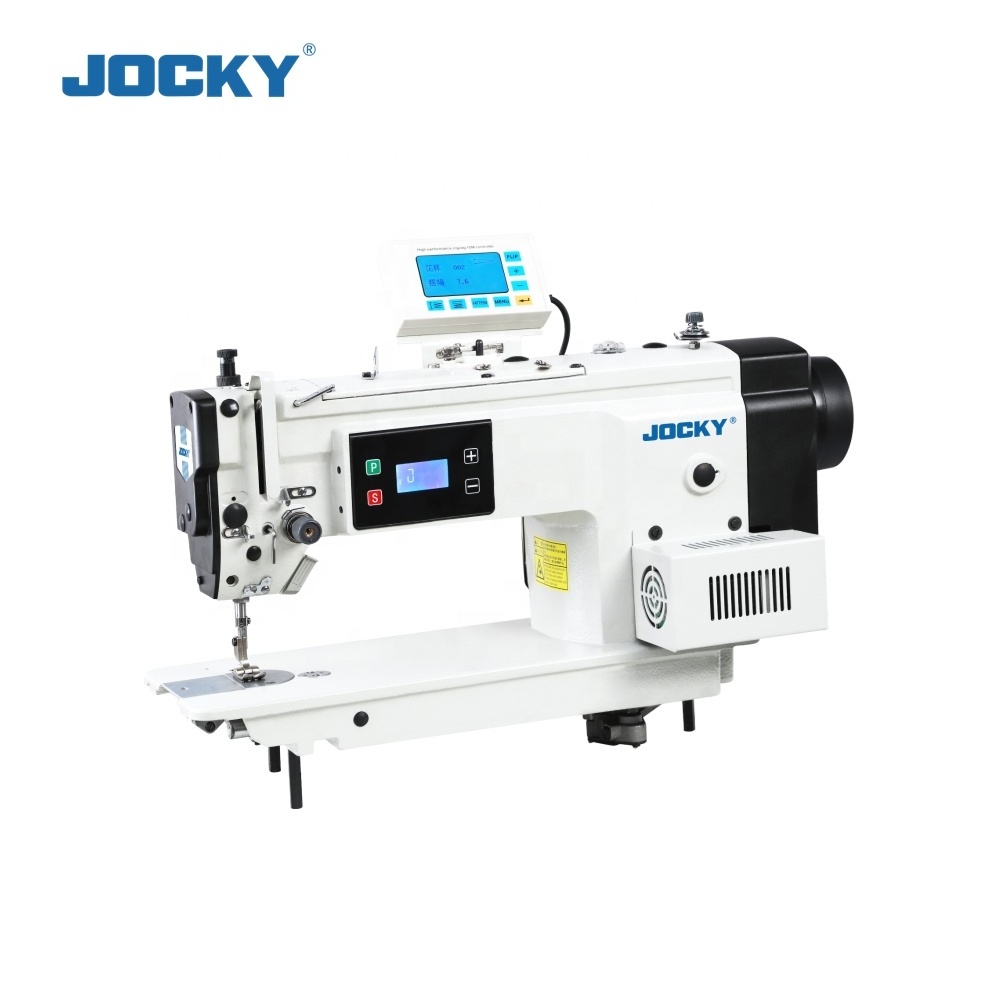

JK5530-2S-ED3 Computerized zigzag sewing machine with 240 patterns

1. With auto reverse-feed and auto presser foot
2. The machine body heavier than normal machine,more stability when sewing higher speed.
3. Auto-oil makes the spare parts more durable.
4. Large hook,opening body cover easy for repairing.
5. The machine has 240 patterns, it can design and load patterns by yourself.
6. Speed and needle position adjustable.
7. With USB port.

Specification

Model	JK5530D	JK5530-1S-ED3	JK5530-2S-ED3
Motor	Direct drive power saving motor	Single step motor	Double step motor
Patterns	Basic	190	240
Max. speed	2,500sti/min	2,500sti/min	2,500sti/min
Lubrication	Automatic	Automatic	Automatic
Needle type	DPX5	DBX5	DBX5
Max. stitch length	5mm	5mm	5mm
Stitch width	0-10mm	0-9mm	0-9mm
Presser foot lift	8-13mm	8-13mm	8-13mm
Power	550W	550W	550W
Packing size	640x250x540mm	640x250x540mm	680x270x580mm
Weight(G.W/N.W)	40/35kgs	47/38kgs	48/42kgs
