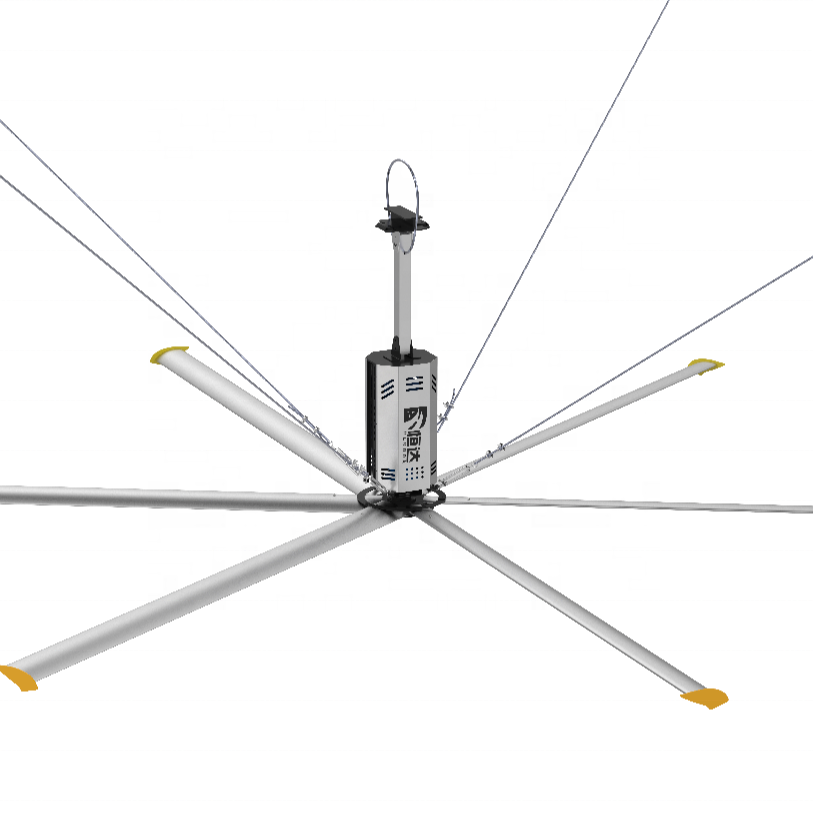

HVLS Industrial Ceiling Fan is a scientific design with its
bird wing
blades making it high in air volume ,low noice, and in line with fluid mechanical principle. The fan has large diameter blades up to 7.3m allows effective coverage of 1500SQM. It consumes only 1.5KW electricity per hour, which can replace hundreds of pedestal fans or wall-mounted fans.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HENGSHUANGDA
-
Voltage:
-
220V/380V
-
Product name:
-
HVLS FAN
-
Fan Diameter:
-
24ft/21ft/18ft/16ft/12ft/8ft
-
Size:
-
7300MM/6100MM/5500MM/4900MM/3600MM/2500MM
-
Application:
-
Warehouse Workshop Logistic Center Gym
-
Blade:
-
6/8/10
-
Product type:
-
Industrial Giant Ceiling Fan
-
Usage:
-
Big Space Cooling
-
Packing:
-
Wooden Box
-
WEIGHT:
-
140KG/130KG/125KG/120KG/110KG/85KG
-
Ventilation Fan:
-
Industrial Cooling Ventilation Fans
Quick Details
-
Mounting:
-
Ceiling Fan
-
Power:
-
1.1KW/1.5KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HENGSHUANGDA
-
Voltage:
-
220V/380V
-
Product name:
-
HVLS FAN
-
Fan Diameter:
-
24ft/21ft/18ft/16ft/12ft/8ft
-
Size:
-
7300MM/6100MM/5500MM/4900MM/3600MM/2500MM
-
Application:
-
Warehouse Workshop Logistic Center Gym
-
Blade:
-
6/8/10
-
Product type:
-
Industrial Giant Ceiling Fan
-
Usage:
-
Big Space Cooling
-
Packing:
-
Wooden Box
-
WEIGHT:
-
140KG/130KG/125KG/120KG/110KG/85KG
-
Ventilation Fan:
-
Industrial Cooling Ventilation Fans
Products Description
Product Description:
Product Parameters
|
Model Number
|
Diameter(M)
|
Blade number
|
Power(KW)
|
Voltage(V)
|
Max speed(R/Min)
|
Weight(KG)
|
Air volume(M³/H)
|
Max cover Area(M²)
|
blade weight （ piece）
|
|
HD-7300
|
24FT(7.3M)
|
6/8/10
|
1.5
|
110-415
|
55
|
140
|
3500-13500
|
1200
|
7.7
|
|
HD-6100
|
21FT(6.1M)
|
6/8/10
|
1.1/1.5
|
110-415
|
65
|
130
|
3500-13500
|
1100
|
6.5
|
|
HD-5500
|
18FT(5.5M)
|
6/8/10
|
1.1/1.5
|
110-415
|
65
|
125
|
3500-13500
|
1000
|
5.3
|
|
HD-4900
|
16FT(4.9M)
|
6/8/10
|
1.1/1.5
|
110-415
|
75
|
120
|
3500-13500
|
800
|
4.0
|
|
HD-3600
|
12FT(3.6M)
|
6/8/10
|
1.1/1.5
|
110-415
|
90
|
110
|
3500-13500
|
600
|
3.5
|
|
HD-2500
|
8FT(2.5M)
|
6/8/10
|
1.1/1.5
|
110-415
|
100
|
85
|
3500-13500
|
400
|
3.0
|
Main Components
Speed Reduction Motor
◆
Skf-vl enhanced double row deep groove ball bearing originally imported-IE2 new generation energy.
◆ Germany’s top original imported Simrit output shaft dual oil seal design-reduce the possibility of oil seal leakage.
◆
Synthesis of super long life of
shell brand Omala S4 Gear lubricant ,20000 hours maintenance freeand ultra long use-improve the quality of oil products.
shell brand Omala S4 Gear lubricant ,20000 hours maintenance freeand ultra long use-improve the quality of oil products.
◆ Germany’s top original imported Simrit output shaft dual oil seal design-reduce the possibility of oil seal leakage.
◆
80% clients on the market choose our Germany Nord Motor.
Control System
◆
Choose international first-line brand inverter,Danfoss,
Japan Toshiba,or France Schneider
inverter(three brand are optional),more stable and reliable.
◆
Built in filter,reduce external interference,integrated circuit system monitoring fan operation,automatically cut off output in case of failure ,improve product safety factor.
◆
It has the functions of ground fault, over temperature,overload and short circuit protection.
Blade
◆High strength, good toughness, smooth surface, not easy to stain.
◆
Using special high-strength 1.8mm thick 6030 aviation magnesium-aluminum alloy fan blades, natural anodized surface treatment.
◆
There are as many as three sets of reinforcing rib support systems inside the fan blade to enhance the strength of the fan blade, completely avoid the sagging of the fan blade end and the fatigue loss of the fan blade to the connecting components, which further improves the safety performance.
Special high strength 2.0mm thick 6063 aviation aluminum magnesium alloy
Our blades can withstand over 200KG
All our HVLS fans are equipped with accessories and are ready to be installed. We will even provide installing tools with mass orders. The motor is pre installed so electricians will only need to connect the blades to the motor. We also provide videos on how to test dynamic balance and bolt tightness to ensure safety and hassle free installation.
Suitable For Various Structures
Type 1
suitable for ordinary concrete beams.
Type 2
suitable for mounting on vertical concrete surface.
Type 3
suitable for H shaped and L shaped steel structure beam. 8-10mm thick anti sliding splint mounting the steel beam horizontally.
Type 4
suitable for round pipe, square pipe and angle steel. Mounting the pipe using U shaped hoop.
we have various installing methods according to ceiling structure.
Wide Applications
What kind of building environment is suitable for installing hvls fans?
Widely used in
: Factory/Workshop, Warehouse, Railway Station, Bus Station, Waiting Room, Stadium, Airport, Exhibition Hall, Livestock Farm, Hotel, Manufacturing Plant, Food and Beverage Plant, Farm, Restaurant, Retail, Food Store, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies and so on, and with the electricity 380V-420V/220V-240V can be installed.
We have long term cooperations with many companies all over the world，l ooking forward to becoming a partner with you.
