The machine adopts double sleeve structure to enhance the bearing capacity of the equipment, Cantilever hydraulic lifting, easy to
operate. Using ball screw to traverse wire, suitable for different wire diameter with high precision.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
1700
-
Product name:
-
Cantilever Take-up Machine
-
color:
-
customized
-
Hole Diameter:
-
75\150mm
-
Cable Diameter Range:
-
10~60mm
-
Bobbin Weight:
-
4t
-
Line Speed:
-
26.52rpm
-
Take-up Torque:
-
Max 4600 N.M
-
Main Parts Bearing:
-
NSK
-
Power Supply:
-
3 Phase 415
-
Lifting Mode:
-
Electro-Hydraulic Lifting Mode
Quick Details
-
Use:
-
WINDING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Model Number:
-
1700
-
Product name:
-
Cantilever Take-up Machine
-
color:
-
customized
-
Hole Diameter:
-
75\150mm
-
Cable Diameter Range:
-
10~60mm
-
Bobbin Weight:
-
4t
-
Line Speed:
-
26.52rpm
-
Take-up Torque:
-
Max 4600 N.M
-
Main Parts Bearing:
-
NSK
-
Power Supply:
-
3 Phase 415
-
Lifting Mode:
-
Electro-Hydraulic Lifting Mode

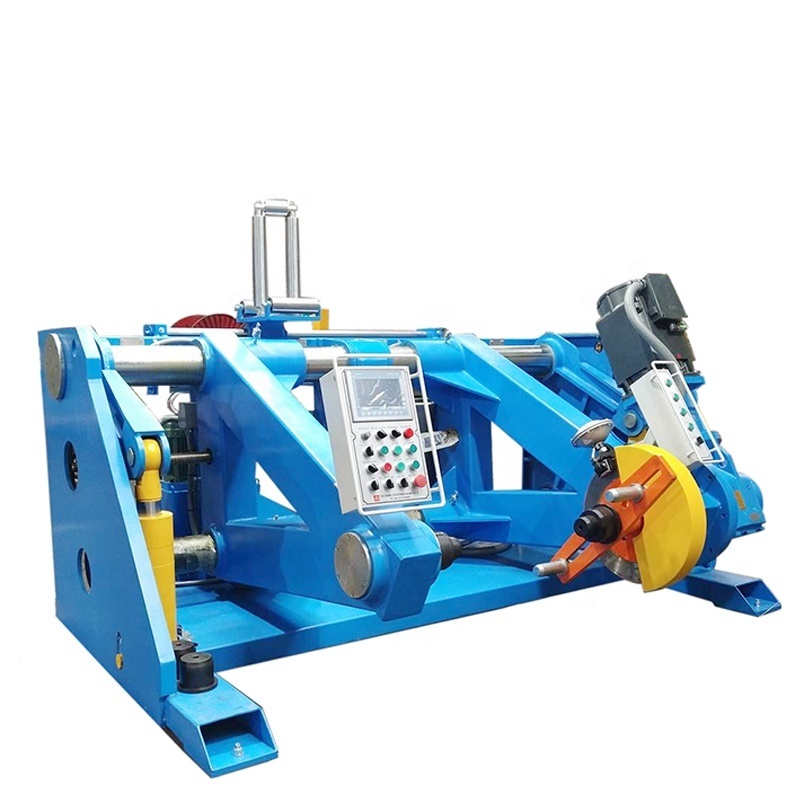

Alpha 1700 Hydraulic Cantilever Take-up Machine with Traverse for Cable Steel Drum Winding
Product Description
1700 Hydraulic Cantilever Type Take-up with traverse
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Usage
|
WINDING
|
|
Apply Bobbin Size
|
800-1700mm
|
|
Bobbin Width
|
500-1200mm
|
|
Adaptor Hole Diameter
|
75\150mm
|
|
Applied Cable Diameter Range
|
10~60mm
|
|
Bobbin Weight
|
4t
|
|
Line Speed
|
26.52rpm
|
|
Take-up Torque
|
Max 4600 N.M
|
|
Main Parts Bearing
|
NSK
|
|
Power Supply
|
3 Phase 415
|
|
Lifting Mode
|
Electro-Hydraulic Lifting Mode
|
* Lifting mode: adopt electro-hydraulic lifting mode
* Bobbin Clamping mode: 400W deceleration motor clamping
* Take-up model: 15kw 1500rpm Siemens AC servo motor drive, Speed and tension control can be achieved
* Take-up torque: Max ~4600 N.m
* The wire traversing adopts AC servo motor drive, ball screw traversing wire, pitch: 0 ~ 40mm, and sychronization with Take-up.
* The device contains pneumatic brakes that can be used to brake rapidly during downtime.
* Siemens S7-1200 PLC control, 7-inch touch screen control wiring traversig, wiring pitch can be set on the touch screen
* Main parts bearing use NSK
* Bobbin Clamping mode: 400W deceleration motor clamping
* Take-up model: 15kw 1500rpm Siemens AC servo motor drive, Speed and tension control can be achieved
* Take-up torque: Max ~4600 N.m
* The wire traversing adopts AC servo motor drive, ball screw traversing wire, pitch: 0 ~ 40mm, and sychronization with Take-up.
* The device contains pneumatic brakes that can be used to brake rapidly during downtime.
* Siemens S7-1200 PLC control, 7-inch touch screen control wiring traversig, wiring pitch can be set on the touch screen
* Main parts bearing use NSK
Technical Parameters
Related Machine
Gantry Rail Walk Type Pay-off And Take-up
1.The machine frame adopts high quality rectangular steel tube and steel plate bending welded together. Beam with two large beams
connected by structure, perfect appearacne, good rigidity, high strength.
2. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.
3. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.
connected by structure, perfect appearacne, good rigidity, high strength.
2. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.
3. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.
Cable Making Extruder
1.It is Suitable for optical cable outer sheath and core strengthening comprehensive production, can also be used for inner
protection layer production
2.PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
3.PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel- plastic compound belt,PE composite outer sheath.
4.Parallel double steel wire tube bundling type optic-fibet cable.
protection layer production
2.PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
3.PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel- plastic compound belt,PE composite outer sheath.
4.Parallel double steel wire tube bundling type optic-fibet cable.
Cable wire steel wire Puller with Speed regulative machine
1. The whole frame is made of a high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower
helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of
Z4 DC motor or variable-frequency motor for users to choose.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower
helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of
Z4 DC motor or variable-frequency motor for users to choose.
Customer Visiting & Feedbacks
Packing & Delivery
Stanard seaworthy package for cable wire diameter measurement
