Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
ARGUS
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ARGUS, OEM
-
Weight (KG):
-
750 KG
-
Marking Area:
-
1500*1500mm
-
Product name:
-
3D Dynamic CO2 Laser Marking Machine
-
Laser source:
-
Coherent R.F. Metal Laser Source
-
Marking area:
-
400 x 400mm to 1500 x 1500mm
-
Marking Speed:
-
7000mm/s
-
Lifespan of laser source:
-
20,000 hours
-
Cooling way:
-
water cooling
-
Including:
-
host machine, water chiller, exhausting system
-
laser power:
-
100W 150W 250W 350W 500W
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Working Accuracy:
-
0.01MM
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
ARGUS
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ARGUS, OEM
-
Weight (KG):
-
750 KG
-
Marking Area:
-
1500*1500mm
-
Product name:
-
3D Dynamic CO2 Laser Marking Machine
-
Laser source:
-
Coherent R.F. Metal Laser Source
-
Marking area:
-
400 x 400mm to 1500 x 1500mm
-
Marking Speed:
-
7000mm/s
-
Lifespan of laser source:
-
20,000 hours
-
Cooling way:
-
water cooling
-
Including:
-
host machine, water chiller, exhausting system
-
laser power:
-
100W 150W 250W 350W 500W
-
After-sales Service Provided:
-
Field installation, commissioning and training
|
Model Type
|
SCM3000
|
|
|
|
Max.Marking Area
|
1500*1500mm
|
|
|
|
Worktable
|
Marble worktable
|
|
|
|
Laser power
|
250watts/350watts
|
|
|
|
Power Consumption
|
≤7kWh
|
|
|
|
Application material
|
Non-metal material
|
|
|
|
Laser Source
|
Coherent CO2 metal RF Laser Tube
|
|
|
|
Laser Wavelength
|
10.64μm
|
|
|
|
Laser Frequency
|
20kHz~200kHz
|
|
|
|
Galvo Scanner
|
CTI America
|
|
|
|
Repetition Precision
|
0.01mm
|
|
|
|
Min.Letter Size
|
0.3mm
|
|
|
|
System Support
|
Windows
|
|
|
|
Output Compatibility
|
Auto CAD, Photoshop, CorelDRAW etc
|
|
|
|
File Formats
|
PLT, DXP, BMP, JPG, AI etc
|
|
|
|
Software Character
|
Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing ,cutting
|
|
|
|
Power Supply
|
110V~380V/50Hz~60Hz
|
|
|
|
Cooling Way
|
Circulation of Water Cooling
|
|
|
|
Warranty of core components
|
1 Year
|
|
|
|
Core Components
|
Motor, Other, Gear, PLC
|
|
|
|
Life Span
|
20000 hours (at least 4~5 years)
|
|
|
|
Cooling Way
|
Circulation of Water Cooling
|
|
|
|
Laser Outpower
|
150/250/350W
|
|
|
|
Marking Speed
|
<20000mm/s
|
|
|
|
Certification
|
ISO,CE
|
|
|
Top 1
Denim jeans laser printing,engraving,washing,whisker machine

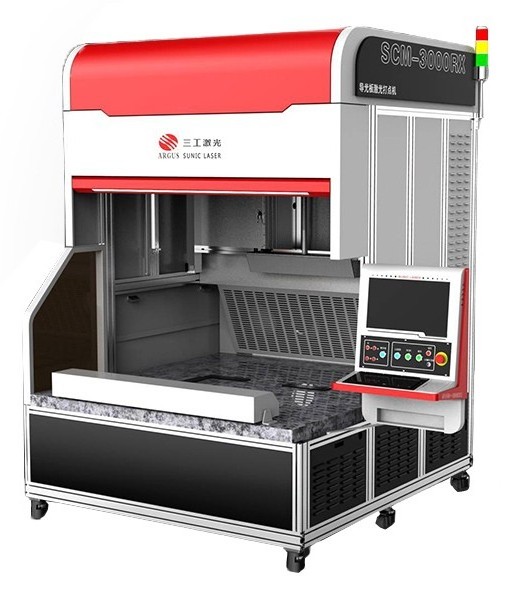

The SCM3000 3D Dynamic CO2 Laser Marking Machine is specialized designed for denim Laser Marking Application, which is widely used in the jeans producing, and it is also the most popular model in the market.It is the outcomes of SUNIC Laser’s technical expertise and experience in marking and engraving denim for jeans applications exploiting proprietary laser technology to produce washing mark, whisker result on denim up to 1500×1500 mm working size. This process is much more productive in comparison to other traditional technologies and other lasers, even with the maximum quality.
Main Features
The denim processed by Laser Engraving display the excellent features of quick producing speed, no need washing process,Environment friendly, easy customized design, and permanent result.Technical Parameters
