- Product Details
- {{item.text}}
Quick Details
-
Output Power:
-
7kW-22kW
-
Product name:
-

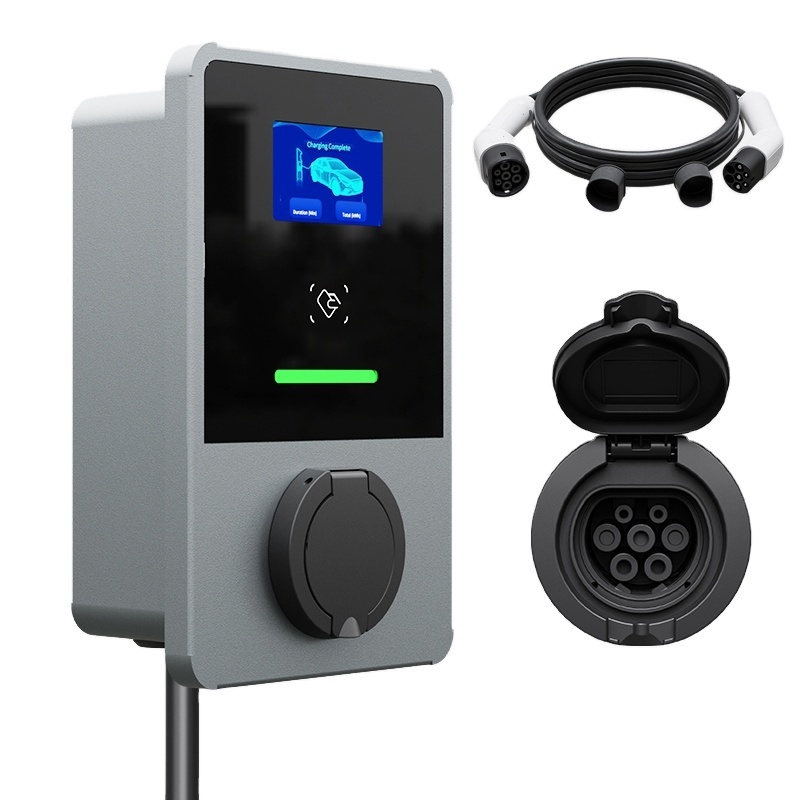

Wallbox Ev Charger
-
Application:
-
Electric Vehicle Charging
-
Cable Length:
-
5M/16.4ft (Optional)
-
Warranty:
-
2 Years
-
Certificate:
-
CE , UKCA
-
Output voltage:
-
230Vac±10%&400Vac±10%
-
Rated Current:
-
32A,16A,32A
-
Type:
-
Home EV Charger
-
IP Grade:
-
IK08 & IP65
-
RCD:
-
TypeA + DC 6mA
Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
eFlex 100E
-
Brand Name:
-
GoPRO
-
Output Power:
-
7kW-22kW
-
Product name:
-
Wallbox Ev Charger
-
Application:
-
Electric Vehicle Charging
-
Cable Length:
-
5M/16.4ft (Optional)
-
Warranty:
-
2 Years
-
Certificate:
-
CE , UKCA
-
Output voltage:
-
230Vac±10%&400Vac±10%
-
Rated Current:
-
32A,16A,32A
-
Type:
-
Home EV Charger
-
IP Grade:
-
IK08 & IP65
-
RCD:
-
TypeA + DC 6mA
Product Overview
Product Paramenters
|
Regional Standard
|
|
|
||
|
Regional Standard
|
EU Standard
|
NA Standard
|
||
|
Model Name
|
eHome 100A
|
eFlex 100A
|
||
|
Voltage
|
230Vac±10%＆400Vac±10%
|
208Vac±15%; 240Vac±15%
|
||
|
|
Single phase＆Three phase
|
Single phase
|
||
|
|
L/N/PE＆L1/L2/L3/N/PE
|
L1/N+PE, L1/L2/PE
|
||
|
Power / Amperage
|
7kW / 32A(Single phase)
|
7kW / 32A
|
||
|
|
11kW / 16A(Three phase)
|
10kW / 40A
|
||
|
|
22kW / 32A(Three phase)
|
11.5kW / 48A
|
||
|
Frequency
|
50-60Hz
|
50-60Hz
|
||
|
Function
|
|
|
||
|
Display
|
4.3in LCD display
|
N/A
|
||
|
User Authentication
|
RFID (ISO 14443)
|
RFID (ISO 14443)
|
||
|
Network
|
LAN Standard - Wi-Fi ；
Ethernet ＆ WAN Standard - 4G cellular （Optional) |
LAN Standard - Wi-Fi ；
Ethernet ＆ WAN Standard - 4G cellular （Optional) |
||
|
Connectivity
|
OCPP 1.6 J (Optional)
|
OCPP 1.6 J （Optional)
|
||
|
Network Type
|
TN，TT，IT
|
TN，TT，IT
|
||
|
Protection & Standard
|
|
|
||
|
Certificate
|
CE 、UKCA
|
ETL
|
||
|
Charging Interface
|
IEC 62196-2 , Type 2 Plug
|
SAE J1772 , Type 1 Plug
|
||
|
Safety Compliance
|
IEC 61851-1 ,IEC 61851-21-2
|
UL2594 , UL2231-1/-2
|
||
|
RCD
|
TypeA + DC 6mA
|
CCID 20
|
||
|
Multiple Protection
|
UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection，PEN protection
|
UVP , OVP , RCD , SPD , Ground Fault Protection , OCP , OTP , Control Pilot Fault Protection
|
||
|
Environmental
|
|
|
||
|
Operating Temperature
|
-30°C ~ 50°C
|
-22°F to 122°F
|
||
|
Indoor / Outdoor
|
IK08 & IP65
|
IK08, Type 3 enclosure
|
||
|
Relative Humidity
|
Up to 95% non-condensing
|
Up to 95% non-condensing
|
||
|
Mechanical
|
|
|
||
|
Dimension (WxDxH)
|
320x210x120 mm
|
320x210x120 mm
|
||
|
Weight
|
3.5kg
|
3.5kg
|
||
|
Cable Length
|
5m
|
18ft (5m)
|
||
Successful Project
Why Choose Us
Certifications
Exhibition
FAQ
Q1: The main difference between AC Charger and DC Charger?
A1: The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
A1: The difference between AC charging and DC charging is the location where the AC power gets converted; inside or outside the car.Unlike AC chargers, a DC charger has the converter inside the charger itself. That means it can feed power directly to the car's battery and doesn't need the on-board charger to convert it.
Q2: The differences of global DC fast charging standards?
A2: CCS-1: DC fast charging standard for North America.
CCS-2: DC fast charging standard for Europe.
CHAdeMO: DC fast charging standard for Japan.
GB/T: DC fast charging standard for China.
Q3: Are you a factory or a trading company?
A3: We are a manufacturer, welcome to visit our factory at any time!
A3: We are a manufacturer, welcome to visit our factory at any time!
Q4:Can I customize the box and packing way?
A4: We can provide related services under the condition of meeting the MOQ.
A4: We can provide related services under the condition of meeting the MOQ.
Q5: How about your delivery time?
A5: Generally, it will take 3 to 30 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q6: Does the product meet local customs clearance standards?
A6: Our products have been sold to all over the world in large quantities, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements. If you have any questions about customs clearance, please contact us intime, we can provide timely and effective assistance.
A6: Our products have been sold to all over the world in large quantities, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements. If you have any questions about customs clearance, please contact us intime, we can provide timely and effective assistance.
