Quick Details
-
Brand Name:
-
WPDJ
-
Model Number:
-
EG-280S-2 75KW 2975RPM
-
Frequency:
-
50HZ
-
Motor Center Height:
-
H280(mm)
-
Protection Degree:
-
IP54/IP55
-
Cooling Method:
-
IC411
-
Insulation Class:
-
F Class
-
Mounting Type:
-
IMB3 / IMB5 / IMB35 /IMV1
-
Gereral Use 01:
-
Ordinary industry , blower, pump, rolling mill machine,
-
Gereral Use 02:
-
Driving equipments, mining, metallurgy, printing, paper making, etc
-
Product Name:
-
EG-280S-2 75KW 100HP 380V 400V 2975RPM brushless ac motor
-
Keywords:
-
EG-280S-2 75KW 100HP 380V 400V 2975RPM brushless ac motor
-
Certification:
-
CCC
Quick Details
-
AC Voltage:
-
380 / 660 V
-
Warranty:
-
12 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WPDJ
-
Model Number:
-
EG-280S-2 75KW 2975RPM
-
Frequency:
-
50HZ
-
Motor Center Height:
-
H280(mm)
-
Protection Degree:
-
IP54/IP55
-
Cooling Method:
-
IC411
-
Insulation Class:
-
F Class
-
Mounting Type:
-
IMB3 / IMB5 / IMB35 /IMV1
-
Gereral Use 01:
-
Ordinary industry , blower, pump, rolling mill machine,
-
Gereral Use 02:
-
Driving equipments, mining, metallurgy, printing, paper making, etc
-
Product Name:
-
EG-280S-2 75KW 100HP 380V 400V 2975RPM brushless ac motor
-
Keywords:
-
EG-280S-2 75KW 100HP 380V 400V 2975RPM brushless ac motor
-
Certification:
-
CCC

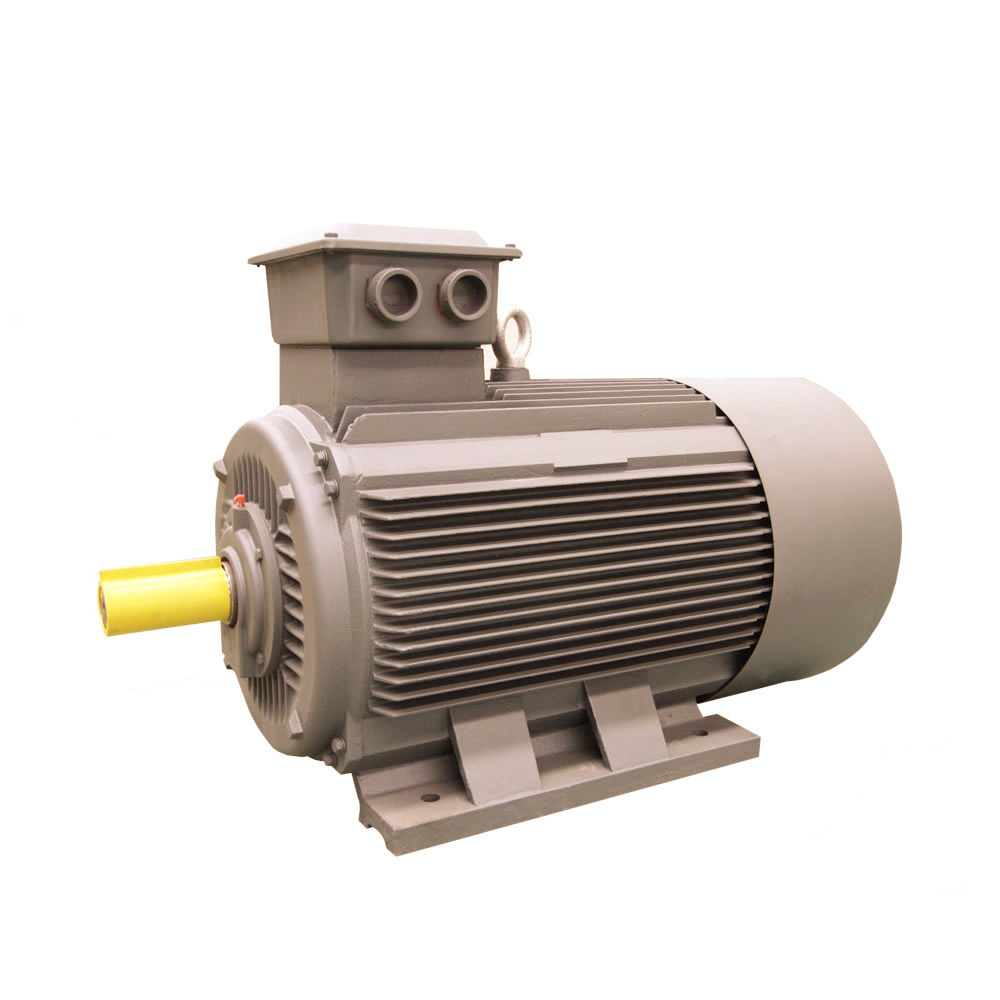

EG Series Cast Iron Three Phase Asynchronous Induction Motor
| Power: | 0.75kw - 315KW |
| Voltage: | 380V/400V |
| Speed: | 750RPM/1000RPM/1500RPM/3000RPM |
| Protection Degree: | IP54/IP55 |
| Cooling method: | IC411 |
| Insulation Class: | F |
| Duty: | S1 |
| Package: | Export Wooden Package |
| Payment: | 30% in advance, balance by T/T or L/C at sight |
EG-280S-2, 75KW, 380V/400V, 2975r/min, IC411, IP54/IP55 , F Insulation
EG series three-plese industrial standard asynchronous motors are specifically designed in accordance with IEC publications and national standard specifications as CEI,DIN and VDE.Technical Description .
The technical design of the motors si in accordance with IEC 60034-1 and IEC 60034-72.
It features it's high efficiency, energy saving, low noise, low vibration, light weight and reliability of running.
It is widely used on the mechanical equipment in common place where there are no inflammable, explosive and corrosive gases and in place with no special requirements, suchas the machine tools for cutting metals, exhaust fan, compressors, etc.
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15 ℃ .
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃ .
4. Operation Mode(duty): S1.
Bearing
Low noise bearing are used.
Mounting
Frame Size(H80-H160): IM B3, B5, B35, V1, B14, B34, V3,V5, V6, V15, etc.
Frame Size(H180-H280): IM B3, B5, B35, V1.
Frame Size(H315-H355): IM B3, B35, V1
