Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Advance
-
Model Number:
-
ODM/OEM
-
Product Name:
-

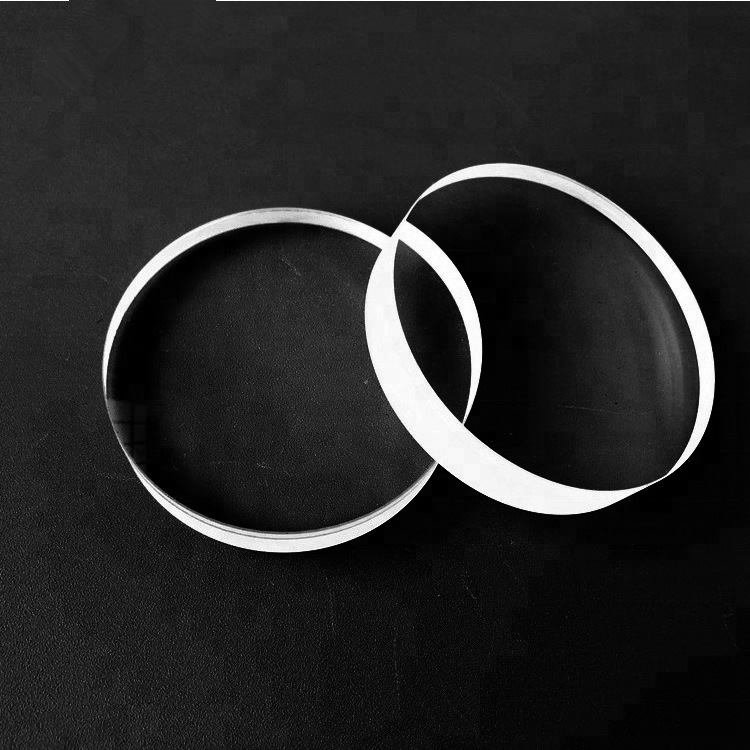

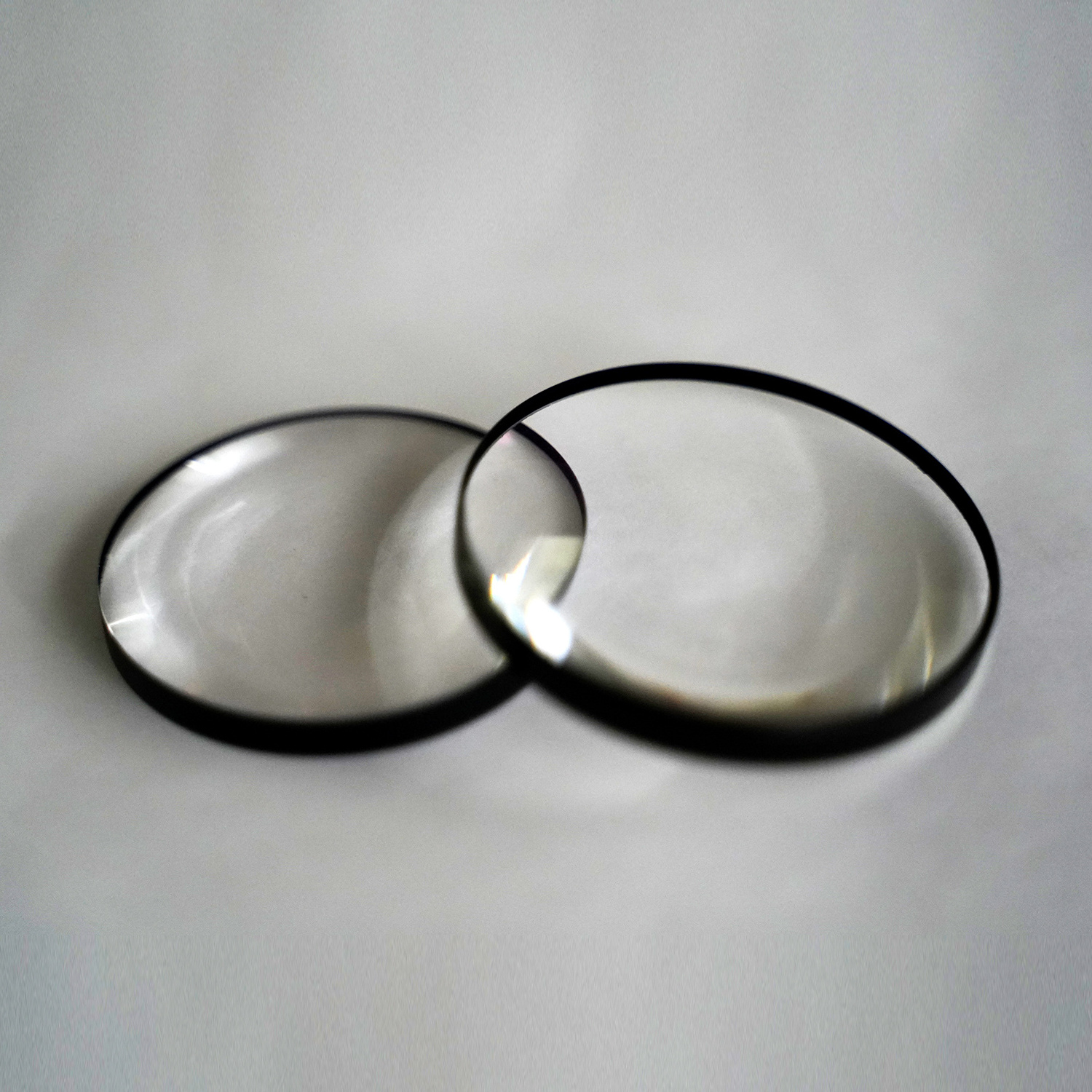

Achromatic Lens
-
Materials:
-
BK7, Quartz, Infrared, Sapphire, Si, ZnSe, CaF2, etc.
-
Diameter:
-
1.5-300mm
-
Radius:
-
>0.8mm
-
Focal Length:
-
-30000mm-30000mm
-
Surface Accuracy:
-
N=1-3
-
Decenter:
-
3"-1'
-
Surface Quality:
-
10/5-60/40
-
Coating:
-
Coating Upon Request
-
Application Area:
-
Imaging, Lighting, Laser, etc.
Quick Details
-
Use:
-
Optical
-
Structure:
-
Plano-convex
-
Shape:
-
Aspheric
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Advance
-
Model Number:
-
ODM/OEM
-
Product Name:
-
Achromatic Lens
-
Materials:
-
BK7, Quartz, Infrared, Sapphire, Si, ZnSe, CaF2, etc.
-
Diameter:
-
1.5-300mm
-
Radius:
-
>0.8mm
-
Focal Length:
-
-30000mm-30000mm
-
Surface Accuracy:
-
N=1-3
-
Decenter:
-
3"-1'
-
Surface Quality:
-
10/5-60/40
-
Coating:
-
Coating Upon Request
-
Application Area:
-
Imaging, Lighting, Laser, etc.
Specification
|
Materials
|
BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
|
|
Diameter
|
1.5~300mm
|
|
Radius
|
R0.8mm-∞
|
|
Focal length
|
-30000mm~+30000mm
|
|
Center thickness tolerance
|
+/-0.01mm
|
|
Diameter tolerance
|
+/-0.005mm
|
|
Focal length tolerance
|
+/-1%
|
|
Surface accuracy
|
N=1~3
|
|
Irregularity
|
ΔN=0.1~0.5
|
|
Decenter
|
3''~1''
|
|
Surface quality
|
10/5~60/40
|
|
Coating
|
Upon request
|
|
Application area
|
Imaging,Lighting,Laser etc
|
