Quick Details
-
Dimension (L*W*H):
-
86*52*34cm
-
Weight:
-
27kg
-
System Type:
-
Vertical
-
Nominal Voltage:
-
48V/51.2V
-
Application:
-
Home Energy Storage Battery
-
Sample/OEM/ODM:
-
Acceptable
-
Battery Pack Type:
-
Stackable
-
Material:
-
iron
-
Communication:
-
CANBUS/RS485
-
BMS:
-
48V 16S 200A BMS
-
230Ah size:
-
685*450*270 mm
-
280Ah size:
-
825*450*270 mm
Quick Details
-
Model Number:
-
16S 48V Battery pack
-
Brand Name:
-
Poweron
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
86*52*34cm
-
Weight:
-
27kg
-
System Type:
-
Vertical
-
Nominal Voltage:
-
48V/51.2V
-
Application:
-
Home Energy Storage Battery
-
Sample/OEM/ODM:
-
Acceptable
-
Battery Pack Type:
-
Stackable
-
Material:
-
iron
-
Communication:
-
CANBUS/RS485
-
BMS:
-
48V 16S 200A BMS
-
230Ah size:
-
685*450*270 mm
-
280Ah size:
-
825*450*270 mm

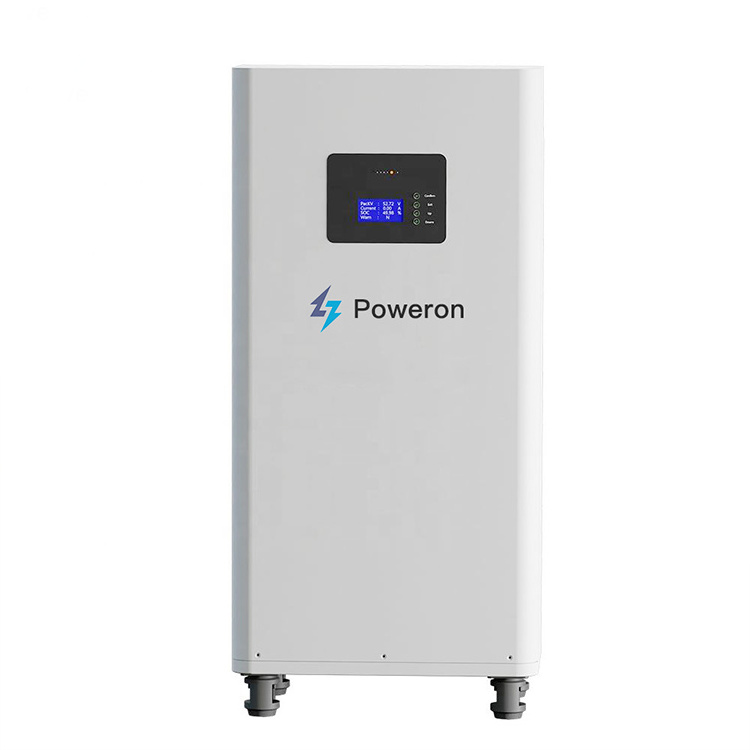

Product Description
Product Specific
| Basic Parameters | Poweron 280 |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (Ah) | 280Ah @0.5C discharge current 25±2℃ |
| Nominal Power (Wh) | 14.3KWh |
| Dimension (mm) | 750*440*251mm |
| Weight (Kg) | 112±5KG |
| Discharge Cut-off Voltage (V) | 41.6V |
| Charge Voltage (V) | 57.6V |
| Continuously Charge/Discharge Current (A) | 140A @25±2℃ (Recommended) |
| Max Standard charge/discharge Current (A) | 200A @25±2℃ |
| Working Temperature | 0~50℃(Charge) |
| -10~50℃(Discharge) | |
| -20~55℃(Storage) | |
| SOC Range | 5%-100% |
| Recommended SOC Range | 15-95% |
| Communication Interface | CAN (Default)or RS485 |
| Humidity | 10% - 85% |
| IP level | IP 20 |
Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * M4 * 8mm (PCB board fix)
9 * M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * M5 * 10mm (Latch fix)
16 * Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Socket Countersunk M4 * 10mm (Handle and battery case)
4 * M6 * 14mm + Washer + Spring Set(foot fix)
5 * M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * M5 * 10mm + Washer
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * M4 * 8mm (PCB board fix)
9 * M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * M5 * 10mm (Latch fix)
16 * Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Socket Countersunk M4 * 10mm (Handle and battery case)
4 * M6 * 14mm + Washer + Spring Set(foot fix)
5 * M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * M5 * 10mm + Washer
