Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2300x2200x2300
-
Power (kW):
-
4
-
Weight (KG):
-
2800 KG
-
Max. length of ram:
-
300mm
-
Ram adjustment stroke:
-
300mm
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
MACH
-
Marketing Type:
-
New Product 2023
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2300x2200x2300
-
Power (kW):
-
4
-
Weight (KG):
-
2800 KG
-
Max. length of ram:
-
300mm
-
Ram adjustment stroke:
-
300mm

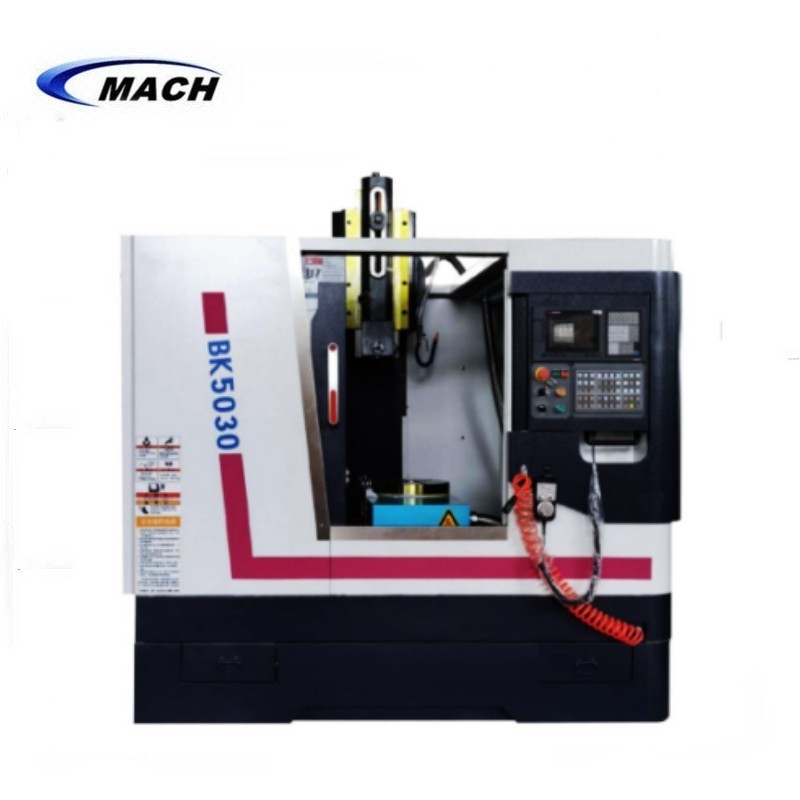

CNC Slotting Machine Model: BK5030
1. Brief Introduction:
BK5030 CNC slotting machine has the functions of slotting plane, forming surface and keyway. It is a cutting machine tool that realizes slotting through the control of CNC system.
The servo motor realizes high-torque transmission through deceleration. The X and Y feeds are servo-controlled to realize stepless speed regulation. The X-direction ball screw is directly connected to the motor, and the Y-direction ball screw is connected to the motor. The motor is conveyed by a timing belt.
CNC dividing head or CNC rotary table can be configured according to user needs. The machine tool is powerful and can process keyways in different angles.
This machine tool has high power, good rigidity, large precision reserves, high cost performance and long service life. It is an ideal equipment for processing keyways of various materials.
2. Specification of CNC Slotting Machine B5030
|
The maximum length of ram |
350mm |
|
Ram adjustment stroke |
200mm |
|
Number of ram movements |
0-70 n/min |
|
Working table size |
750 x 510mm |
|
Table travel ( X, Y ) |
400 x 420mm |
|
The distance between the axis of the tool bearing hole and the forearm of the column |
625mm |
|
The distance between the end face of the cutter head support hole and the table |
700mm |
|
X direction motor torque |
10 N.M |
|
Y direction motor torque |
15 N.M |
|
Fast-moving |
X axis 5m/min |
|
Y axis 5m/min |
|
|
Ball screw ( X) |
FFZD3205-3/P4 |
|
Ball screw ( Y) |
FFZD3205-3/P4 |
|
Main motor power |
5.5kw |
|
Machine weight |
3400kgs |
|
Package dimensions |
2600x2300x2500mm |
3. Main structural features:
1. The transmission method is synchronous belt transmission,
with low noise and high transmission power.
2. The slotting main motor is a servo motor.
3. The Y-axis lead screw nut type adopts double nut preloading.
4. The perpendicularity between Z direction and Y axis is ≤0.02mm.
We can also manufacture CNC Slotting Machine Models: BK5032 and BK5035.
We export CNC slotting machine in large quantities to our customers in different countries.
Our CNC Slotting machines are very popular with customers by its good quality and competitive prices.
