Quick Details
-
Core Components:
-
Compressor
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SURE
-
Dimension(L*W*H):
-
6600mm*4000mm*2900mm
-
Weight:
-
3000 KG
-
Warranty:
-
12 Months
-
Belt Material:
-
SUS304 Stainless steel
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Voltage:
-
Customized
-
Power:
-
30KW
-
Cooling Capacity:
-
100~1500kg per hour
-
Core Components:
-
Compressor
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
SURE
-
Dimension(L*W*H):
-
6600mm*4000mm*2900mm
-
Weight:
-
3000 KG
-
Warranty:
-
12 Months
-
Belt Material:
-
SUS304 Stainless steel
-
Certification:
-
CE
-
Marketing Type:
-
Ordinary Product

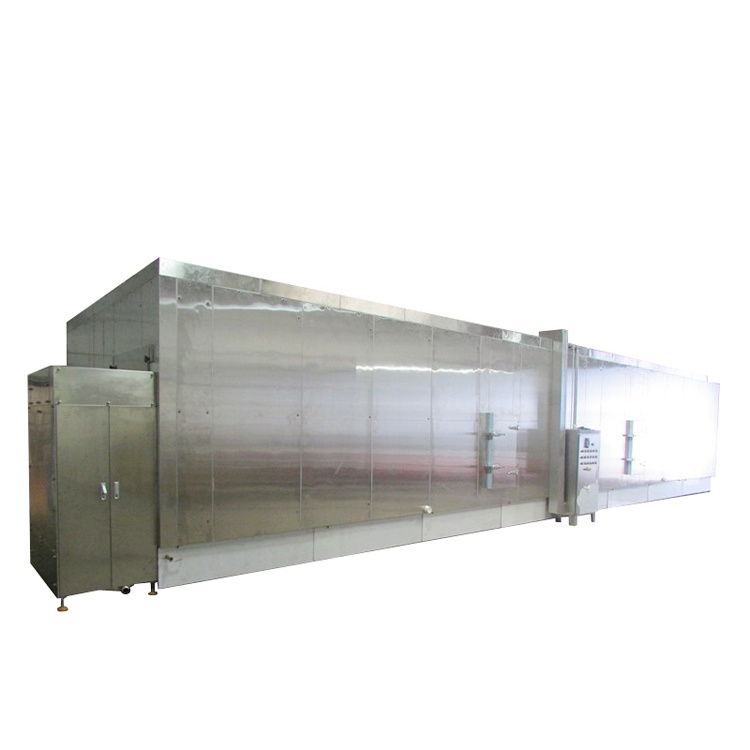

Fluidized IQF Tunnel Freezer Applications:
Fluidized IQF Tunnel freezer is mostly used for fruits & vegetables IQF freezing and small size seafood IQF freezing, like small fish, small shrimp...
|
NO.
|
ITEM
|
CONTENT
|
|
1
|
Equipment Type
|
IQF Tunnel Freezer TF500A
|
|
2
|
Products
|
Fruits and vegetables
|
|
4
|
Inlet Temperature
|
+15 degree Celsius
|
|
5
|
Outlet Core Temperature
|
-18 degree Celsius
|
|
7
|
Overall Dimension
|
6600mm*4000mm*2900mm L*W*H
|
|
13
|
Retention Time
|
Adjustable
|
Fluidized IQF Tunnel Freezer Main Structure:
1.Stainless Steel Conveyor Belt:
We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.
2.Insulation Panels:
PUF sandwich panels, 150mm thick, 0.8mm stainless steel sheets outside
3.Access Door:
The doors we chosen are specially used in low temperature environment and equipped with frame heating system for each.
4.Driving System:
Speed reducer + Variable speed controller
5.Evaporator and Fan:
Both the tubes and fins of evaporator are made of aluminum alloy. The large fins and different fin pitches can assure the perfect effect of heat exchange.
Centrifugal fans with big air volume, 7.5KW for each
6.Water Discharging Design:
Full welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes
7.Inlet & Outlet device:
Both the Inlet & Outlet device are made of food grade stainless steel.
8.Electric Controlling System:
We adopt Schneider or Siemens electric components
