Quick Details
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
S series split casing centrifugal pump
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
25 hp-3300 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
6-18inch
-
Power:
-
22kw-2240 kw, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Material:
-
Cast Iron/Stainless Steel
-
Warranty:
-
One Year
-
Type:
-
S series single-stage double suction split casing centrifugal pump
-
Product name:
-
diesel water pump china water pump price
-
Name:
-
diesel water pump china water pump price
-
Color:
-
Customer Specifications
-
Fuel:
-
Electric
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure or Low Pressure
-
Voltage:
-
380V/415V/660V/1140V
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
S series split casing centrifugal pump
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
25 hp-3300 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
6-18inch
-
Power:
-
22kw-2240 kw, Electric
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Material:
-
Cast Iron/Stainless Steel
-
Warranty:
-
One Year
-
Type:
-
S series single-stage double suction split casing centrifugal pump
-
Product name:
-
diesel water pump china water pump price
-
Name:
-
diesel water pump china water pump price
-
Color:
-
Customer Specifications
-
Fuel:
-
Electric
|
|
Specification
|
|
|
|
Inlet Diameter
|
150-1400mm
|
|
|
|
Capacity Q
|
108-27000
m
3
/h
|
|
|
|
Head H
|
8.6-140m
|
|
|
|
Power P
|
18.5-2500KW
|
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
|
Scope of supply
|
Pump,Motor,Coupling,Base,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
|
|
|
|
Certification
|
ISO 9001
|
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
|

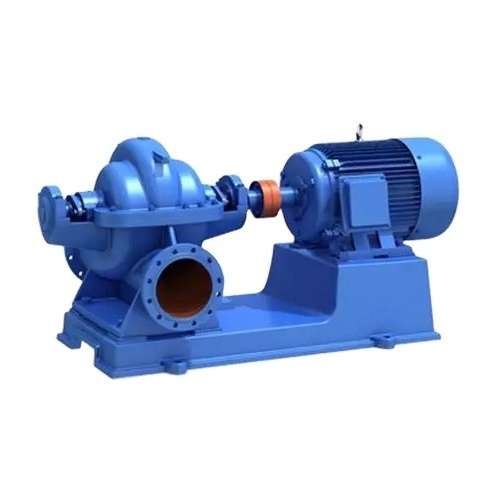

The S type pump is a single stage double suction horizontal centrifugal clean water pump
for conveying clean water of not more than 80 ° C or other liquids with chemical properties similar to water. It is used in factories, mines, metallurgy, cities, power stations, water supply and drainage, and various water conservancy projects. The product has the characteristics of high efficiency, energy saving, excellent performance and high standardization. It can be designed and manufactured as heat system circulating pump of 80 °C-130 °C as well according to user’s actual requirements.The S
series single stage, double suction split case centrifugal pumps with a diameter of 700MM-1400MM can pump river water and other high turbidity water.
for conveying clean water of not more than 80 ° C or other liquids with chemical properties similar to water. It is used in factories, mines, metallurgy, cities, power stations, water supply and drainage, and various water conservancy projects. The product has the characteristics of high efficiency, energy saving, excellent performance and high standardization. It can be designed and manufactured as heat system circulating pump of 80 °C-130 °C as well according to user’s actual requirements.The S
series single stage, double suction split case centrifugal pumps with a diameter of 700MM-1400MM can pump river water and other high turbidity water.
The pumps mean that:For example150S78A
150-----The inlet diameter of pump is 150mm
S--------Single stage double suction centrifugal pump
78 ------Head(m)
A -------The impeller is cutted for the first time
150-----The inlet diameter of pump is 150mm
S--------Single stage double suction centrifugal pump
78 ------Head(m)
A -------The impeller is cutted for the first time
|
Model
|
Inlet
(mm)
|
Capacity
(m
3
/h)
|
Head
(m)
|
Power
(KW)
|
Speed
(rpm)
|
|
150S
|
150
|
108-220
|
32-84
|
22-55
|
2950
|
|
200S
|
200
|
180-351
|
31-103
|
37-110
|
2950
|
|
250S
|
250
|
320-622
|
8.6-71
|
18.5-160
|
1450
|
|
300S
|
300
|
504-972
|
10-93
|
30-315
|
1450
|
|
350S
|
350
|
745-1260
|
10-140
|
55-630
|
1450
|
|
500S
|
500
|
1400-3240
|
10-114
|
130-800
|
970
|
|
600S
|
600
|
2330-3960
|
18-75
|
185-850
|
970
|
|
700S
|
700
|
2736-4800
|
43-100
|
630/1600
|
730/960
|
|
800S
|
800
|
4788-6800
|
24-89
|
625-2000
|
585/600/730/750
|
|
1000S
|
1000
|
6700-10000
|
17.5-52.5
|
630-1600
|
585
|
|
1200S
|
1200
|
5800-12960
|
18.5-60.5
|
710-2500
|
485/500/600/750
|
|
1400S
|
1400
|
13580-27000
|
14-25
|
800-2000
|
300/375
|
Single stage irrigation double suction split case centrifugal water pump
.Mainly used in water supply plants, air conditioning circulating water,heating network systems, building water supply, irrigation, drainage pumping stations, power plants, industrial water supply systems, fire protection systems, shipbuilding industry, mine water supply and drainage, etc.
Single stage irrigation double suction split case centrifugal water pump.
The main components of the pump are pump body, pump cover, impeller, shaft, double suction seal ring, shaft sleeve and bearing body.
1) The pump body and the pump cover are made of cast iron, which together form the working chamber of the impeller. There are pipe screw holes for the pressure gauge and vacuum gauge on the inlet and outlet flanges of the pump body. At the lowest point of the pipe diameter, there is a pipe screw hole for discharging water.
2) Double-side inflow impeller,its shape is symmetrical, and it is tested by static balance at the factory.
3) Bearing: The structure of this series of pumps adopts rolling bearing (caliber 150mm-500mm) and is lubricated with butter.
4) Shaft seal: The shaft seal of the pump is composed of packing chamber, packing ring, packing gland, packing sleeve, packing and shaft sleeve.
5) Pump with caliber ≥350, water filter is mounted at the end of the suction pipe.Before start up the pump,use a vacuum pump to draw the water. Therefore, two sets of exhaust pipes are installed in the upper part of the pump cover, and a small check valve is connected in series in the pipe. A small check valve is used to prevent high pressure water from flowing back into the low pressure zone during normal pump operation.
1) The pump body and the pump cover are made of cast iron, which together form the working chamber of the impeller. There are pipe screw holes for the pressure gauge and vacuum gauge on the inlet and outlet flanges of the pump body. At the lowest point of the pipe diameter, there is a pipe screw hole for discharging water.
2) Double-side inflow impeller,its shape is symmetrical, and it is tested by static balance at the factory.
3) Bearing: The structure of this series of pumps adopts rolling bearing (caliber 150mm-500mm) and is lubricated with butter.
4) Shaft seal: The shaft seal of the pump is composed of packing chamber, packing ring, packing gland, packing sleeve, packing and shaft sleeve.
5) Pump with caliber ≥350, water filter is mounted at the end of the suction pipe.Before start up the pump,use a vacuum pump to draw the water. Therefore, two sets of exhaust pipes are installed in the upper part of the pump cover, and a small check valve is connected in series in the pipe. A small check valve is used to prevent high pressure water from flowing back into the low pressure zone during normal pump operation.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the capacity and head ?The capacity and head range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price, then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the capacity and head ?The capacity and head range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price, then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
