Quick Details
-
Voltage:
-
Clients' Local Voltage
-
Dimension(L*W*H):
-
3200x2200x2170mm
-
Weight:
-
2200 kg
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-

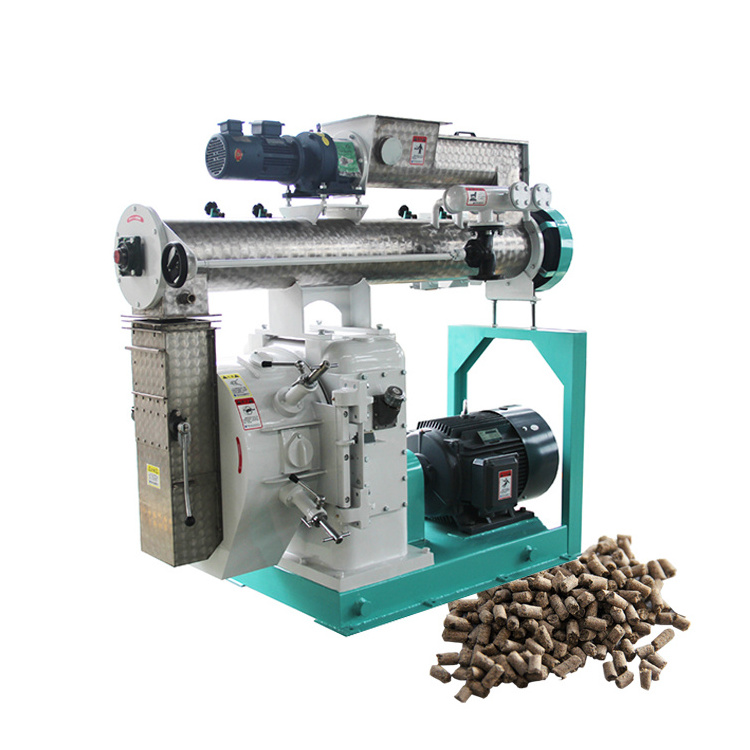

Cattle Feed Pellet Granulator Making Machine
-
Item name:
-
cattle feed production
-
Inner diameter of ring die:
-
350mm
-
Application:
-
Livestock Farm/Poultry farm
-
Function:
-
Producing Animal Feeds Pellets
-
Raw material:
-
Palm Kernel Expeller/Cake
-
Motor:
-
Siemens Brand(China), Beide
-
Feeder screw motor power:
-
1.1KW
-
Conditioner motor power:
-
2.2kw
-
Advantage:
-
Easy Operation
Quick Details
-
Max. Capacity:
-
1-2 ton/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUDA
-
Voltage:
-
Clients' Local Voltage
-
Dimension(L*W*H):
-
3200x2200x2170mm
-
Weight:
-
2200 kg
-
Marketing Type:
-
Hot Product 2020
-
Product name:
-
Cattle Feed Pellet Granulator Making Machine
-
Item name:
-
cattle feed production
-
Inner diameter of ring die:
-
350mm
-
Application:
-
Livestock Farm/Poultry farm
-
Function:
-
Producing Animal Feeds Pellets
-
Raw material:
-
Palm Kernel Expeller/Cake
-
Motor:
-
Siemens Brand(China), Beide
-
Feeder screw motor power:
-
1.1KW
-
Conditioner motor power:
-
2.2kw
-
Advantage:
-
Easy Operation
Products Description
|
Capacity
|
1-2T/H
|
|
Raw material
|
Palm Kernel Expeller/Cake
|
|
Main motor power
|
55KW
|
|
Screw feeder power
|
1.1KW
|
|
Conditioner power
|
2.2KW
|
|
Inner diameter of die
|
Inner diameter of die
|
|
Dimension
|
3200x2200x2170mm
|
|
Weight
|
About 2.2Ton
|
Product Application Scenario
Features of feed pelletizer :
(1) The latest technology adopted to product many kinds of feed.
(2) The bearings, oil seal, O-Rings of the drive part are all import.
(3) The design, quality and facade of the machine is in the international advanced level.
(4) The main drive part uses high-precision gear revolve, with this the production improved 15-20%.
(5) The gear revolve uses high-precision gear grinding, reduced the vibration and strepitus.
(6) The outside painting is sprayed, light and fastness.
(7) It improves the efficiency and reduces the labour intensity.
(8) The material of conditioning system is stainless steel,sanitary, the service time of it extend.
(9) There are several air inlets to add steam, it made the material heated enough, the effect of it is better.
(10) The engine oil circulating cooling lubrication system improves the cooling and lubrication effect of the key bearings.
