Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chnhoneycomb
-
Model Number:
-
S/PP8
-
Product name:
-

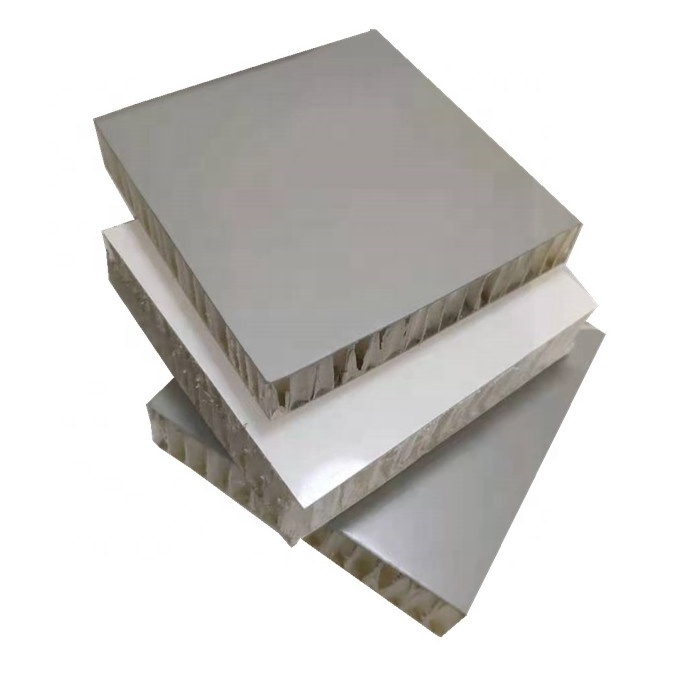

Plastic honeycomb panel
-
Core material:
-
polypropylene
-
Features:
-
Thermal Insulation Waterproof
Quick Details
-
Project Solution Capability:
-
graphic design
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
chnhoneycomb
-
Model Number:
-
S/PP8
-
Product name:
-
Plastic honeycomb panel
-
Core material:
-
polypropylene
-
Features:
-
Thermal Insulation Waterproof
Light weight, high compressive strength,anti-water,anti-humidity honeycomb can be used as structure in floor,ceiling,wall. .Besides PP honeycomb can cut down body weight ,increase speed, save energy when honeycomb structure make guarantee for body strength. Hereinforce our PP honeycomb widely used in boat,yatch,port,bridge,truck body,building,FRP and so on.
PP honeycomb core Specification:
Dimension,
Cell size and density
PP8 (Cell diameter is 8mm, the density is 85kg-95kg/m ³ )
PP10 (Cell diameter is 10mm, the density is 75kg-85kg/m ³ )
PP12 (Cell diameter is 12mm, the density is 65kg-75kg/m ³ )
Length Max: 2500m
Width Max: 1300mm
Thickness 6mm----150mm
Normal size: 2440*1220mm
Surface skin
0.8mm/1.2mm/1.5mm with gel or not
| Length Max | 2500mm |
| Width Max | 1300mm |
| Normal size | 2440*1220mm |
How does achieving honeycomb acoustic board work?
Achieving acoustics is based honeycomb,its cell structure could aborb,reflecting,consume
the energy of sound vibration, to keep noise minimum.
Honeycomb sheet mat advantage
It is strong and flexible,not grow together like rubber for example and have air in side its cells,
ventilatable and not crush,dissipating sound as it pass through the mat rather than deadening.
How to use Achieving acoustic board
Wildly adopted by commercial buildings, apartments, noise reduce for adjacent floors
It is a 5mm thickness mat,common size 1220*2440mm or 1150*2300mm,
Made of polycarbonate or polypropylene.density is around 70-90kg/m3,
It is laid and glued onto the floorslab’s surface, easier be bond and quickly ready for
Installation of tiles or timber flooring.
How do I know your quality?
We are a company/factory with more than 10 years’ experience in the honeycomb industry. During these years, we have done many businesses with the client from all over the world. If you still concern about the quality product, feel free to contact us ask for the sample.
My order has special requirements for dimensions and shape, do you have Customize services?
The answer is affirmative. We provide all kinds of customizing services, from shape and dimensions to the surface material. We will do our best to meet your requirements.
Can you deliver to the my city ?
We are qualified export factory and trading company, have lience anthoritied by Goverment
