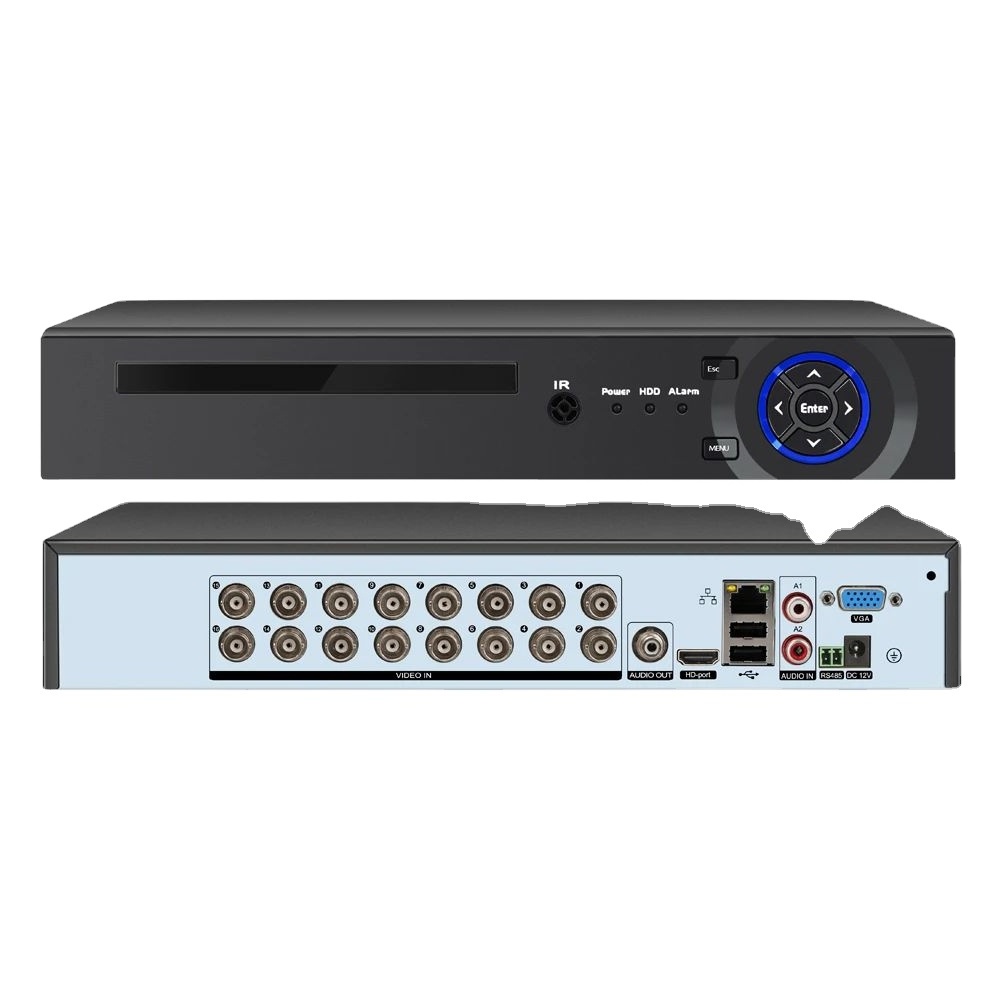

Quick Details
-
Type:
-
16ch dvr recorder
-
Resolution:
-
5MP
-
Video output:
-
1ch VGA, 1ch HDMI
-
Mobile App:
-
Xmeye
-
Compression:
-
Standard H.265/H.264 High Profile
-
HDD Slot:
-
1 HDD Slot (Max. 1*8TB HDD)
-
Power Supply:
-
DC 12V 2A
-
Audio I/O:
-
1CH/1CH
-
Internal HDD:
-
SATA X 2, up to 8TB per 2HDD
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
datuo, Kadymay/ OEM
-
Model Number:
-
A8716LME
-
Type:
-
16ch dvr recorder
-
Resolution:
-
5MP
-
Video output:
-
1ch VGA, 1ch HDMI
-
Mobile App:
-
Xmeye
-
Compression:
-
Standard H.265/H.264 High Profile
-
HDD Slot:
-
1 HDD Slot (Max. 1*8TB HDD)
-
Power Supply:
-
DC 12V 2A
-
Audio I/O:
-
1CH/1CH
-
Internal HDD:
-
SATA X 2, up to 8TB per 2HDD
Recommend Products
Datuo is a more than 10+ Years Surveillance Products manufacturer.
We can do OEM/ODM customized
Surveillance Products
.
Welcome to
contact with us here
!
Products Description
|
Feature：
Ø Support H.265 encoding, ultra-low bitrates, compatible with H.264 surroundings; Ø Support VGA, HDMI full HD output simultaneously; Ø Support ONVIF; access third party; Ø Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions; Ø Support web, VMS, center platform management software MYEYE, provide SDK development; Ø Support various mobile monitoring (iPhone, Android); Ø Remote Access, With DNS (ARSP),easy to monitor remotely Ø Support UTC, control signal& video stream transmit through one single coaxial Ø Support XVI/AHD/TVI/CVI/CVBS/IP six signals; Specification： |
|
|
Model
|
A8616LME-N
|
|
System
|
Main processor
|
NT98312
|
|
Interface
|
Preview
|
1/4/8/9/16
|
|
Video
|
Codec
|
H.265+
|
|
|
Monitor quality
|
VGA (1080P at most)；HDMI (4K at most)
|
|
|
Preview ability
|
16*5M-N@12fps (6 in 1)/16*4M-N@15fps (6 in 1)/16*1080P@15fps ( XVI), default 5M-N
|
|
|
Encode ability
|
16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@8fps (XVI) , default 5M-N
|
|
|
Decode ability
|
8*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@8fps (XVI) , default 5M-N
|
|
|
Multi-mode
input |
Analog：16*5M-N
network：16*1080P；4*5M |
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
Audio
|
Audio compression
|
G.711A
|
|
|
Intercom
|
support
|
|
Record & playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
|
Local Playback
|
16ch(analog input mode)
|
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
Storage & backup
|
Video storage
|
HDD, network
|
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
External Interface
|
Video input
|
16ch BNC
|
|
|
Video output
|
1ch HDMI
|
|
|
Loop Vout
|
N/A
|
|
|
Audio I/O
|
2（Can be extended to 6ch）/1
|
|
|
Alarm I/O
|
0（Can be extended to 4ch）/0（Can be extended to 1ch）
|
|
|
Network interface
|
RJ45 10M/100M self-adaption
|
|
|
PTZ control
|
1*RS485, Support kinds of PTZ protocols
|
|
|
USB
|
2* USB 2.0 ports
|
|
|
HDD
|
2*SATA ports (Max 8TB/per)
|
|
|
Wireless
|
3G, WIFI (extend via USB)
|
|
General
|
Power supply
|
12V/2A
|
|
|
Power Consumption
|
<15W (without HDD)
|
|
|
Working environment
|
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
|
|
|
Dimension
|
|
|
|
Weight
|
|
About Us
Package&Shipping
FAQ
When can I get the quotation?
We usually quote within 1 hours after getting your inquiry. If you are very urgent, please contact us by phone, email, Skype,
WhatsApp or Wechat. You can find all our sales’s contact information in this page :)
How can I pay for my order?
Alibaba’s Trade Assurance,T/T, Western union, MoneyGram, Credit card(Visa;MasterCard) etc is Acceptable
Can I order a sample to check the quality?
Samples are welcome to try. And for most of our products, the price difference between the sample and the bulk can be deducted from bulk :)
How long can I get my order when I paid for it?
For sample or small quantity: 1-3 working days. Usually We will ship via Express by FedEx, DHL, TNT etc. You will receive it in 3-5 days. For bulk, pls contact with our sales for different case, thank you in advance :)
How long do you offer for after-sales services?
Most of our products are guaranteed for 1 year, but contact with our sales for different case, more details are welcomed :)
Do you have experience to supply Amazon,Wish,Lazada ?
Yes, we have much experience :)
Can you provide OEM/ODM service?
Yes ,we have more than 15years OEM/ODM service :)
