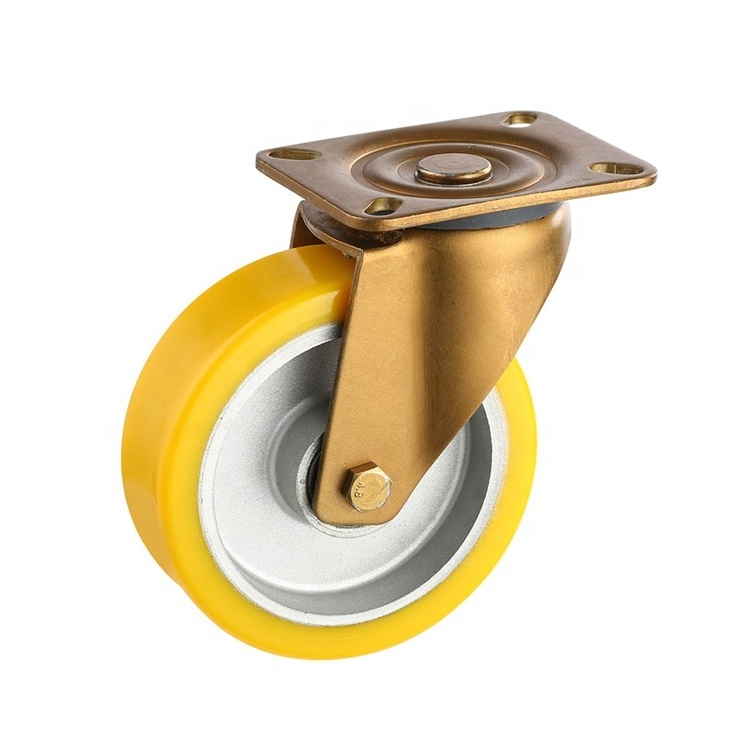

Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel

Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel

FOB Reference Price: Get Latest Price
≥500 Pieces
US $10.41
≥1000 Pieces
US $9.64
≥3000 Pieces
US $9.18
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hebei, China
Application:
Transportation
Product name:
Wheel Caster
Color:
Yellow
Wheel material:
PU + Metal
Load Capacity:
200-550kg
Wheel Diameter:
80/100/125/150/200mm
Usage:
Wide Usage
Bearing:
Roller Bearing

Quick Details

Material:
POLYURETHANE, Steel
Type:
Plate Casters
Model Number:
P162-76F125x40
Place of Origin:
Hebei, China
Application:
Transportation
Product name:
Wheel Caster
Color:
Yellow
Wheel material:
PU + Metal
Load Capacity:
200-550kg
Wheel Diameter:
80/100/125/150/200mm
Usage:
Wide Usage
Bearing:
Roller Bearing
Products Descriptipon
Medium heavy duty with pressed housing series 5 inch PU wheel tread aluminium core 125mm Plate caster wheel
Brand
Double Rhombus
Series
Medium Heavy duty Industrial Caster
Model No.
P162-76F125x40
Load Capacity(kgs)
300kgs
Wheel diameter(mm)
125mm
Width of Tread(mm)
40mm
Offset(mm)
43mm
Hole size(mm)
9mm
Overall height(mm)
153mm
Size of plate(mm)
105x82.5x4mm
Bearing
doubile Ball bearing
Bolt hole spacing(mm)
80x60mm

Walking Performance Test

Test standard according to EN12532, 6inch heavy duty PU caster sample with 300kg load, 3.75mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 119 minutes, the PU wheels need to walk total 7.069kms,
after testing, sample no abrasive wear, the wheel is qualified.



5000 times Brake Fatigue Test
Long service life period

Test standard according to EN12532, this pressed housing heavy duty PU castor, Pa ss 5000 times Fatigue Test for Locking Device.

Up to 5000 brake applications
High cost performance



Good impact resistance
and high load capacity
the 50mm widthen orange PU wheel with high-strength aluminum alloy center

Keep good impact resistance
and high load capacity center



PU Abrasion Test our PU raw materials passed Abrasion Test

Wear resistant and durable
long service life

We have various professional Experimental equipments,ensure high quality caster
PU Elasticity Tester
PU Hardnerss Tester
PU Tension Tester
High quality surface treatment,with Good corrosion resistance

Yellow zinc

plated style

White zinc

plated style

Thickened presed steel housing castor,widened wheel,200-800kgs heavy caster

3.5mm Thickened housing

50mm widened wheel

Multiple configurations are optional
Product Application- widely use medium heavy duty industrial PU caster
