TESmart HDMI Matrix Cat 5e/6 Quad View mode Extender 4 In 4 Out 4 Mirror Extended 1920x1080@60Hz HDMI Matrix with Extender

TESmart HDMI Matrix Cat 5e/6 Quad View mode Extender 4 In 4 Out 4 Mirror Extended 1920x1080@60Hz HDMI Matrix with Extender

FOB Reference Price: Get Latest Price

≥1 Pieces

US $330.28

≥100 Pieces

US $250.38

≥1000 Pieces

US $120.62

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

input:: 4 * HDMI Type A

output:: 4 * HDMI Type A and 4 * RJ45

Product name:: HDMI MATRIX WITH EXTENDER

Resolution:: 1080P@60Hz

Power:: DC 12V2A

Console commands:: RS232/ TCP/IP

IR remote control:: Yes

Front panel buttons:: Yes

Data rate:: 10.2 Gbps

Certification:: CE,FCC

Quick Details

Model Number:: HME0408A30

Brand Name:: TESmart

Place of Origin:: Guangdong, China

input:: 4 * HDMI Type A

output:: 4 * HDMI Type A and 4 * RJ45

Product name:: HDMI MATRIX WITH EXTENDER

Resolution:: 1080P@60Hz

Power:: DC 12V2A

Console commands:: RS232/ TCP/IP

IR remote control:: Yes

Front panel buttons:: Yes

Data rate:: 10.2 Gbps

Certification:: CE,FCC

Product Description

Our HDMI Matrix can choose which output device to display which input device as you want.

And you can also display one input device on multiple output devices at the same time.

It supports IR pass through.

When you need to control remotely, you can either use the remote control included in the package to control the matrix through infrared, or use the remote control provided with the input source to remotely control the input source through infrared.

The operation is convenient and efficient. You can switch input ports with front panel buttons, IR signals, RS232 port and LAN port .

This product also supports Quad View mode, can be applied to engineering, security, media and other scenarios.

Features

1.With 4 HDMI inputs and 4 HDMI outputs and 4 mirrored extended outputs 2.Each output group includes 1 HDMI and 1 RJ45 port 3.All output groups can share same input or select standalone input 4.Support extending digital video, audio and IR through a single Cat5e/6 cable up to 50 meters (need to be used with the Extender) 5.Support resolution up to 1920x1080@60Hz 6.Compliant HDCP 1.3 7.Each output supports Quad View mode 8.Support audio switching in Quad View mode 9.Support PCM, Dolby®_AC3, DTS®5.1 and other audio format transmission 10.Support IR pass through 11.Support 4 configurable user preset connections 12.Matrix status could be memorized after power down, automatically restore previous matrix status after next power on 13.Easy to control matrix via IR receiver, front panel key, LAN port and RS232 port

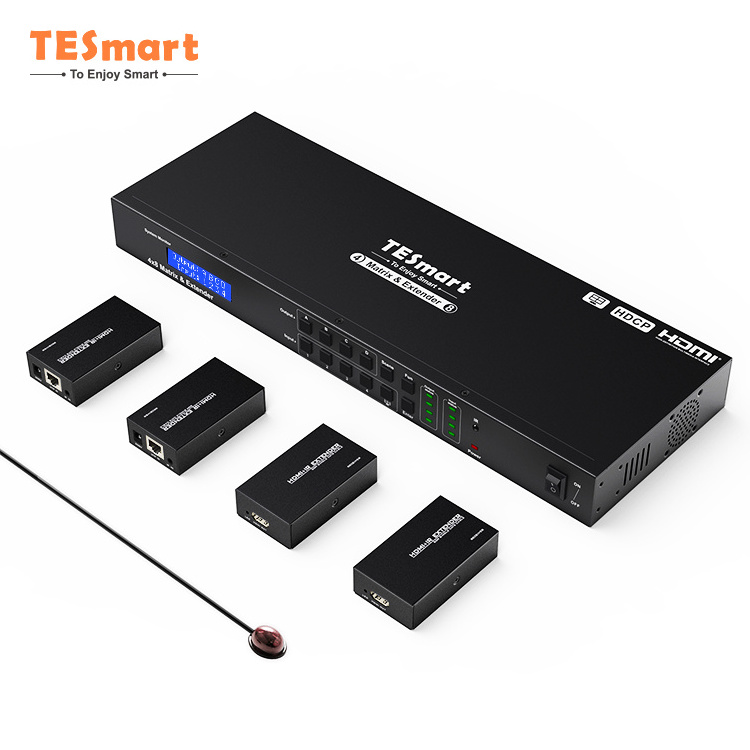

1 * 4X8 HDMI Matrix w/Cat 5 Extender 1 * IR Remote Control (For Matrix use) 5 * IR Receiver Cable 4 * IR Transmitter Cable 1 * DC 12V Power Adapter (For Matrix use) 2 * Rack-ears 4 * Extender 4 * IR Remote Control (For Extender use) 4 * DC 5V Power Adapter (For Extender use) 1 * User Manual

Specification

Front panel buttons	Yes
IR remote control	Yes
Console commands	RS232/ TCP/IP
Max. Resolution	1080P@60Hz
Auto to get EDID	Yes
Data rate	10.2 Gbps
input	4 * HDMI Type A
output	4 * HDMI Type A 、4 * RJ45
Ext.IR	1 * AUX
IR remote control	1*3.5 jack
TCP/IP	1*Rj45
RS232	9 Pins RS232
