Quick Details
-
Rated Lifting Moment:
-
400KN.M
-
Span:
-
3~50m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight (KG):
-
6000 kg
-
Name:
-

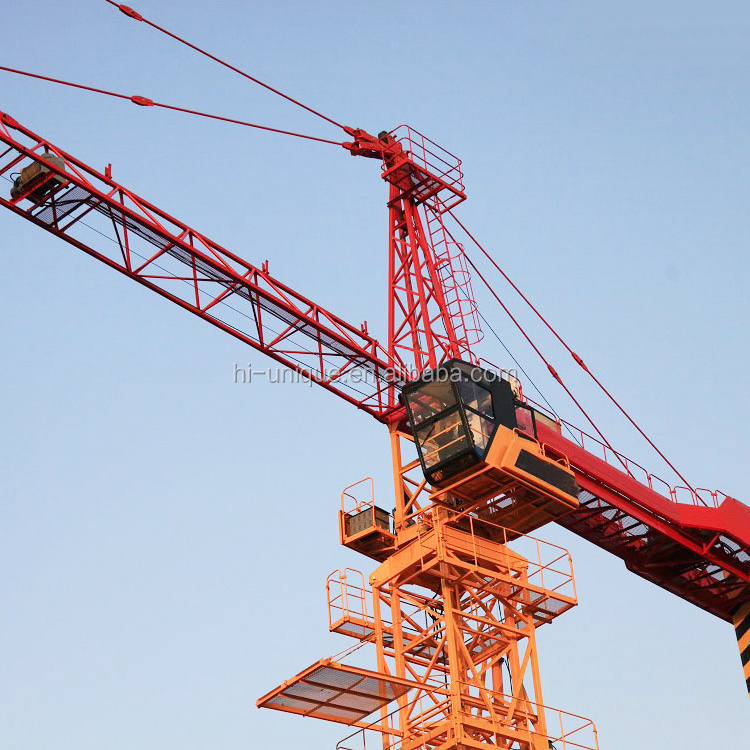

Tower crane QTZ63
-
Color:
-
As client's requirements.
-
Working radius (m):
-
3~50m
-
Type:
-
Stationary
-
Main Material:
-
Square Steel Tubes
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO9001 CCC
Quick Details
-
Rated Loading Capacity:
-
6 TON
-
Max. Lifting Height:
-
20M
-
Application:
-
Construction of Tall Buildings
-
Rated Lifting Moment:
-
400KN.M
-
Span:
-
3~50m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight (KG):
-
6000 kg
-
Name:
-
Tower crane QTZ63
-
Color:
-
As client's requirements.
-
Working radius (m):
-
3~50m
-
Type:
-
Stationary
-
Main Material:
-
Square Steel Tubes
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE ISO9001 CCC
Introduction:
• Leading performance: the boom length in full extension is 44.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
• The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
• The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
• The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
• The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and
luffing systems.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
Parameters:
| Model | QTZ31.5 | QTZ40 | QTZ63B | QTZ63C | QTZ80A | QTZ100A | QTZ125A |
| Radius(m) | 40/42 | 47/45 | 56/50 | 52 | 60/55 | 55 | 60/55 |
| Hook Height(m) | 31.6 | 32.5 | 41 | 40 | 46 | 45 | 46 |
| Max. Height(m) | 100 | 100 | 141 | 140 | 200 | 180 | 200 |
| Max. Hoisting Capacity(t) | 3 | 4 | 6 | 6 | 8 | 8 | 8 |
| Standard Mast Section Size(m) |
1.5* 1.5*2.4 |
1.5* 1.5*2.5 |
1.835* 1.835*2.5 |
1.615* 1.615*2.5 |
1.835* 1.835*2.5 |
1.835* 1.835*2.5 |
1.835* 1.835*2.5 |
| Hoisting Speed(r/min) | 26.8/5.2 | 76/38 | 80/40/8.5 | 80/40/8.5 | 80/40 | 100/50 | 100/50 |
| Slewing Speed(r/min) | 0.77 | 0.77 | 0.62 | 0.62 | 0.65 | 0.55 | 0.6 |
| Luffing Speed(m/min) | 43.2/21.6 | 43.2/21.6 | 42/21 | 42/21 | 60/30/10 | 60/30/10 | 60/30/10 |
