Quick Details
-
Power:
-
0
-
Weight:
-
1 kg
-
Dimension(L*W*H):
-
D82X200
-
Application:
-
Hydraulic System
-
After-sales Service Provided:
-
Online support
Quick Details
-
Core Components:
-
Filter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tianrui
-
Power:
-
0
-
Weight:
-
1 kg
-
Dimension(L*W*H):
-
D82X200
-
Application:
-
Hydraulic System
-
After-sales Service Provided:
-
Online support

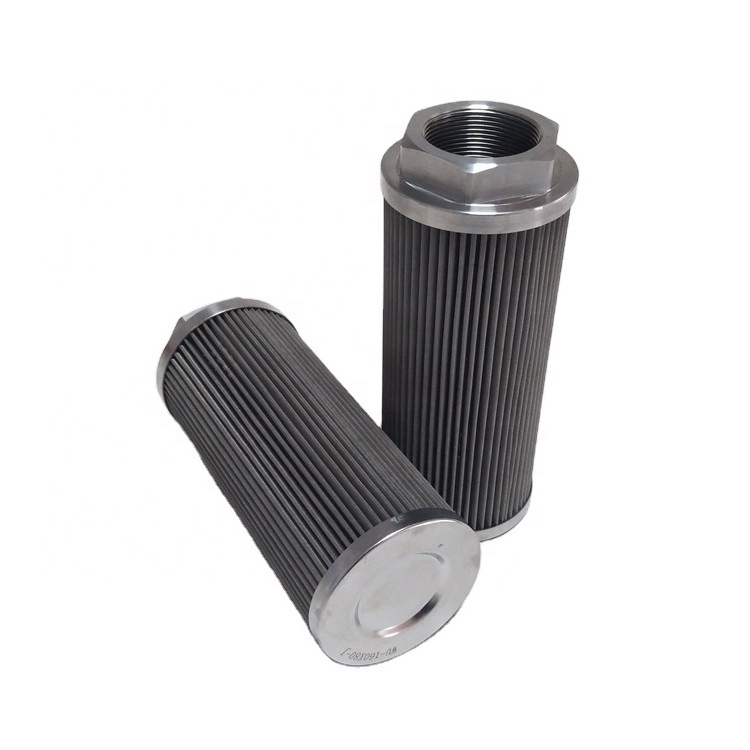

China Supply Hydraulic Suction Oil Filter Element WU-160*100-J
Stainless Steel Wire Mesh Washable Filter Cartridge
The filter is generally installed in the fuel tank exports, to protect the oil pump, avoid inhaling particles larger mechanical impurities.f ilter has simple structure, low cost, large capacity, small resistance.
| Mass media | general hydraulic oil phosphate ester hydraulic oil emulsion water - glycol |
| Material quality | glass fiber filter paper - BN stainless steel woven mesh - W wood pulp filter paper - P stainless steel sintering network - V |
| Filtration precision | 1 µm to 100 µm |
| Job stress | 21 bar - 210 bar working medium: general hydraulic oil, hydraulic oil, phosphate ester emulsion, water - ethylene glycol |
| Working temperature | - 30 ℃ ~ + 110 ℃ |
| Sealing material | fluorine aprons Nitrile butadiene rubber |
wu series filters models
| Model |
H |
D |
d |
Model |
H |
D |
d |
d1 |
m |
|
WU-16X*-J |
84 |
Φ35 |
M18X1.5 |
WU-250X*F-J |
203 |
Φ88 |
Φ50 |
Φ74 |
M6 |
|
WU-25X*-J |
105 |
Φ45 |
M22X1.5 |
WU-400X*F-J |
250 |
Φ105 |
Φ65 |
Φ93 |
M6 |
|
WU-40X*-J |
124 |
Φ45 |
M27X2 |
WU-630X*F-J |
300 |
Φ118 |
Φ80 |
Φ104 |
M6 |
|
WU-63X*-J |
103 |
Φ70 |
M33X2 |
WU-700X*F-J |
330 |
Φ118 |
Φ80 |
Φ104 |
M8 |
|
WU-100X*-J |
153 |
Φ70 |
M42X2 |
WU-800X*F-J |
320 |
Φ150 |
G2″ |
|
|
|
WU-160X*-J |
200 |
Φ82 |
M48X2 |
WU-1000X*F-J |
410 |
Φ150 |
G3 |
|
|
|
WU-225X*-J |
165 |
Φ150 |
G2” |
|
|
|
|
|
We also can produce according to your design and size!
|
|
1. Low Pressure Fuel Filter - RYL,RYLA Series
2. Pressure Line Filter - YPH Series
3. Pressure Line Filter - PHA/B/C/D
4. Pressure Line Filter - YPM Series
5. Pressure Line Filter - PMA Series
6. Low Pressure Return Filter - YPL Series
7. Low Pressure Line Filter - PLA Series
8. Tank Suction Filter - WU Series
9. The core pulling pressure line filter- FMQ series
If you need pressure line filter, following data need to be noted:
A.Working media.
B.Working flow .
C.Working pressure.
D.Filtration rating
Proper line strainer will be suggested to you or design according to your request.
other related filter housing
1.Consulting Service and finding solution for any problems in your industry.
2.Designing and manufacturing as your request.
3.Analyze and make drawings as your pictures or samples for your confirmation.
4.Warm welcome for your business trip to our factory.
5.Perfect after-sales service to manage your quarrel
Our hydraulic filter element is packed with inner paper carton individually ,then packed with big carton outside.
Filter strainer and filter elements with large amount is packed with wood carton outside.
Labels can be provided as your company logo.
We've partner with DHL,UPS,TNT,Fedex World's largest express company in Xinxiang.
By sea,by air, any is OK. Will quote cheap freight to you.
