Quick Details
-
Rolling thinckness:
-
0.6-1.2mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LIMING MACHINERY
-
Voltage:
-
As customer's requirements, 380V /50Hz/3PH or as per customer's requirements
-
Weight:
-
11000 kg
-
Feeding width:
-
914/1000mm
-
Place of Prigin:
-
China
-
Cutting blade material:
-
Cr12, heat treatment
-
After-sales Service Provided:
-
Provided
-
Raw material:
-
Color steel,PPGI
-
Control system:
-
PLC control
-
Color of Machine:
-
RAL 5015 (Blue) or as per customer's requirements
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
12MPM
-
Rolling thinckness:
-
0.6-1.2mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LIMING MACHINERY
-
Voltage:
-
As customer's requirements, 380V /50Hz/3PH or as per customer's requirements
-
Weight:
-
11000 kg
-
Feeding width:
-
914/1000mm
-
Place of Prigin:
-
China
-
Cutting blade material:
-
Cr12, heat treatment
-
After-sales Service Provided:
-
Provided
-
Raw material:
-
Color steel,PPGI
-
Control system:
-
PLC control
-
Color of Machine:
-
RAL 5015 (Blue) or as per customer's requirements

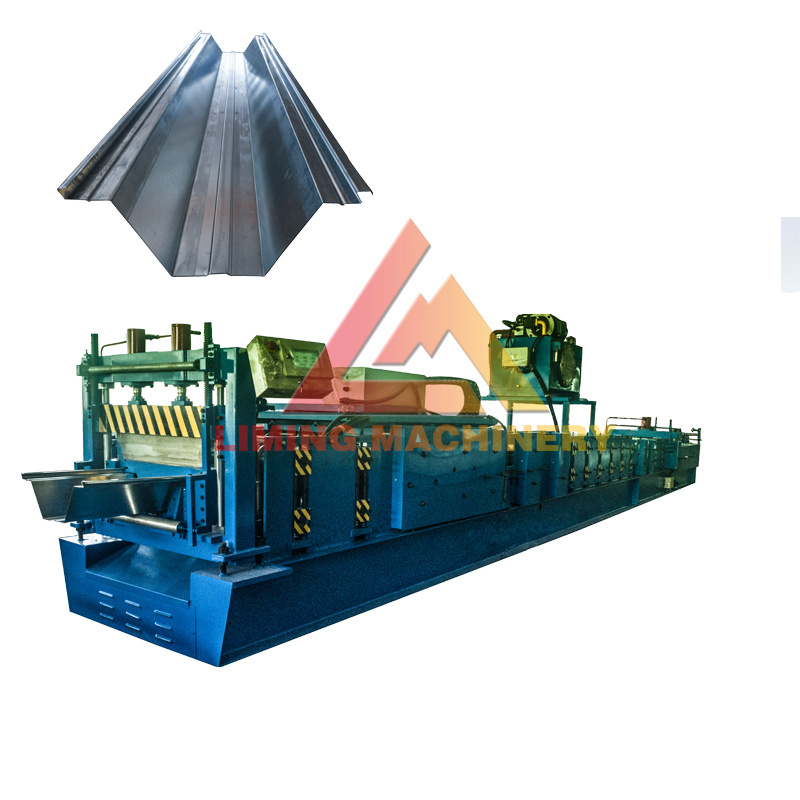

Large-Span Roof Machine|K Span Roll Forming Machine|Long Span Roll Forming Machine|Arch Span Roof Roll Forming Machine
Beamless arch roofing system is that the roll forming machine rolls and presses the color steel plate into a groove, and then the roll bending machine creases the groove into a trapezoidal section of the single arch curved surface plate.
And t hen the boards are sequentially spliced together with an Electric seamer to form a whole, a nd new structural form of lightweight steel roof.
The finished product has the advantages of low cost, building block, light and beautiful, large span space and open internal space. Widely used in hangars, warehouses, garages, factories, grain depots, gymnasiums, swimming pools, exhibition halls, trading halls, markets, commercial buildings, public service facilities and other types of buildings.
Flow: Decolier--Feeding into the feeding roller--Roll forming--Cutting--Product rack
Upgrade screw - joint arch steel sheet forming building machine
| Type |
V610 Roll Forming Machine for Big-Span Roof Profile / Large-span girderless arch construction machinery |
| Commodity |
Girderless Arch Roofing System / Beamless Arch Roofing System |
| Thicnkness | 0.6-1.5mm |
| Type |
Roll Forming Machine, Bending Machine |
| PLC | Siemens |
| Plate Material | Color steel, Galvanized Sheet |
| Frame Design | Wall-plate-frame-design / New-stand-frame-design |
| Roll Stages | 18 |
| Material of Forming Roller |
45# steel, CNC lathes, Hard Chrome Coated, Precision Machine |
| Shaft Diameter | Φ 95 mm |
| Main Motor Power | 22kw |
| Max.Line Speed of Roll Former | 15m/min |
| Hydraulic Group Power | 15kw |
| Material of Cutting Blade | Cr12,heat treatment |
| Cutting Tolerance | ± 1mm |
| Electric Standard | 380V / 50H z/3PH or as per customer's requirements |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer ' s requirements |
Beamless arch roofing system is that the roll forming machine rolls and presses the color steel plate into a groove, and then the roll bending machine creases the groove into a trapezoidal section of the single arch curved surface plate.
The finished product is beautifully shaped and brightly colored. Its rich and varied forms give the building a brand new appearance. Not only that it is also fully functional, integrating heat preservation, insulation, ventilation, lighting and many other functions into one.
1.
Q: Are you manufacturer or trading company?
A: We are manufacture and trading company
.
2.
Q:What info you need before you make the proposal?
A:The
y
ield stress
and thickness range which you need or the profile drawings, material information, your special requirements
.
3.
Q: what is the MOQ?
A: One set
4.
Q: Do you provide installing and debugging overseas?
A:
Engineer available to service machinery overseas
.
A
ll technicals are ready to serve you at any time
.
5.
Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
.
6.
Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control
.
Quality control complies with ISO 9001
&CE
.
E
very machine has to past testing running before it's packed for shipment
.
7.
Q: How can I trust you that machines pasted testing running before shipping?
A:
1
) We welcome you visit us and test machine by yourself in our factory
.
2
) We record the testing video for your reference
8.
Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians
.
One year warranty is provided
.
Long life technical guidance for free
.
9.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service
.
Also we can help you to solve the material(steel coil)purchase,worker train,international market price
.
10.
Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory
.
For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site
.
