Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX-6 in 1 multi table saw
-
Voltage:
-
380V 50HZ 3PH
-
Dimension(L*W*H):
-
1000*900*800mm
-
Weight (KG):
-
200 KG
-
Power (kW):
-
4
-
Maximum planing width:
-
260mm
-
Maximum planing depth:
-
3mm
-
Thickness range of pressing plane:
-
6--120mm
-
Minimum planing length:
-
150mm
-
Maximum thickness of saw materialial:
-
80mm
-
Maximum cutting depth:
-
10mm
-
Maximum dowel size:
-
16*16mm
-
Planer shaft diameter:
-
78mm
-
Saw blade diameter:
-
250mm
-
weight:
-
190KG
Quick Details
-
Max.Planing Depth(mm):
-
85 mm
-
Max.Planing Width(mm):
-
260
-
Core Components:
-
6 in 1 multi table saw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX-6 in 1 multi table saw
-
Voltage:
-
380V 50HZ 3PH
-
Dimension(L*W*H):
-
1000*900*800mm
-
Weight (KG):
-
200 KG
-
Power (kW):
-
4
-
Maximum planing width:
-
260mm
-
Maximum planing depth:
-
3mm
-
Thickness range of pressing plane:
-
6--120mm
-
Minimum planing length:
-
150mm
-
Maximum thickness of saw materialial:
-
80mm
-
Maximum cutting depth:
-
10mm
-
Maximum dowel size:
-
16*16mm
-
Planer shaft diameter:
-
78mm
-
Saw blade diameter:
-
250mm
-
weight:
-
190KG
Products Description

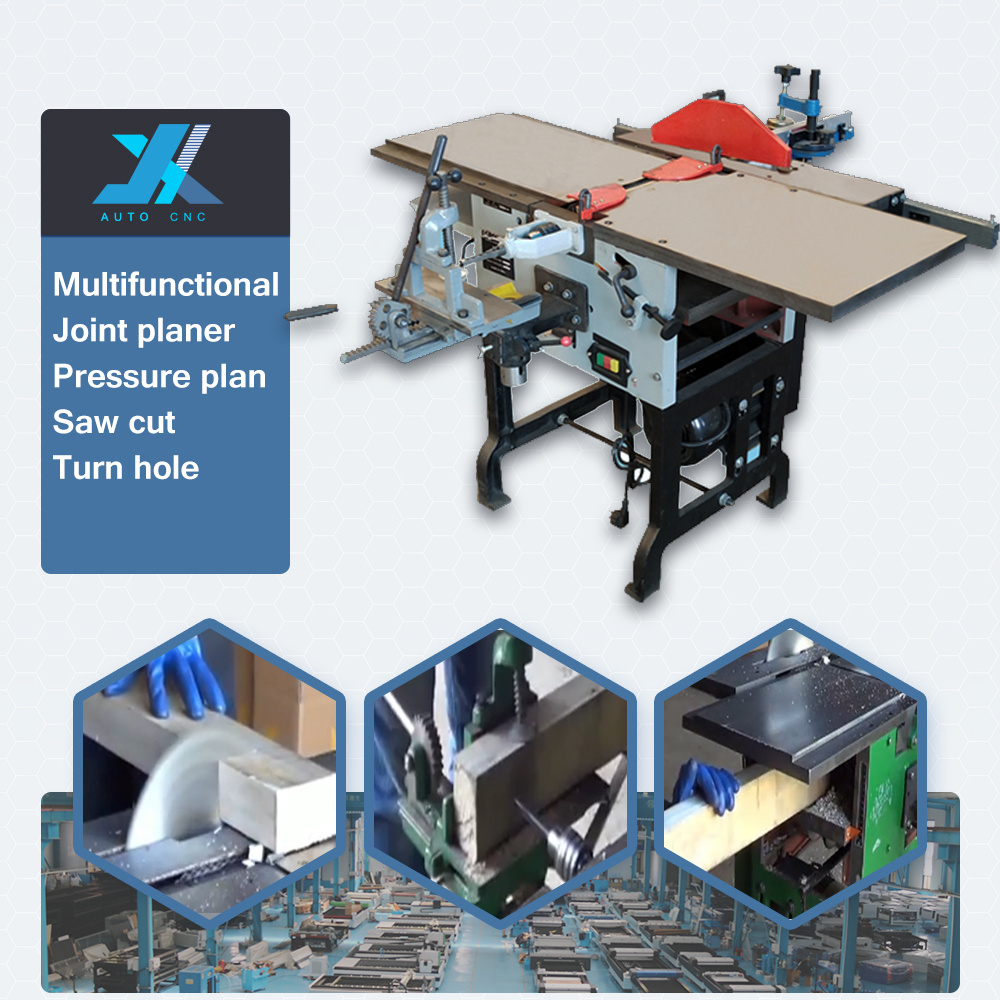

wood jointer planer
1. Sharpening, Drilling round hole, tenon making, Planing, cutting mouth, cutting mouth chamfering, Grinding saw blade, sawing, Chop spring, kinds of woodworking combinated.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.
Product Paramenters
|
Model
|
JX392B
|
JX393B
|
|
Planing width
|
260mm
|
310mm
|
|
Thickness range of pressing plane
|
6-120mm
|
6-120mm
|
|
Small planing length
|
150mm
|
150mm
|
|
Planing depth
|
3mm
|
3mm
|
|
Cut thickness
|
80mm
|
120mm
|
|
Depth of cut
|
10mm
|
10mm
|
|
Tenon size
|
16*16mm
|
16*16mm
|
|
Planer shaft diameter
|
78mm
|
78mm
|
|
Press plane feed speed
|
6.5m/min
|
6.5m/min
|
|
Saw blade diameter
|
250mm
|
300mm
|
|
Spindle speed
|
4200r/min
|
4200r/min
|
|
Motor power
|
2.2kw/380v/220v
|
2.2kw/380v/220v
|
|
Dimensions of planing table
|
1000*350mm
|
1200*405mm
|
|
Machine tool dimension
|
1000*900*800mm
|
1200*900*800mm
|
|
Machine weight
|
160kg
|
190kg
|
