Quick Details
-
Dimension(L*W*H):
-
300*260*507
-
Weight (KG):
-
30kg
-
Product name:
-
Pipe straightening machine crimp pipe straightener
-
Package:
-
Box
-
Application:
-
Construction Engineering
-
Maximum straighten force::
-
20KN
-
Weight (kg):
-
12-15.5
-
Weight:
-
12-15.5KG
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China, Zhejiang China
-
Core Components:
-
Hydraulic
-
Brand Name:
-
Donghuan
-
Dimension(L*W*H):
-
300*260*507
-
Weight (KG):
-
30kg
-
Product name:
-
Pipe straightening machine crimp pipe straightener
-
Package:
-
Box
-
Application:
-
Construction Engineering
-
Maximum straighten force::
-
20KN
-
Weight (kg):
-
12-15.5
-
Weight:
-
12-15.5KG
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO

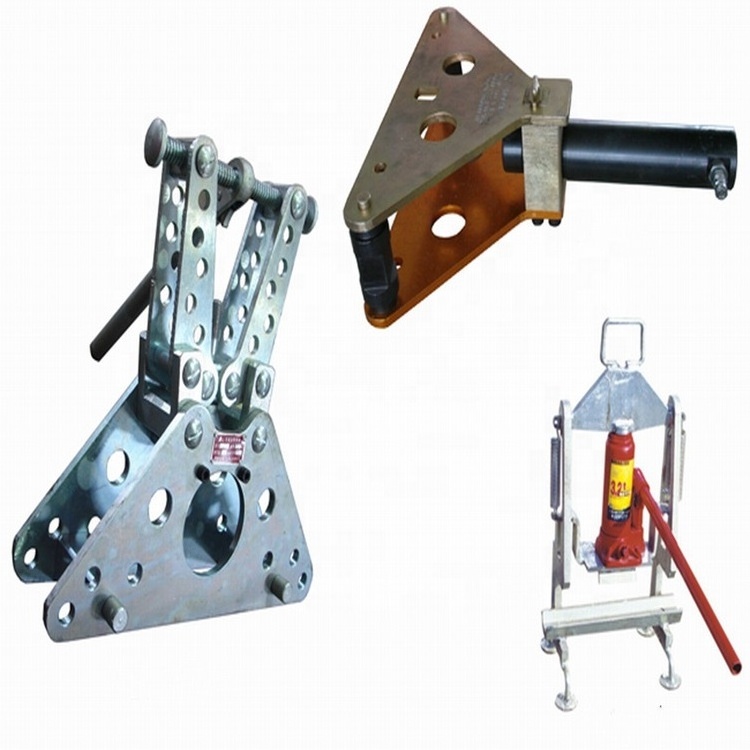

Pipe straightening machine crimp pipe straightener/splicing sleeves straightener
Application
Pipe straightening machine crimp pipe straightener,splicing sleeves straightener is used to press the crimp to bend after crimping.It is applicable for crimping pipe under LGJ720mm.
Configuration
17212 need to purchase mathched manual pump.
Technical Data
|
Item number |
17211 |
17212 |
17212A` |
|
Model |
YJZ2 | YJZ3 | YJZ4 |
|
straighten force(KN) |
20 | 50 | 150 |
|
Application conductor |
LGJ720 | LGJ900 | LGJ1250 |
|
Diameter of splicing sleeves(MM) |
Φ60 | Φ68 | Φ80 |
|
Shape siz(MM) |
300X260X507 | 452X391X145 | 400X375X140 |
|
Weight(KG) |
12 | 13.5 | 15.5 |
