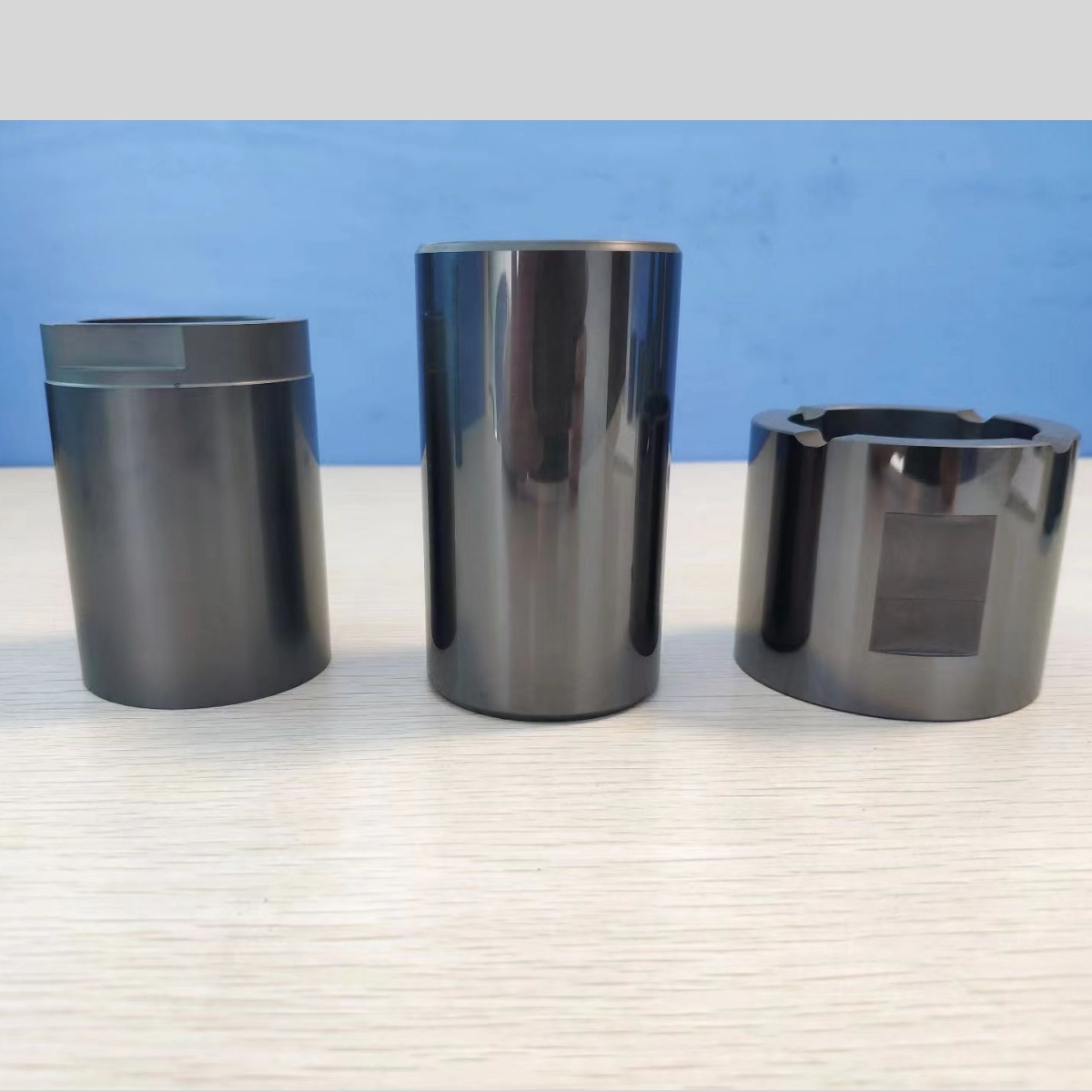

Pressuring Sintered Silicon Carbide SSIC Ceramic Chemical Pump Spindle Sic Bushing

Pressuring Sintered Silicon Carbide SSIC Ceramic Chemical Pump Spindle Sic Bushing

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

≥100 Pieces

US $9

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: None

Color:: black

Shape:: Tube/custom

Size:: Customers' Requests

Feature:: High Wear-resistance, High temperature

Usage:: Refractory, Structure Ceramic, Industrial Ceramic

Quick Details

Material:: Silicon Carbide

Place of Origin:: Jiangsu, China

Model Number:: SIC002

Brand Name:: None

Color:: black

Shape:: Tube/custom

Size:: Customers' Requests

Feature:: High Wear-resistance, High temperature

Usage:: Refractory, Structure Ceramic, Industrial Ceramic

Products Description

Pressureless sintered silicon carbide (SSIC)

is produced using very fine SiC powder containing sintering additives. It is
processed using forming methods typical for other ceramics and sintered at 2,000 to 2,200° C in an inert gas atmosphere. As well
as fine-grained versions, with grain sizes < 5 ?m, coarse-grained versions with grain sizes of up to 1.5 mm are available. SSIC is
distinguished by high strength that stays nearly constant up to very high temperatures (approximately 1,600° C), maintaining that
strength over long periods!

We produce sintered SiC tubes, reaction bonded SiC tubes and recrystallized SiC tubes. Our recrystallized SiC products have high purity, while our reaction bonded and sintered silicon carbide tubes have high mechanical strength. Our silicon carbide tubes possess good wearability, a low thermal expansion coefficient, extreme corrosion resistance, high hardness, and self-lubricating properties.

Advantage
1. Dimensional stability at high temperature, anti-deformation, high high temperature strength
2. Thermal shock resistance, wear resistance and corrosion resistance
3. Anti-oxidation and erosion resistance Can be widely used in: electric power, steel mill slag flushing groove, coal chemical industry, mining, transmission pipeline.

Application
Silicon carbide tubes are mainly used in medium frequency forging, various heat treatment electric furnaces, metallurgy, chemical industry, non-ferrous metal smelting and other industries. Widely used in metallurgical sintering furnace and intermediate frequency heating forging furnace. Length can be designed.

＞＞＞Click here to contact me for free samples＜＜＜

Properites	Units	Silicon carbide Material
Type		SiC			SiSiC		NSiC	RSiC
Chemical composition	SiC%	89	87	92		70	99
		SiO2 %	5	6	-		Si3N4 28	-
		Al2O3%	1.0	2.0	-		-	-
Bulk Desity	g/cm3	2.85	2.8	3.01		2.8	2.75
Apparent porosity	%	12	14	0.1		12	14
M.O.R.@20℃	MPa	50	48	260		180	100
M.O.R.@1300℃	MPa	58	56	280		185	120
C.T.E.@20℃-1000℃	10-6K-1	4.8	4.2	4.5		4.7	4.6
C.C.S	MPa	100	90	900		500	300
Thermal shock resistance	1	5	5	5		5	5
Max working temperature	℃	1450	1420	1300		1500	1650
application	Used in ceramic shuttle kiln, tunnel kiln and roller kiln,Kiln furniture.

Production Flow

Raw material

Pressing

Sintering

Polishing

QC/Inspecting

Packing

Testing equipment

Roughness tester

Micro hardness tester

Quadratic element detector

Company Introduction

Yixing City is the famous pottery capital in China. Most of Chinese ceramic industry is in Yixing. Jiangsu Fist Special Ceramic Co., Ltd is located in Yixing, established in 2016. We are also one of Alibaba's certified high-quality suppliers.

Superiorgeographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!

Certifications

Our Service

1. We support OEM and ODM；

2. We have professional R & D team and technical support；

3. We provide real-time logistics update information；

4. We have professional QC team to check the quality before delivery;

5. Our customer service will be online 24 hours a day.

FAQ

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.

Q: How about the shipping&package?

A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
