Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FICLUX
-
Connection Mode:
-
Recessed
-
PIR Sensor Max Load:
-
<120° / ≤ 2 m
-
Sensor Angle & Range:
-
<120° / ≤ 2 m
-
Delay time:
-
2 - 80seconds can be adjusted by yourself
-
Current:
-
3A Max
-
Detection Range:
-
< 2m
-

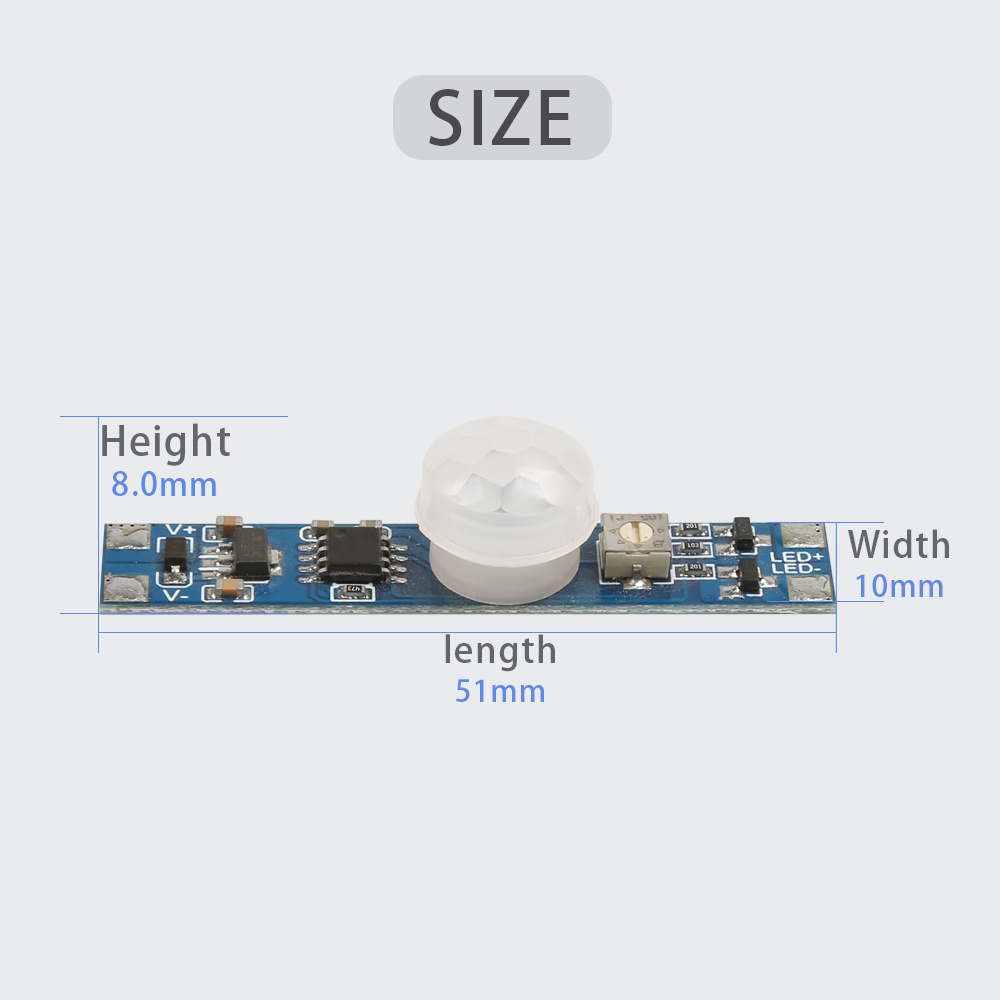

product size:
-
51*10*1.0mm
-
Working temperature:
-
-20° ~ 45°
-
Lens dia:
-
12mm
-
warranty period:
-
2 year
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
3A
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FICLUX
-
Connection Mode:
-
Recessed
-
PIR Sensor Max Load:
-
<120° / ≤ 2 m
-
Sensor Angle & Range:
-
<120° / ≤ 2 m
-
Delay time:
-
2 - 80seconds can be adjusted by yourself
-
Current:
-
3A Max
-
Detection Range:
-
< 2m
-
product size:
-
51*10*1.0mm
-
Working temperature:
-
-20° ~ 45°
-
Lens dia:
-
12mm
-
warranty period:
-
2 year
When motion is detected in the area where the switch is triggered, the light turns on. If no movement is detected within 30
seconds, the light switches off automatically.
Brief description and functionality of PD03:
* the small dimensions of the switch allow you to install the switch in most aluminum profiles;
* easy installation of the switch on an adhesive base on a profile;
* wide contact pads for soldering;
* hard on(100%) / off (0%) 1.5÷2 s (PD03) ;
* The wide 120° motion detection angle allows you to install the switch in the depth of the furniture without bringing it to the foreground.;
* detection distance 2.0 ±0.5 m.
When the voltage is applied, the device is set to standby mode. The lights are off. When motion is detected within the detection distance, the light turns on.
Scope Kitchen furniture, bedrooms, sliding wardrobes and other types of cabinet furniture.
|
Product Name
|
PIR Sensor Module
|
|
|
|
|||
|
Model No
|
PD03
|
PD01-A2
|
PD02-B1
|
PD01-B2
|
|||
|
Function
|
Hard on/off
|
Hard on/off
|
Fading on/off
|
Fading on/off
|
|||
|
Input/Output
|
DC 12V/24V
|
|
|
|
|||
|
Power
|
12V36W; 24V72W
|
|
|
|
|||
|
Current
|
3A Max
|
|
|
|
|||
|
Product Size
|
51*10*1.0mm
|
|
|
|
|||
|
Sensor angle
|
＜120°
|
|
|
|
|||
|
Detection distance
|
< 2.0 ±0.5 m
|
|
|
|
|||
|
Delay time
|
2 - 80seconds can be adjusted by yourself
|
About 15 seconds
|
About 30 seconds
|
About 15 seconds
|
|||
|
Lens dia
|
12mm
|
|
|
|
|||
ATTENTION!
Install, connect, and maintain the touch switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for solderin
g! This
puts the device out of service and is not a warranty case!
