Quick Details
-
Max. Lifting Height:
-
6m
-
Span:
-
5-7.2m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIHAU
-
Weight (KG):
-
729 kg
-
Product Name:
-
Base Mount jib Crane 2 ton
-
Lifting mechanism:
-
Electric Wire Rope/Chain Hoist
-
Column Height:
-
5.77-8.05m
-
Lifting Speed:
-
0.8-8m/min
-
Slewing Speed:
-
0.5-1r/min
-
Hoist Traveling Speed:
-
20m/min
-
Valid Radius:
-
4, 5, 6m
-
Work Duty:
-
A3
-
Slewing Angle:
-
360 degrees or design
-
Power supply:
-
3 Pahse 380V 50Hz or Design
-
Certification:
-
CE ISO CUTR
Quick Details
-
Application:
-
Workshop
-
Rated Loading Capacity:
-
2 tons
-
Rated Lifting Moment:
-
Design
-
Max. Lifting Height:
-
6m
-
Span:
-
5-7.2m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WEIHAU
-
Weight (KG):
-
729 kg
-
Product Name:
-
Base Mount jib Crane 2 ton
-
Lifting mechanism:
-
Electric Wire Rope/Chain Hoist
-
Column Height:
-
5.77-8.05m
-
Lifting Speed:
-
0.8-8m/min
-
Slewing Speed:
-
0.5-1r/min
-
Hoist Traveling Speed:
-
20m/min
-
Valid Radius:
-
4, 5, 6m
-
Work Duty:
-
A3
-
Slewing Angle:
-
360 degrees or design
-
Power supply:
-
3 Pahse 380V 50Hz or Design
-
Certification:
-
CE ISO CUTR

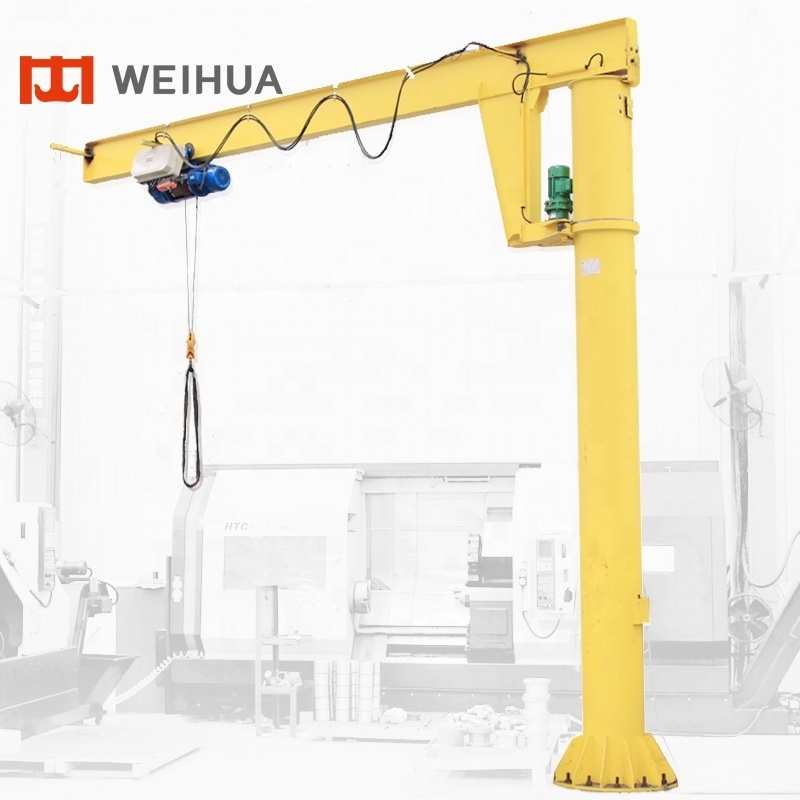

Weihua Base Floor Mount jib Crane 2 tons Lifitng Height 4m and Jib Length 4m
This base mount jib crane 2 ton is designed for all kinds of workstation such as small workshops and factory assembly lines, storage areas and loading sites. This base mount jib crane 2 ton is employed to lift a single workpiece or help to expand production capacity for industrial facilities.
This base mount jib has a lift capacity reaches to 5,000 kg and the jib slewing motion can reach 360 degrees rotation. This base mount jib crane 2 ton is fixed on the concrete floor and the lift hoist can be Chain Hoist or wire rope hoist.
Notes: If you want to ask any questions about this product directly with us, pls click here !
| Model | BZ | ||||||||
| Lifting Capacity | t | 3 | 5 | ||||||
| Lifting Height | m | 4 | 5 | 6 | 4 | 5 | 6 | ||
| Valid Radius | m | 4 | 5 | 6 | 4 | 5 | 6 | ||
| Work Duty | A3 | ||||||||
| Speed | Lifting | Normal | m/min | 8 | |||||
| Low | 0.8 | ||||||||
| Hoist Traveling | 20 | ||||||||
| Slewing | r/min | 0.5-1 | |||||||
| Slewing Angle | 180, 270, 360 or any degrees | ||||||||
| Column Height | m | 5.77-8.05 | |||||||
| Arm Length | m | 5-7.2 | |||||||
| Power Supply | 3 pahse 380V 50Hz or Design | ||||||||
| Notes: Single speed or double speed wire rope hoist and chain hoist can be chose to equip. | |||||||||
