We always recommend our clients to hold a set of spares in stock, for every kind of machinery they buy from us. This will help in smooth functioning of your manufacturing facility, without any obstacles.
- Product Details
- {{item.text}}
Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eceng
-
Year:
-
2023
-
Voltage:
-
380V,50HZ
-
Dimension(L*W*H):
-
1.46*0.58*1.8(m)
-
Hollow part volume:
-
2L
-
Weight (KG):
-
650 KG
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Automatic:
-
Yes
-
Model Number:
-
YC-2L-2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year
-
Certification:
-
CE
-
Name:
-
semi automatic pet bottle blowing machine
Quick Details
-
Neck Diameter(mm):
-
100 mm
-
Max.Bottle Diameter(mm):
-
180 mm
-
Max.Bottle Height(mm):
-
300 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Eceng
-
Year:
-
2023
-
Voltage:
-
380V,50HZ
-
Dimension(L*W*H):
-
1.46*0.58*1.8(m)
-
Hollow part volume:
-
2L
-
Weight (KG):
-
650 KG
-
Blow Moulding Type:
-
Stretch Blow Moulding
-
Automatic:
-
Yes
-
Model Number:
-
YC-2L-2
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1 year
-
Certification:
-
CE
-
Name:
-
semi automatic pet bottle blowing machine
|
Model
|
YC-2L-2
|
|
|
|
|||
|
|
Cavity
|
|
2
|
|
|||
|
|
Max.volume
|
|
2L
|
|
|||
|
|
Bottle mouth maximum overall diameter
|
|
100
|
|
|||
|
|
Bottle biggest diameter
|
|
180
|
|
|||
|
|
Bottle maximum height
|
|
300
|
|
|||
|
|
Theory output
|
|
800
|
|
|||
|
Oven
|
Temperature grade(rate)
|
|
8
|
|
|||
|
|
Heating time(S)
|
|
90-200
|
|
|||
|
|
Voltage(V)
|
|
220 or as your request
|
|
|||
|
|
Frequency(HZ)
|
|
50/60
|
|
|||
|
|
Total power(KW)
|
|
16
|
|
|||
|
|
Oven Size (LxWxH)
|
|
1.35*0.55*1.15
|
|
|||
|
|
Oven weight (KG)
|
|
300
|
|
|||
|
Blow molding part
|
Die force (KN)
|
|
100
|
|
|||
|
|
Die stroke (mm)
|
|
270
|
|
|||
|
|
Max. mould size(mm)
|
|
390*345
|
|
|||
|
|
Mould thickness
|
|
Adjustable
|
|
|||
|
|
Mould spacing(mm)
|
|
Adjustable
|
|
|||
|
|
Max. pulling stroke(mm)
|
|
400
|
|
|||
|
|
Operation pressure(Mpa)
|
|
0.8-1.0
|
|
|||
|
|
Operation air pressure consumption(1tr/min)
|
|
200
|
|
|||
|
|
Blow pressure(Mpa)
|
|
1.2-2.8
|
|
|||
|
|
Blow air pressure consumption (1tr/min)
|
|
300
|
|
|||
|
|
Machine size(LxWxH)(m)
|
|
1.46*0.58*1.8
|
|
|||
|
|
Machine weight(KG)
|
|
650
|
|
|||

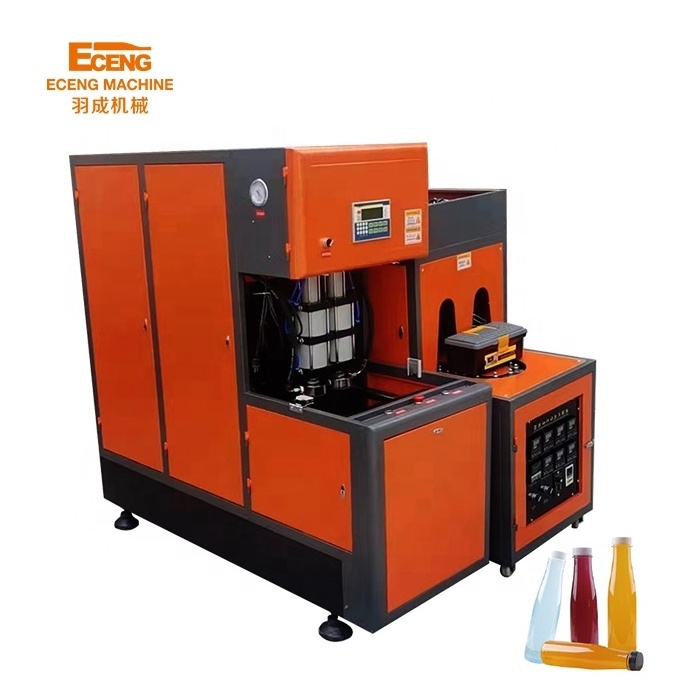

YC series semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more
accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special
training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.
YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully
automatic type.
training.YC series PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.
YC linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully
automatic type.
Spares Services
1.Air Compressor :
Compress air,used for blowing bottle and blower action.
2. Air Dryer And F
ilter
:
Cooling and dry air,improve bottle quality,prolong phnuematic parts life.
3. Chiller :
Cooling mould,make the machine suitable to working 24 hour per day.
Eceng Machinery a professional bottle blowing machine factory in China, was established in 2007,provide a complete production system from preform production, bottle blowing, filling, to final packaging.With 17 years of industry experience, we have become a leading player in the field.
We understand that the biggest troubles for customers when purchasing and using bottle blowing machines are the difficulties in operation and maintenance. That's why we created Eceng Bottle Blowing Machine, which incorporates Western European technology to offer highly automated and user-friendly bottle blowing equipment.
we offer a one-year product warranty and lifetime technical support and special emphasis on remote training videos, an innovative service that allows our engineers to analyze and resolve machine alarms or other problems through video connections. This way, even customers who are not familiar with the operation can easily handle the bottle blowing machines.
we believe in a "one transaction, lifelong service" philosophy. Our goal is to comprehensively address our customers' concerns, allowing them to focus on efficient production.
1.Design machine according your requirements
We offer customized bottle shape/ logo/ color design based on customer requirements.
2.Arrange engineer to customer's factory
We will send our professional engineers to your factory to install the machines and train your staff how to operate the machines.
3.video training
The content of training is structure and maintenance of equipment, control and operation of equipment.
12 Months guarantee and life-long technical support
Engineers is available 24/7 online, always ready to assist customers with any operational issues they may encounter.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city. in close proximity to Shanghai and Wuxi. If you arrive at either Shanghai or Wuxi, we can arrange transportation to pick you up and accompany you for a visit to our factory.
Q: How can I know your machine works well?
A: Before delivery, we will debug the production line, take photos, videos and send them to you via mail or instant tools.And you are welcome to come to visit our factory,and see the machine running.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 200 sets per year，customized requirements from 1 to 12 cavities, with production capacities ranging from a few hundred bottles to 36,000 bottles per hour.
