Quick Details
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
Valve Application:
-
HVAC System, Water treatment
-
Actuator Control type:
-
ON/OFF
-
Actuator Type:
-
Electric Actuated
-
Actuator Power:
-
AC230V+/-10%
-
Valve size:
-
dn15, dn20 dn25
-
Valve type:
-
2 Way
-
Valve port:
-
Reducing Port
-
Valve threaded:
-
BSPP
-
Ball Valve Material:
-
Brass
-
Type:
-
BALL VALVES
Quick Details
-
Port Size:
-
1/2" 3/4'' 1''
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
WRA-6320A+W8BV2...
-
Brand Name:
-
Winvall
-
Standard or Nonstandard:
-
Standard
-
Valve Application:
-
HVAC System, Water treatment
-
Actuator Control type:
-
ON/OFF
-
Actuator Type:
-
Electric Actuated
-
Actuator Power:
-
AC230V+/-10%
-
Valve size:
-
dn15, dn20 dn25
-
Valve type:
-
2 Way
-
Valve port:
-
Reducing Port
-
Valve threaded:
-
BSPP
-
Ball Valve Material:
-
Brass
-
Type:
-
BALL VALVES

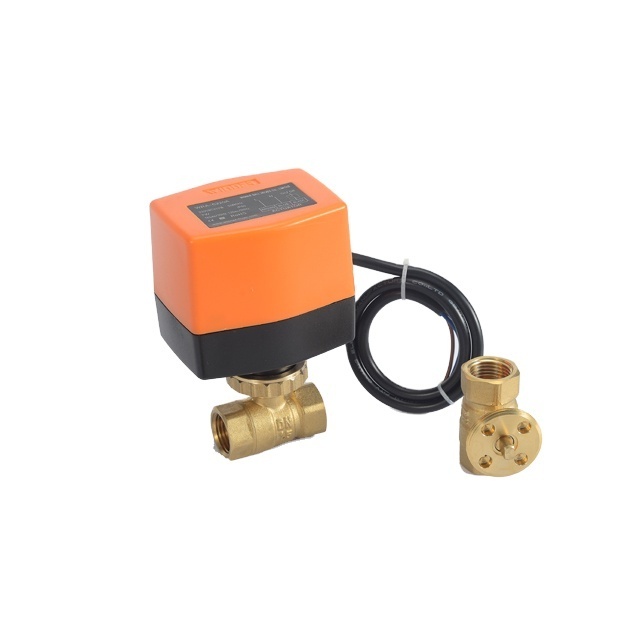

Description of Motorized Water Valve
Winner m otorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve , which have compact structure , stable operation , excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque .
Application of Motorized Water Valve
HVAC system , heating system , Water treatment system , Industrial equipment
Technical data
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2 ℃... 90 ℃
Rated pressure: PN20 Pipe connector: internal thread
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: chrome-plated brass Stem: EPDM O-rings
Ball Valve
|
Model No. |
|
Inner Dia. |
Inch |
Kvs(m3/h) |
Pmax(KPa) |
Ps(KPa) |
|
W8BV215 |
2-way |
10mm |
1/2 |
8.6 |
1000 |
1400 |
|
W8BV220 |
14mm |
3/4 |
21 |
1000 |
1400 |
|
|
W8BV225 |
18mm |
1 |
22 |
1000 |
1400 |
Actuator
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
On/off time |
Valve body |
|
WRA-6320A |
230VAC+/-15% 50/60Hz |
on/off |
3.5N.m |
5W |
50Hz:16S 60Hz:12S |
W8BV215 W8BV220 W8BV225
|
|
||
