New Style Hot selling 24v passive poe passive poe switch 24v passive poe 8 port

24V 48V passive PoE out network switch 8 port gigabit VLAN QoS IGMP managed PoE+ switch for Antenna,Wifi router

Overview

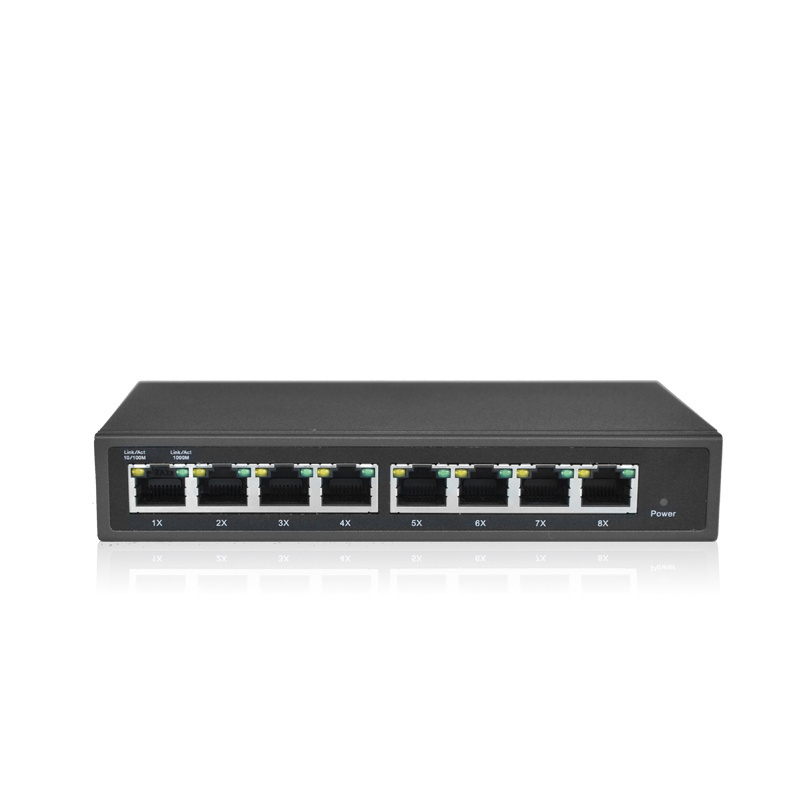

TS8100 series is a non-standard PoE switch independently developed by GXCOM. It has 8*
10/100/1000M RJ45 ports . Port 1-7 can support 24V non-standard PoE power supply, single-port PoE
power up to 15.4W. total power is 120W. As a non-standard PoE power supply device, it must be
connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the
corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can
supply power to various adaptable terminals through network cables to meet the demand for high density
PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and
small and medium-sized enterprises to establish cost-effective networks

Management Features

1.Support port based vlan and 802.1q tag vlan

2.Support port-based QoS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions

3.Support IEEE 802.1p QoS ,TOS/DSCP Qos

4.Support port trunking/aggregation

5.Support rate control, broadcast storm suppression

6.Support port flow control

7.Support port mirror

8.Support IGMP Snooping V1/V2, MLD snooping

9.Support IEEE802.1X based port security

10.Support loop detection, loop prevention

11.Support Dos attack prevention

12.Support configure port speed, status, poe status, poe reset

13.Support SNMP,web GUI, CLI management

14.Support mac list,mac search

Intelligent PoE functions

*  8*10/100Base-TX RJ45 ports support 24V PoE power supply, which meets the needs of PoE power
supply in various scenarios in the security field.
*  The maximum PoE output power is 120W, and the maximum PoE output power of single port is 30W.
*  It can quickly realize the power supply function of POE cable through the two ways of switching directly
to non standard electrical equipment or switch + non standard separation line.

Specifications
