Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Single Pulse Energy:
-
96J-150J
-
Pulse Width:
-
0.5MM
-
Wavelength:
-
1070NM
-
Focal Spot Diameter:
-
2.0
-
Dimensions:
-
1120*750*1300mm
-
Weight (KG):
-
210 KG
-
Product name:
-
Handheld Laser Welding Machine
-
Laser power:
-
1000W 2000W 1500W 3000W (optional)
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Cooling System:
-
Water Chiller 220V/50HZ
-
Machine Type:
-
Handheld Machine
-
Laser type:
-
Fiber Laser Source
-
Laser source power:
-
1000/1500/2000/3000
-
Laser head:
-
WSX Optional
-
Power Supply:
-
220V50Hz
-
Characteristic:
-
Easy to operate
Quick Details
-
Max. Output Power:
-
2000
-
Usage:
-
metal welding
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Single Pulse Energy:
-
96J-150J
-
Pulse Width:
-
0.5MM
-
Wavelength:
-
1070NM
-
Focal Spot Diameter:
-
2.0
-
Dimensions:
-
1120*750*1300mm
-
Weight (KG):
-
210 KG
-
Product name:
-
Handheld Laser Welding Machine
-
Laser power:
-
1000W 2000W 1500W 3000W (optional)
-
Welding materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Welding Machine )
-
Cooling System:
-
Water Chiller 220V/50HZ
-
Machine Type:
-
Handheld Machine
-
Laser type:
-
Fiber Laser Source
-
Laser source power:
-
1000/1500/2000/3000
-
Laser head:
-
WSX Optional
-
Power Supply:
-
220V50Hz
-
Characteristic:
-
Easy to operate
Product Description

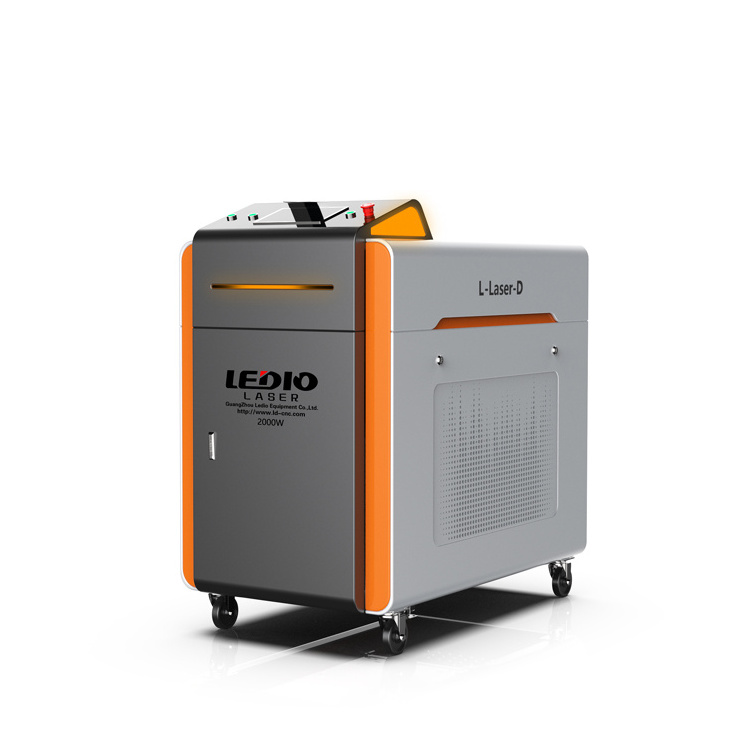

Factory price 2KW Handheld Laser Welding Machine Welding Laser Cleaning Laser Welding Machine
Application Industry
Metal processing medical equipment, metal processing kitchenware, stoves, lighting fixtures, aerospace textile machinery
Stainless steel
Stainless steel
Stainless steel
Carbon steel
Carbon steel
Carbon steel
PRODUCT PARAMETER
|
Name
|
Handheld fiber laser welding machine
|
|
Fiber laser power
|
2000W
|
|
wavelength
|
1070 NM
|
|
Fiber Length
|
Standard 10M
|
|
Way of working
|
Continuous/Modulation
|
|
Welding machine speed range
|
0~120 mm/s
|
|
Recommended welding thickness
|
0.8-4mm
|
|
Working voltage
|
AC220V 50-60Hz
|
|
Automatic wire feeding speed range
|
0~9mm
|
|
Wire feeding type
|
Stainless steel wire, iron wire, aluminum wire
|
|
Wire feeding size range
|
0.8~1.6mm
|
|
Wire feeding delay
|
0ms
|
|
Withdrawal time
|
0-3ms
|
Welding speed reference parameter
|
Laser power
|
Welding thickness (penetration)
|
Weld bead width
|
Speed
|
power range
|
|
1000W
|
0.8mm—3mm
|
0-5mm adjustable
|
0.8m-9m/min
|
300-1000W adjustable
|
|
1500W
|
0.8mm—4mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-1500W adjustable
|
|
2000W
|
0.8mm—6mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-2000W adjustable
|
|
3000W
|
0.8mm—8mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-3000W adjustable
|
