- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Fish Shrimp Farm Pond
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XiuHe
-
Model Number:
-
0.8mm
-
Color:
-
Black
-
Material:
-
HDPE PVC EVA
-
Length:
-
50-200m
-
Width:
-
1-8m
-
Thickness:
-
0.2-3mm
-
Density:
-
0.94g/cc
-
Surface:
-
Smooth Rough Textured
-
Appplication:
-
Fish Dam Pond
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Fish Shrimp Farm Pond
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XiuHe
-
Model Number:
-
0.8mm
-
Color:
-
Black
-
Material:
-
HDPE PVC EVA
-
Length:
-
50-200m
-
Width:
-
1-8m
-
Thickness:
-
0.2-3mm
-
Density:
-
0.94g/cc
-
Surface:
-
Smooth Rough Textured
-
Appplication:
-
Fish Dam Pond
Product Description
HDPE Geomembrane
Geomembrane is a kind of waterproof material with basic raw material of high molecular polymer.It is mainly divided into HDPE geomembrane,EVA geomembrane and so on.
Smooth HDPE Geomembrane
Textured
HDPE Geomembrane
EVA Geomembrane
Features
・Excellent environmental stress resistant cracking perpormance and chemical erosion resistance.
・Wide application temperature and long service.
Application
Applied in the projects of landfill waste site,bank,dam,pool,filth treatment site,tailings depot,subway and tunnel etc.
Used for landfill waste site
Used for swimming pool

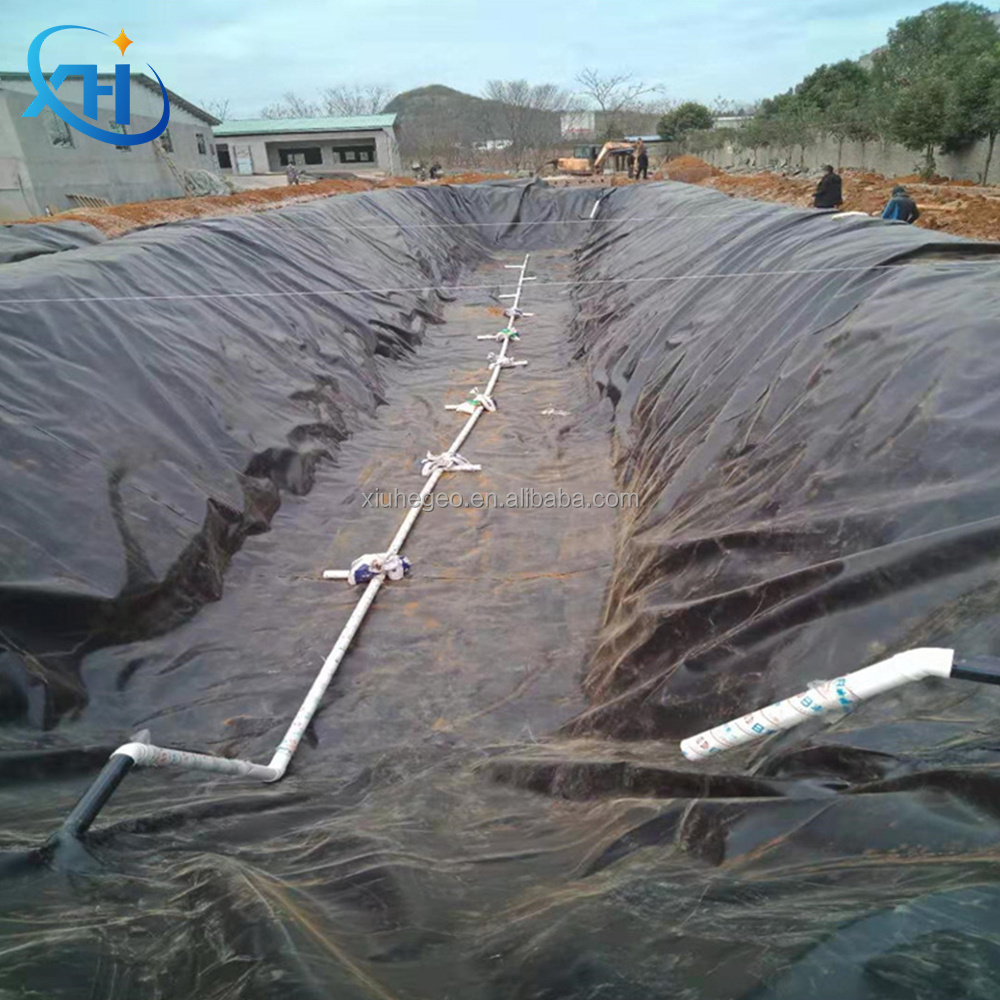

Used for pond liner
Used for tailings depot
Used for dam
HDPE Geomembrane Product Propertise
|
Spec
Properties
|
Test
method
ASTM
|
GMS0.5
|
GMS0.75
|
GMS1.0
|
GMS1.25
|
GMS1.5
|
GMS2.0
|
GMS2.5
|
|
Thickness
|
D5199
|
0.50mm
|
0.75mm
|
1.00mm
|
1.25mm
|
1.50mm
|
2.00mm
|
2.50mm
|
|
Density(≥）
|
D1505
|
0.94g/cc
|
0.94g/cc
|
0.94g/cc
|
0.94g/cc
|
0.94g/cc
|
0.94g/cc
|
0.94g/cc
|
|
Tensile Properties
(Each direction)(≥）
1.yield strength
2.break strength
3.yield elongationg
4.break elongation
|
D6693
Type IV
|
8kn/m
14kn/m
12%
700%
|
11kn/m
20kn/m
12%
700%
|
15kn/m
27kn/m
12%
700% |
18kn/m
33kn/m
12%
700% |
22kn/m
40kn/m
12%
700% |
29kn/m
53kn/m
12%
700% |
37kn/m
67kn/m
12%
700% |
|
Tear Resistance(≥）
|
D1004
|
64N
|
93N
|
125N
|
156N
|
187N
|
249N
|
311N
|
|
Puncture Resistance(≥)
|
D4833
|
160N
|
240N
|
320N
|
400N
|
480N
|
640N
|
800N
|
|
Stress Crack Resistance(≥）
|
D5397
|
300hr.
|
300hr.
|
300hr.
|
300hr.
|
300hr.
|
300hr.
|
300hr.
|
|
Carbon Black Content(≥）
|
D1603
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
|
Carbon Black Dispersion(≥）
|
D5596
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
|
Oxidative Induction Time(OIT)(≥）
(a)Standard OIT(≥）
(b)High Pressure OIT
|
D3895
D5885
|
100min.
400min.
|
100min.
400min. |
100min.
400min. |
100min.
400min. |
100min.
400min. |
100min.
400min. |
100min.
400min. |
Produntion Display
Company Introduction
Shandong XiuHe Engineering Materials Co., Ltd., established in 2018, is a leading manufacturer and supplier of geosynthetics materials in China. We have over 40 professional advanced production lines with an annual production capacity of more than 300 million square meters, which enables our company to deliver fast to our customers.
Our products include geomembrane, geogrid, geotextile, geocell, geonet, drainage net, drainage board, erosion control geomat, BOP stretched net, safety fence, geocomposite, weed mat, geobags, geotubes, etc. These products are mainly used in the foundation construction such as roadways, railways, airports, mines, irrigation works, electric power, water and land protection, environment greening, etc. Shandong XiuHe Engineering Materials Co., Ltd. has established advanced laboratories for internal quality control.
We built strict quality control system of whole processes from raw materials testing, production process, to final products
testing. And we always improve our production technology in order to provide high quality products to our customers. We has got certificates such as ISO9001、 ISO14001、ISO45001. As a famous brand, our products have been exported to more than 30 countries and areas all over the world and get high reputation from customers. We always warmly invite more customers and friends to be our business partners.
Our products include geomembrane, geogrid, geotextile, geocell, geonet, drainage net, drainage board, erosion control geomat, BOP stretched net, safety fence, geocomposite, weed mat, geobags, geotubes, etc. These products are mainly used in the foundation construction such as roadways, railways, airports, mines, irrigation works, electric power, water and land protection, environment greening, etc. Shandong XiuHe Engineering Materials Co., Ltd. has established advanced laboratories for internal quality control.
We built strict quality control system of whole processes from raw materials testing, production process, to final products
testing. And we always improve our production technology in order to provide high quality products to our customers. We has got certificates such as ISO9001、 ISO14001、ISO45001. As a famous brand, our products have been exported to more than 30 countries and areas all over the world and get high reputation from customers. We always warmly invite more customers and friends to be our business partners.
We look forward to cooperating with you !
Packaging & Shipping
Packaging:
Strips packaging or Pallet Packaging
Lead time:
Winthin 10-15 days after receiving the deposit payment
Producing capacity:
Two 40FCL per week
FAQ
Q : Are you a factory or t
rading company?
A : We are a professional m anufacturer that specialized in geomembrane, geotextile, geogrid etc with ISO9001 certificate more than 6 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No. 366, Industrial Park North Road, Beijipo District, High-tech Zone, Taian City, Shandong Province,China . You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
A : We are a professional m anufacturer that specialized in geomembrane, geotextile, geogrid etc with ISO9001 certificate more than 6 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No. 366, Industrial Park North Road, Beijipo District, High-tech Zone, Taian City, Shandong Province,China . You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
