Quick Details
-
Tyre:
-
TPU
-
Stem:
-
28*96 OR 32*50
-
Degree:
-
30 or 45 degree
-
Color:
-
different color combination is available
-
Load Capacity:
-
150-200kg
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
A150C-WG-D32X50-2D45°
-
Housing Material:
-
aluminium alloy
-
Tyre:
-
TPU
-
Stem:
-
28*96 OR 32*50
-
Degree:
-
30 or 45 degree
-
Color:
-
different color combination is available
-
Load Capacity:
-
150-200kg

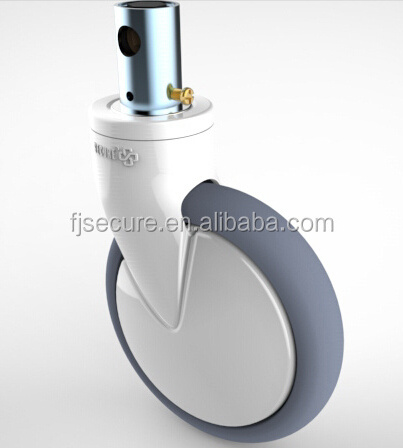

-1.Single wheel central locking castor with total brake or free, directional lock .
-2.Body swivel axis and wheel apply precision ball bearing.
-3.Castor size: 150mm
-4.Fitting type: 28*96 or 32*50
-5.Used on beds, medical trolley,medical equipment,etc
-6.Data
A150C-WG-D32X50-2D45 °
3D-3 central locking caster Caster with directional lock,total lock and free Functions.
Wheel with double ball bearing, it assures of stable rolling.A 3mm thick steel plate is
embedded in the inner wheel, which makes the wheel strong and more durable.Caster
housing is made of aluminium alloy material in high density, which enhance the load
capacity very well.Wear-resisting TPU wheel tread assures of quiet and stable rolling.
| Wheel Diameter | 150mm |
| Tread Width | 32mm |
| Caster Width | 64mm |
| Stem diameter | 32mm |
| Stem length | 50mm |
| Offset | 40mm |
| Swivel Radius | 115mm |
| Swivel interference | 230mm |
| Overall height | 185mm |
| Temperature | -30/+80℃ |
| Standard | EN12531 |
| Weight | 1.2KG |
| Dynamic load capacity | 180KG |
| Static load capacity | 200KG |
Secure offer OEM and ODM product, provide customized service for customers.
