Quick Details
-
Power:
-
0.75KW
-
Min. Lifting Height:
-
1750mm
-
Table Size:
-
600*600mm
-
Overall Dimensions:
-
1280*800*1750mm
-
Weight:
-
250kg
-
Product name:
-
Hydraulic Mast Lift
-
Material:
-
High-strength Aluminum Alloy Material
-
Color:
-
Customized Color Acceptable
-
Lifting speed:
-
4-6m/min
-
Control:
-
Control Panel + Remote Controller
-
Voltage:
-
110v 220v 240v 380v Customized
-
Move mode:
-
Manual
-
Tire:
-
Polyurethane Wheels
-
Usage:
-
Higher Level
-
Oil cylinder:
-
40mmx1
-
Certification:
-
ISO&CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tuhe
-
Power:
-
0.75KW
-
Min. Lifting Height:
-
1750mm
-
Table Size:
-
600*600mm
-
Overall Dimensions:
-
1280*800*1750mm
-
Weight:
-
250kg
-
Product name:
-
Hydraulic Mast Lift
-
Material:
-
High-strength Aluminum Alloy Material
-
Color:
-
Customized Color Acceptable
-
Lifting speed:
-
4-6m/min
-
Control:
-
Control Panel + Remote Controller
-
Voltage:
-
110v 220v 240v 380v Customized
-
Move mode:
-
Manual
-
Tire:
-
Polyurethane Wheels
-
Usage:
-
Higher Level
-
Oil cylinder:
-
40mmx1
-
Certification:
-
ISO&CE
Products Description

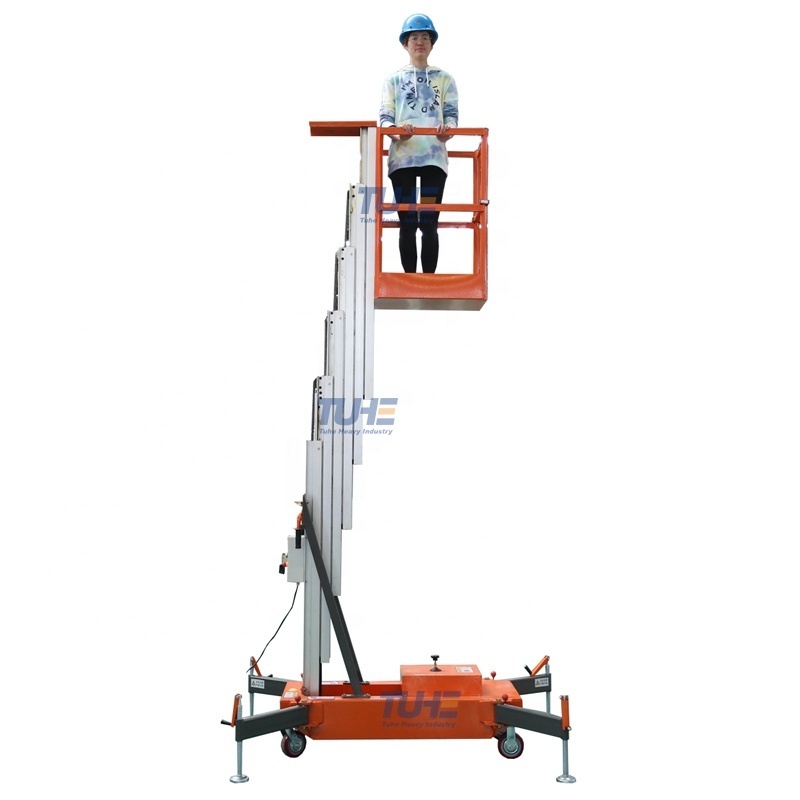

Small Aerial Mobile One Man Lift/Window Cleaning Elevator Aluminum Lift/Aerial Personal Lift ladder
mast lift/
Aluminum alloy lift
has the characteristics of sensitive movement, stable lifting, large load capacity, and convenient operation. It is mainly used in industries such as factories, airports, warehouses, stations and building decoration. It is sensitive to work, safe to use, and can be easily operated by only one person.
Technical Parameters
|
Model
|
THWY4-200
|
THWY6-200
|
THWY8-200
|
THWY10-200
|
THWY12-200
|
THWY14-
200
|
|
Max. platform height (m)
|
4
|
6
|
8
|
10
|
12
|
14
|
|
Load (kg)
|
200
|
200
|
200
|
200
|
200
|
200
|
|
Platform size (mm)
|
1100x600
|
1100x600
|
1150x600
|
1350x600
|
1450x600
|
1450x600
|
|
Overall size (mm)
|
1300x900x1750
|
1300x900
x1900
|
1360x900x2000
|
1560x970x1900
|
1660x970x2000
|
1660x1100x2350
|
|
Power (kw)
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Weight (kg)
|
380
|
420
|
550
|
600
|
700
|
800
|
After Sales Service
1. Free spare parts will be provided within 12 months after product is received, if quality problems occur due to non-human factors.
2. One year warranty (Free service under the premise of compliance with the use specifications).
2. One year warranty (Free service under the premise of compliance with the use specifications).
3. All-life long technical support, online and telephone service.
