Quick Details
-
Mounting Type:
-
depend on application system
-
Description:
-

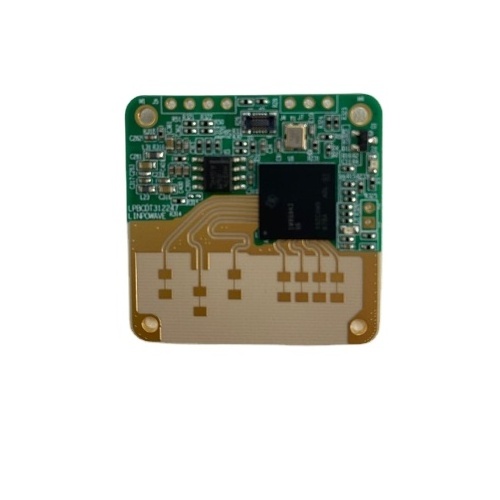

4D mmWave Radar H20, 60GHz mmWave Radar I20
-
Model Number:
-
H20
-
Place of Origin:
-
China
-
Brand Name:
-
LBWB
-
Theory:
-
miilimeter wave application
-
Product name:
-
60GHz millimeter Wave Radar H20
-
Model:
-
H20
-
Frequency Range:
-
60.0 ~ 64.0 GHz
-
Measuring Range:
-
0.1m ~20m
-
Distance Resolution:
-
0.04m
-
Accuracy:
-
0.02m
-
FOV Range:
-
Azimuth: ±60° Elevation: ±10°
-
Applicable Speed Range:
-
±30 (m/s)
-
Data Refresh Rate:
-
20Hz (adjustable)
-
Power:
-
5V 2A DC power input or 12V 0.5A
Quick Details
-
Use:
-
Healthy
-
Series:
-
Healthy mmWave Radar
-
Features:
-
high resolution
-
Mounting Type:
-
depend on application system
-
Description:
-
4D mmWave Radar H20, 60GHz mmWave Radar I20
-
Model Number:
-
H20
-
Place of Origin:
-
China
-
Brand Name:
-
LBWB
-
Theory:
-
miilimeter wave application
-
Product name:
-
60GHz millimeter Wave Radar H20
-
Model:
-
H20
-
Frequency Range:
-
60.0 ~ 64.0 GHz
-
Measuring Range:
-
0.1m ~20m
-
Distance Resolution:
-
0.04m
-
Accuracy:
-
0.02m
-
FOV Range:
-
Azimuth: ±60° Elevation: ±10°
-
Applicable Speed Range:
-
±30 (m/s)
-
Data Refresh Rate:
-
20Hz (adjustable)
-
Power:
-
5V 2A DC power input or 12V 0.5A
Products Description
Communication Interface
1.UART Communication: The product interface uses a 6-pin SM06B-CHS-TB vertical socket (or horizontal socket for flexibility in plugging and unplugging interfaces). The voltage level is a standard 3.3V, and the baud rate is 921600Bd. See Interface 1 in the diagram below.；
2.CAN Communication：Alternatively, CAN communication can be selected with a transfer rate of up to 1Mbps. Refer to the CAN interface shown in the diagram below；
3.Users can also choose different connectors according to their needs, facilitating integration with their own products.
Power Interface
1.DC Power Interface: Only DC power sources can be connected to the DC power interface；
2.In general, DC power sources ranging from 4.7V to 5.2V are acceptable. For higher voltage levels around 12V, only power input is required, and it should be ensured that the power supply can provide at least 5W；
3.Please note, DC power sources have positive and negative poles. When connecting, make sure to confirm the polarity at the interface.
Product Parameter
|
Product Name
|
60GHz Millimeter-Wave Radar U100
|
|
Model
|
U100
|
|
Frequency Range
|
60.0 ~ 64.0 GHz
|
|
Measuring Range (m)
|
0.4m ~ 100m
|
|
Distance Resolution (m)
|
0.4m
|
|
Accuracy (m):
|
0.2m
|
