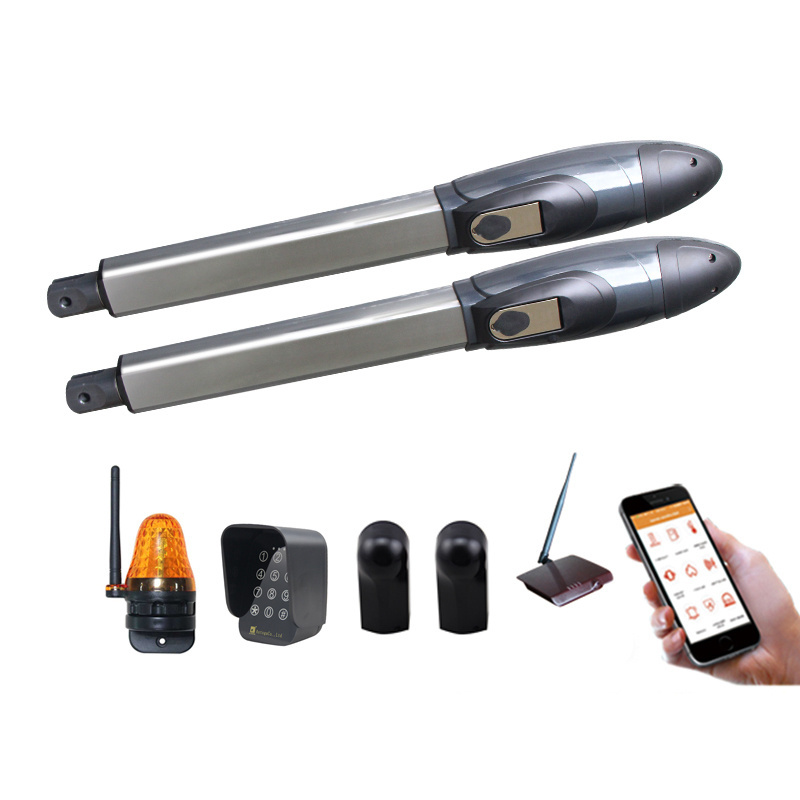

Automatic gate motor Dual Arms Door Closer Swing Gate Opener PKM-C03

Automatic gate motor Dual Arms Door Closer Swing Gate Opener PKM-C03

FOB Reference Price: Get Latest Price

≥2 Sets

US $230

≥100 Sets

US $216

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Home Office

Type:: swing gate opener, Automatic swing gate opener

Place of Origin:: Fujian, China

Brand Name:: Jujiang

Model Number:: PKM-C03

Motor voltage:: DC 24V

Single gate weight:: 350KG

Single gate width:: 3m

Rod travel:: 300mm

Gear type:: Worm gear

Actuator Running Speed:: 1.6 CM/S

Material:: Anti-UV

Work life:: at least 48000 times open/close

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Project Solution Capability:: total solution for projects

Application:: Home Office

Type:: swing gate opener, Automatic swing gate opener

Place of Origin:: Fujian, China

Brand Name:: Jujiang

Model Number:: PKM-C03

Motor voltage:: DC 24V

Single gate weight:: 350KG

Single gate width:: 3m

Rod travel:: 300mm

Gear type:: Worm gear

Actuator Running Speed:: 1.6 CM/S

Material:: Anti-UV

Work life:: at least 48000 times open/close

Product Description

Automation Dual Arms Door Closer Swing Gate Opener PKM-C03

Input power	AC 220V /110V	Max single gate weight	350 KG
Motor voltage	DC 24V	Max single gate length	3 M
Solor power system	Support	Max gate open angle	110°
Max absorbed power	144W	Actuator Speed	1.6 m/s
Rod's max travel	300mm	Protection class	IP 55

Advantage Technology

Function & Features

1.DC 24V motor compatible with back up power supply

2.Soft start and slow stop

3.Anti-theft cluth design can switch the operation to manual control easily power failure

4.Auto stop if any obstacles detected during operation

5.Adjustable opening/closing interval time of double gate leaves

6.Available to set pedestrain mode

7.Built in max motor running time adjustable for multiple safety protection

Function & Features

8.Separately adjust the force of double gate leaves

9.Single leaf of double leaves operation

10.Easy installation and low maintenance

11. 12 months guarantee , lifelong post sales service

Related Accessories

DC 24V swing gate control panel

Name: EG-22A

Feature:

1) Auto closing

2) Adjustable resistance sensitivity

3)Termianl connect for photocell ,flash lamp, keypad

4) Extral limit switch connect terminal

5) Digtal display

Smart garage door flash light

Name: JD-06
Work voltage: 12-265 V
1) Antenna can increase the working range of control

board.
2) IP54 class waterproof

3) Two install mode optional

4)CE certificate

360° PCB adjust angle photocell sensor

Name: HW-08
Adjust angle: ± 180°
1) Wire connection

2) Max work distance 12m in the direct sunlight

Wireless access control keypad

Name: TKM-01
Waterproof: IP64
1) Two channels indepedent control two different

door

2) Touch control

3) Can be installed in outdoor enviroment.

Our company

Packing & Delivery

Sample will be sent out within 3work day , order will be sent within 15 work days.

Shipping by DHL , UPS , TNT , FEDIX , EMS , AIR , SEA , ARAMEX ...
