Eptfe Membrane Laminated with Foam Pressure Bottle Seal Liner Foil Seal Liner

Eptfe Membrane Laminated with Foam Pressure Bottle Seal Liner Foil Seal Liner

FOB Reference Price: Get Latest Price

≥20000 Pieces

US $0.05

≥50000 Pieces

US $0.04

≥100000 Pieces

US $0.03

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Feature:: Waterproof,Dustproof,Breathable

Custom Order:: Accept

Place of Origin:: Fujian, China

Brand Name:: Spider

Usage:: Agriculture Fertilizer Application, Bottles

Model Number:: CR Induction Vent Cap Liners

Pressure:: High Pressure

Port Size:: Standard

Color:: Sliver

Product Name:: Aluminum Foil Induction Seal Vent Filter Liner

Certificate:: ISO9001

Media:: Gas

Quick Details

Material:: Aluminium-Plastic

Type:: Bottle Stopper

Use:: Bottles

Feature:: Waterproof,Dustproof,Breathable

Custom Order:: Accept

Place of Origin:: Fujian, China

Brand Name:: Spider

Usage:: Agriculture Fertilizer Application, Bottles

Model Number:: CR Induction Vent Cap Liners

Pressure:: High Pressure

Port Size:: Standard

Color:: Sliver

Product Name:: Aluminum Foil Induction Seal Vent Filter Liner

Certificate:: ISO9001

Media:: Gas

FEATURES AT A GLANCE

Custom Waterproof Breathable Packaging Vent E-PTFE IP67/IP68 Aluminium Sealing Foil Pressure Sensitive Seal Vented Liner 52 Mm

Product Name	Vented Wads,Seal Vent Liner,Aluminum Foil,Vent Liners,Chemical Packaging
Material	Aluminum Foil+E-PTFE
Color	Silver
Physical	Air Permeable,Dustproof,Waterproof,Oleophobic,Sealing
Temperature	-40℃ -125℃
IP Rate	IP 67
Air Perm	≥ 50L/h@70mbar
Air Flow	500-3000ml/min/cm2
Ingress Protection(lP rate)	IP671/1P682
Structure	ePTFE II PE foam
Liner material	PE
OEM,ODM Service	Available

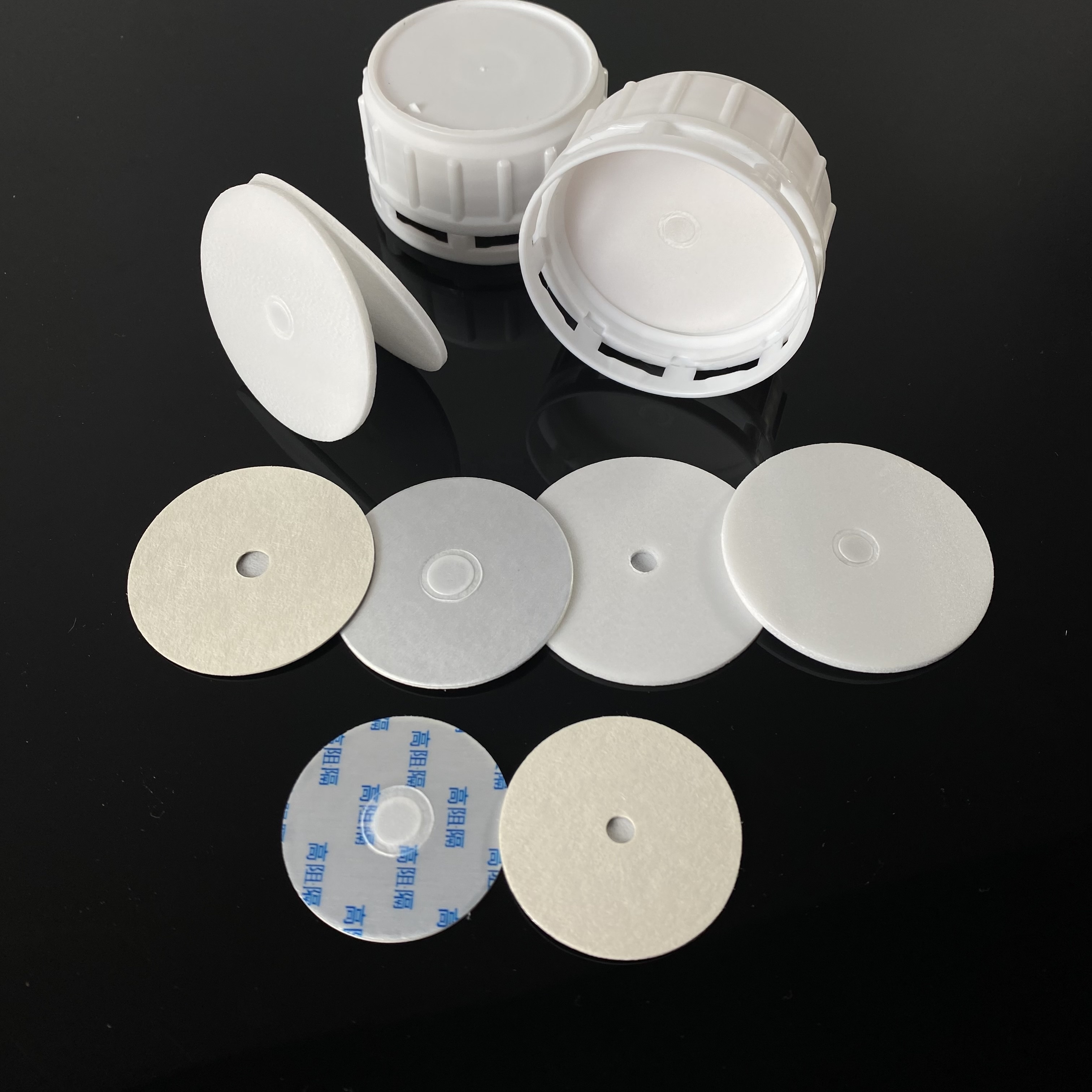

Breathable Liners

A luminum foil induction liners are suitable for small volume packaging (less than 5L), so it is widely used in the packaging of household chemicals. It has various sizes and models. Customers can choose according to casing materials and their specific needs.

I f the casing is made of PE, customers can choose aluminum foil induction liners with PE membrane attached. If it is PET, then
with PET membrane attached.

Customization: SPIDER Tech’s protective vents can be customized to match your products in spec., color, property and we can provide you with specific solutions. For more information, please contact us freely.

D on't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.

Send an inquiry to get a free sample，Please click here!

Design

How pulp induction liners work?

Gas passes through the microporous E-PTFE membrane ,diffuses through the pulp layer and is directed to the cap threads.Pulp
induction liners do not require a hole in the cap and can be optimized to vent with minimal vapor loss.

Question 1:Do your packagings suffer bloating,swelling even bursting problems?
Question 2:Are you looking for a simple ,effective and reliable venting solution?
Question 3:Do you want to work with the leader supplier in the venting market?

S uggestions for Storage and Transportation: The liner material is sensitive to heat. A high-temperature environment will damage
the liner and affect its performance. Therefore, it can only withstand short-term storage at 0-40℃. If it needs to be used for a long time, we recommend liners and caps with liners be placed indoor with temperature between 5-35℃ and humidity between 30%-75%.
Otherwise, liners will curl and deform, and the aluminum foil will be separated from the paperboard, making it unusable.
Handling Method: If the storage site does not meet the above requirements, please place these liners in an environment where the
temperature is between 15℃-30℃ for 48 hours before use, and then decide whether to actually use them based on liner conditions.

Technical FAQs:

1. Q: What are the main applications of breathable liner?

A: Mainly used in chemical, agricultural, food and other packaging fields

2. Q: How to choose the breathable liner?

A: Theselection of breathable plug depends on the type of packaging liquid, sealing form, installation size, breathablerequirement andother items. Please consult the sales enginner details.

3.Q: What's the characteristic of breathable liner?

A: Dustproof, Airpermeable, leakproof.

4. Q: Will the container/bottle leak when using breather liner?

A: Generally no leaks after using breather plug, the main cause of leakage!a. Bottle/container/Buket be inverted or turned over for a long time, resulting in leakage after airtight.b. There is no hole on the outer cover, and the gas breaks through the breather membrane causing leakagec. The liquid's surface tension is too low, causing leakage.

5. Q: How about the acid and alkali resistance of the breather liner??

A: Therecommended PH is 5 to 9 for conventiongl liner.

Application Case

Typical application: packing for Inorganic fertilizer、 pesticides、organic fertilizer、hydrogen peroxide etc

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Our advantages

1. A number of master and doctoral students with polymer (polymer) materials background. 2.10~20% of the company's revenue is used for new product R&D, design, analysis, test, technical consulting expenses, intellectual property protection. 3.A number of independent intellectual property rights, as well as product registered trademarks.
