Quick Details
-
Color:
-
red, blue, black, yellow 2016 hot products 300cc utv joyner buggies
-
MAX SPEED:
-
95 km/h
-
Tire:
-
10 inch
-
BRAKE:
-
Front disc brake, Rear disc brake
-
Start:
-
electrical starting
-
Engine Capacity:
-
300CC
-
Battery:
-
12V 9AH
-
Model:
-
JLU-01
Quick Details
-
Displacement:
-
>300cc
-
Brand Name:
-
JINLING ATV
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
red, blue, black, yellow 2016 hot products 300cc utv joyner buggies
-
MAX SPEED:
-
95 km/h
-
Tire:
-
10 inch
-
BRAKE:
-
Front disc brake, Rear disc brake
-
Start:
-
electrical starting
-
Engine Capacity:
-
300CC
-
Battery:
-
12V 9AH
-
Model:
-
JLU-01

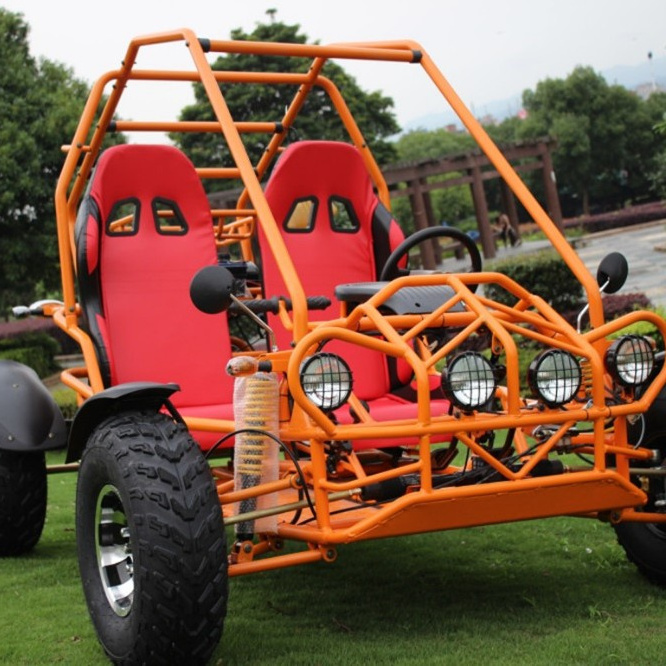

2016 hot products 300cc utv joyner buggies
2016 hot products 300cc utv joyner buggies
|
IDENTIFICATION |
|
| 1.Model No. | JLA-U-01 |
|
2.Warranty |
one year for engine, 6months for other parts |
| 3.Model No. in EEC certifcate | |
| ENGINE | |
| 4.Cylinder | Single |
| 5.Cooled System | water cooled |
| 6.Engine Stroke | 4 Stroke |
| 7.Bore*Stroke(mm) | 57.4×57.8mm |
| 8.Displacement(ml) | 300cc |
| 9.Max.power(kw/rpm) | 13kw/7500rpm |
| 10.Max.torque(n.m/rpm) | 22N.m/5000rpm |
| 11.Ignition Type | CDI |
| TRANSMISSION | |
| 12.Transmission Type | CVT F-N-R,Reverse gear |
| 13.Primary Drive(Rear Wheel) | Chain 4x2 |
| 14.Reverse | yse |
| 15.Max Speed(km/h) | >70 |
| WHEEL | |
| 16.Front wheel | 23-10-10 |
| 17.Rear wheel | 22-10-10 |
| SUSPENSION | |
| 18.Front Suspension | Double A-Swing Arm |
| 19.Rear Suspension | Swing Arm |
| BRAKE SYSTEy | |
| 20.Front brake | Disc |
| 21.Rear brake | Disc |
| 22.Braking distance | 8m(30km/h) |
| TECHINCAL SPECIFICATIONS | |
| 23.Product Dimensions(mm) | 2300x1640x1570 |
| 24.Ground Clearance(mm) | 160 |
| 25.Wheelbase(mm) | 1770 |
| 26.Mini Turning Radius(mm) | 2800mm |
| 27..gross weight(kg) | 320 |
| 28. net weight(kgs) | 268 |
| 29.Fuel Capacity(L) | 7L |
| 30.Fuel consumption | 9L/100KM |
| SEAT | |
| 31.Seat Height(mm) | 480 |
| 32.Number of Seats | 2 |
| COLOR | |
| 33.Standard Color | Red/Yellow/Blue/Green/Black/White |
| 34.Optional Color | Green camo,Yellow camo,Snow Camo,Metallic,Carbon |
| LOADING | |
| 35.Packing Size(mm) | 1800x1000x750 (Steel frame inside,carton outside) |
| 36.Quantity | 20FT:18PCS, 40HQ:42PCS |
| PRICE | |
| 37.MOQ | 1X20FT |
| 38.Price(FOB Ningbo) |
1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. Warranty: engine and the frame is one year. the other is 5 months.
1. For the sample : we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. The UT V(Quad) Color can choose by yourself on the ordinary colors,Also can do the custom-made
3. Shipping :General by the sea shipping, port to port. can't do the door to door.
4. The Package : The bike have been 90% assembled, with the accessory kit can be do rapid
assembly. Don't need professional tools and mechanic.
5. Delivery : we have no stock, all of these ATV is production by the order, Just for one order, the production time general will take about 15-20days.
6. If for the EEC Model , can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO).
7. Warranty : Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us.
