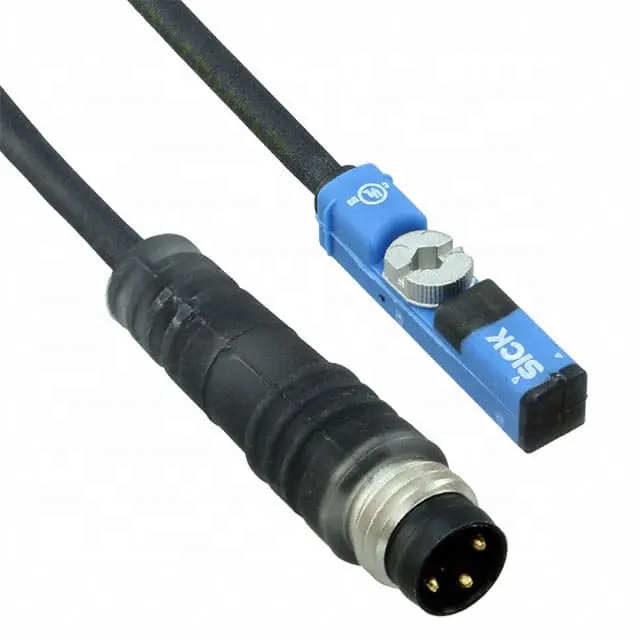

SICK original in stock Magnetic Cylinder Sensors sick T-slot MZT8 magnetic cylinder sensor switch

SICK original in stock Magnetic Cylinder Sensors sick T-slot MZT8 magnetic cylinder sensor switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $50

≥10 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: Allen Key 1/4 turn "one-handed"

Description:: T-slot MZT8 magnetic cylinder sensor

Model Number:: MZT8-03VPS-KP0

Place of Origin:: Zhejiang, China

Brand Name:: YUMO

Theory:: Magnetic cylinder sensors

Output:: PNP

Voltage - Supply:: Supply voltage 10 V DC-30 V DC

Output Type:: PNP

Frequency:: Switching frequency 1000 Hz

Size / Dimension:: Housing length 24 mm

Current - Output (Max):: Continuous current Ia ≤ 200 mA

Application:: harsh environment applications, etc

Output type:: PNP

Enclosure rating:: IP69K

Condition:: 100% Original and new

Brand:: Sick

Warranty:: 1 year

Quick Details

Use:: T-slot cylinder installation

Series:: T-slot MZT8 magnetic cylinder sensor

Features:: mini

Mounting Type:: Allen Key 1/4 turn "one-handed"

Description:: T-slot MZT8 magnetic cylinder sensor

Model Number:: MZT8-03VPS-KP0

Place of Origin:: Zhejiang, China

Brand Name:: YUMO

Theory:: Magnetic cylinder sensors

Output:: PNP

Voltage - Supply:: Supply voltage 10 V DC-30 V DC

Output Type:: PNP

Frequency:: Switching frequency 1000 Hz

Size / Dimension:: Housing length 24 mm

Current - Output (Max):: Continuous current Ia ≤ 200 mA

Application:: harsh environment applications, etc

Output type:: PNP

Enclosure rating:: IP69K

Condition:: 100% Original and new

Brand:: Sick

Warranty:: 1 year

SICK original in stock Magnetic Cylinder Sensors sick T-slot MZT8 magnetic cylinder sensor switch

Features

Cylinder type	T-slot
Cylinder types with adapter	Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2
Housing length	24 mm
Switching output	PNP
Switching frequency	1,000 Hz
Output function	NO
Electrical wiring	DC 3-wire
Enclosure rating	IP68 ¹⁾

¹⁾ According to EN 60529 (IP 67 / IP 68).

Mechanics/electronics

Supply voltage

10 V DC ... 30 V DC

Power consumption

10 mA ¹⁾

Voltage drop

≤ 2.2 V

Continuous current I _a

≤ 200 mA

Protection class

III

Time delay before availability

25 ms

Response sensitivity, typ.

2.6 mT

Overrun distance, typ.

3 mm

Hysteresis, typ.

0.7 mT

Reproducibility

≤ 0.1 mT ²⁾

Reverse polarity protection

Short-circuit protection

Power-up pulse protection

Ambient operating temperature

–30 °C ... +80 °C

Shock and vibration resistance

30 g, 11 ms / 10 ... 55 Hz, 1 mm

EMC

According to EN 60947-5-2

Connection type

Cable with connector M8, 3-pin, drag chain use, 0.3 m

Connection type Detail
Conductor cross-section	0.14 mm²
Cable diameter	Ø 2.9 mm
Bending radius	With fixed installation > 3 x cable diameter
	For flexible use > 10 x cable diameter
Torsion force	± 270° / 10 cm
Torsion cycles	> 2,000,000
Cable outlet	Axial
