Quick Details
-
Engine Brand:
-
top brand
-
Travel Speed:
-
14.7km/h
-
Grade Ability:
-
30%
-
Place of Origin:
-
China
-
Brand Name:
-
Evangel
-
Dimension(L*W*H):
-
4780*2100*3200mm
-
Drum:
-
Pneumatic Roller
-
Exciting Force:
-
300 KN
-
Product name:
-
Single drum rollers & soil compactors
-
Model:
-
LTP1016
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Engine model:
-
4BT3.9
-
Rated Power:
-
75kW
-
Working width:
-
2280mm
-
Tyre quantity(front+rear):
-
4+5
-
Wheelbase:
-
3700mm
Quick Details
-
Type:
-
Pneumatic Roller, Pneumatic Roller
-
Power:
-
75 KW
-
Weight:
-
10TON, 10000kg
-
Engine Brand:
-
top brand
-
Travel Speed:
-
14.7km/h
-
Grade Ability:
-
30%
-
Place of Origin:
-
China
-
Brand Name:
-
Evangel
-
Dimension(L*W*H):
-
4780*2100*3200mm
-
Drum:
-
Pneumatic Roller
-
Exciting Force:
-
300 KN
-
Product name:
-
Single drum rollers & soil compactors
-
Model:
-
LTP1016
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Engine model:
-
4BT3.9
-
Rated Power:
-
75kW
-
Working width:
-
2280mm
-
Tyre quantity(front+rear):
-
4+5
-
Wheelbase:
-
3700mm

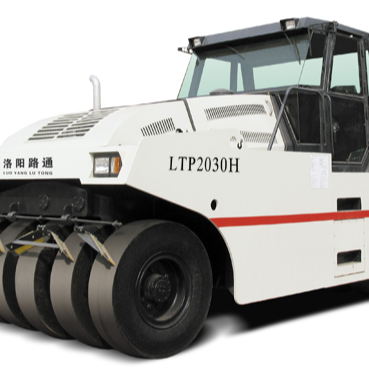

Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
1. Low gravitational center designed for safe and comfortable operation.
2. LTP1826/1826H/2030/2030H adopt 6BTA diesel engine. Powerful strength, which is suitable to all environments.
3. LTP1016/1016H adopt 4BT3.9 diesel engine. Powerful strength, which is suitable to all environments.
4. LTP1016/1826/2030, mechanical traveling, three forward speed and two backward speeds changes.
5. LTP1016H/1826H/2030H, hydraulic traveling, CVT, stepless speed changes, easy and reliable to operate.
6. Glass fiber reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.
| MODEL | LTP1016 | |
| Operating mass | ||
| Without ballast | kg | 10000 |
| With ballast | kg | 16000 |
| Max. travel speed | Km/h | 14.7 |
| Tyre quantity(front+rear) | pcs | 4+5 |
| Grade ability | % | 30 |
| Min.turning radium | mm | 7500 |
| Compaction width | mm | 2280 |
| Wheelbase | mm | 3700 |
| Overall length | mm | 4780 |
| Overall width | mm | 2100 |
| Overall height | mm | 3200 |
| Diesel power | KW | 75 |
| Diesel model | 4BT3.9 |
