Quick Details
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
0.5
-
Power:
-
16.8 W
-
Dimension(L*W*H):
-
4*4*16
-
Maximum pressure:
-
207 bar
-
Maximum Flow Rate:
-
11.4 L/Min
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel/Ductile Iron
-
MOQ:
-
5 PCS
-
Voltage:
-
Standard
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Other
-
Brand Name:
-
OEM/ODM/Kai enli
-
Place of Origin:
-
Hunan, China
-
Pressure:
-
Standard
-
Structure:
-
Standard
-
Weight:
-
0.5
-
Power:
-
16.8 W
-
Dimension(L*W*H):
-
4*4*16
-
Maximum pressure:
-
207 bar
-
Maximum Flow Rate:
-
11.4 L/Min
-
After Warranty Service:
-
Technical Support/on line support
-
Material:
-
Aluminum/Stainless steel/Ductile Iron
-
MOQ:
-
5 PCS
-
Voltage:
-
Standard
PRODUCT SPECIFICATIONS
Product name

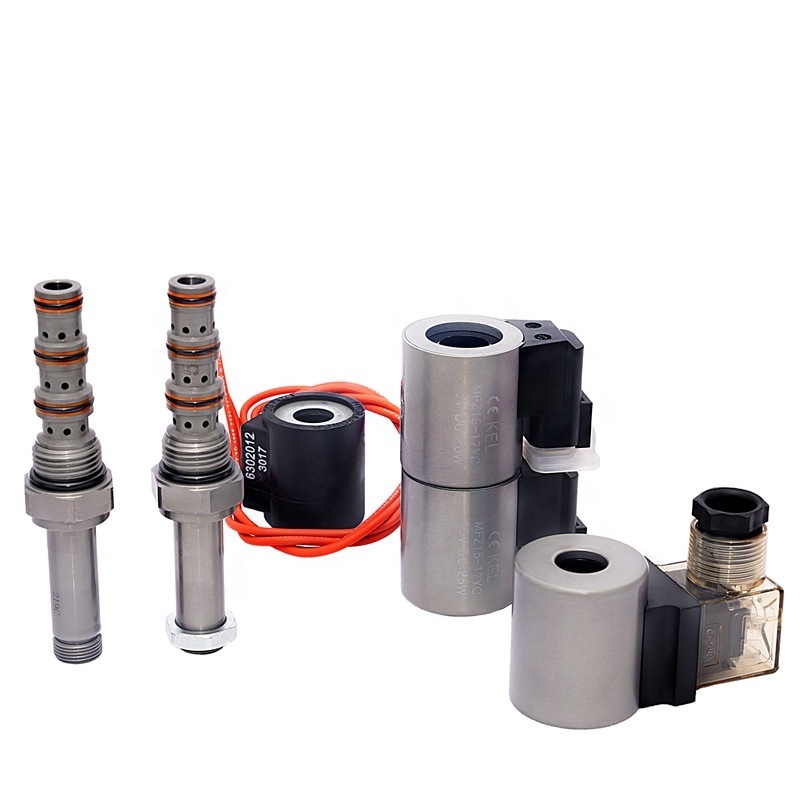

Hydraulic solenoid valves, 4-way,3-position Cartridge Valves, Direct Acting threaded directional Valves
Item NO
KSV08-47C-0-N
(Standard) ( other similar items are available, Please see the below for more order details.)
Advantage and Features
1.
Rated solenoid coil suitable for continuous operation
2.
Valve spool and valve sleeve produced by hard treatment which are durable
3.
Coil voltage and terminal are optional
4.
Efficient wet armature structure
5.
The voltages of Plug-in are interchangeable
6.
Emergency manual option
7.
Waterproof E type coil of
IP69K is optional, will keep normal operation
in high temperature and humidity environment
8.Standard valve opening.
9.Coil design: Solid Pattern molding
technical data
Item No:
KSV08-47C-0-N
|
Item
|
Data
|
|
|
|
Flow
|
Please see the Pressure Drop VS flow Curve Graph
|
|
|
|
Cavity
|
VC08-4
|
|
|
|
filtration
|
See the attchment of Permissisble degree of fluid contamination
|
|
|
|
Max Working Pressure
|
207 Bar
|
Max 207 Bar（for port 1)
|
|
|
Rated Flow
|
11.4 L/Min
|
|
|
|
Internal Leakage
|
Max 164 ml/min at 207 Bar
|
|
|
|
Working Temperature
|
-40°F to +250°F (-40°C to +120°C)
|
|
|
|
Coil Power
|
16.8 W
|
|
|
|
Seal Kits
|
Standard Buna Seals
|
|
|
|
Voltage for E coil
|
12VDC
|
24VDC
|
|
|
Output Current for E type coil
|
1.4A
|
0.7 A
|
|
|
Output Current for Standard coil
|
1.2A (12 VDC)
|
0.13A (115 VAC)
|
|
|
Nominal Load for Coil
|
Continuous from 85% to 115% of nominal voltage
|
|
|
|
Fluid
|
Mineral-based fluids or Synthetic lubricating oil with viscosities of 7.4 to 420 cSt.(矿物油粘度)
|
|
|
|
Body Material
|
Steel & Ductile Iron rated to 350 Bar
|
|
|
Working Principle
The valve
KSV08-47C-0-N
series stop the oil flow to any ports
.
when the coil 1 energized then
will allow the oil flow from
③
to
④
and
②
to
① direction . after coil 2 energized ,will allow the oil flow from
③
to
②
and
④
to
①
direction .
The flow rate of working oil port is not banlanced So Large Flow of return oil will lead into port
②
. port
①
can be fully pressurized and not
suggest
to be the oil inlet.
Sympol
Pressure Drop VS. Flow
Dimension
0
How to Order
Please see the below order details for more information, Special design are availble welcome to contact us !
