Quick Details
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16F
-
Dimension(Long * Breadth * High):
-
5677x3500x3402mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Engine:
-
SC11CB184G2B1
-
Gross Power:
-
131/175/1800
-
Optional model:
-
all kinds of type bulldozer
-
Optional engine:
-
WD10G178E25
-
Rated power:
-
120kw(160hp)
-
Min. fuel consumption:
-
214 g/kW.h
-
Other brand:
-
HBXG/PENGPU
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt
Quick Details
-
Machine Weight:
-
17000kg
-
Dozing Capacity:
-
5m³, 7.8m³, 5.4m³, 4.3m³, 4m³, 6.5m³, 6m³
-
Place of Origin:
-
Heilongjiang, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
SD16F
-
Dimension(Long * Breadth * High):
-
5677x3500x3402mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Engine:
-
SC11CB184G2B1
-
Gross Power:
-
131/175/1800
-
Optional model:
-
all kinds of type bulldozer
-
Optional engine:
-
WD10G178E25
-
Rated power:
-
120kw(160hp)
-
Min. fuel consumption:
-
214 g/kW.h
-
Other brand:
-
HBXG/PENGPU
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt

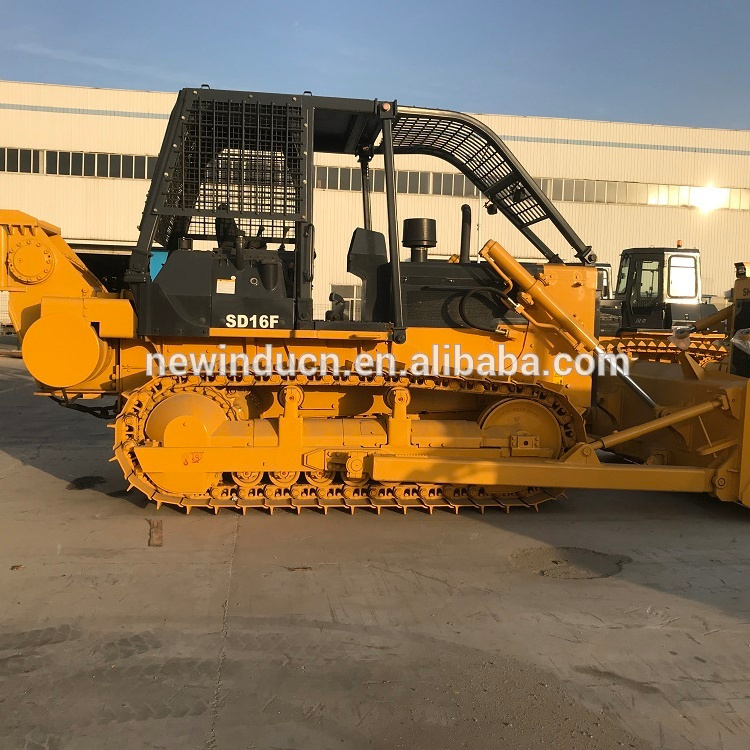

Shantui 160HP SD16F Bulldozer with Winch
Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb famous engine for European markets and optional engines for other markets. The SD16 provides high performance with strong reliability, with Shantui’s trademark value.
|
160 HP
specifications: |
Blade Type | Straight-tilt | Angle | U-Blade |
| Min. ground clearance: | 400 mm | 400 mm | 400 mm | |
| Ground pressure: | 0.072 MPa | 0.074 MPa | 0.074 MPa | |
| Min. turning radius: | 4.466 m | 4.513 m | 4.545 m | |
| Gradeability: | 30° | 30° | 30° | |
| Track gauge: | 1880 mm | 1880 mm | 1880 mm | |
| ENGINE | Model & type |
SC11CB184G2B1/ WD10G178E25; water-cooled, in-line, 4-stroke injection direct |
||
| Rated power | 120 kW | |||
| Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
| Piston displacement | 9.726 L | |||
| Min. fuel consumption | 214 g/kW·h | |||
| Maximum torque | 765 N·m@1300 rpm | |||
|
POWER
TRANSMISSION SYSTEM |
Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Main drive |
Spiral bevel gear, single stage speed reduction, splash lubrication |
|||
| Steering clutch |
Lubricated, multidisc, spring loaded, hand hydraulically separated, inter-linking with steering brake |
|||
| Steering brake |
Lubricated, floating band structure, foot brake with hydraulic booster |
|||
| Final drive |
2-stage speed reduction of spur gear, splash lubrication |
|||
****************************************************************
