Quick Details
Quick Details
-
Place of Origin:
-
Afghanistan
-
Brand Name:
-
cs
-
Model Number:
-

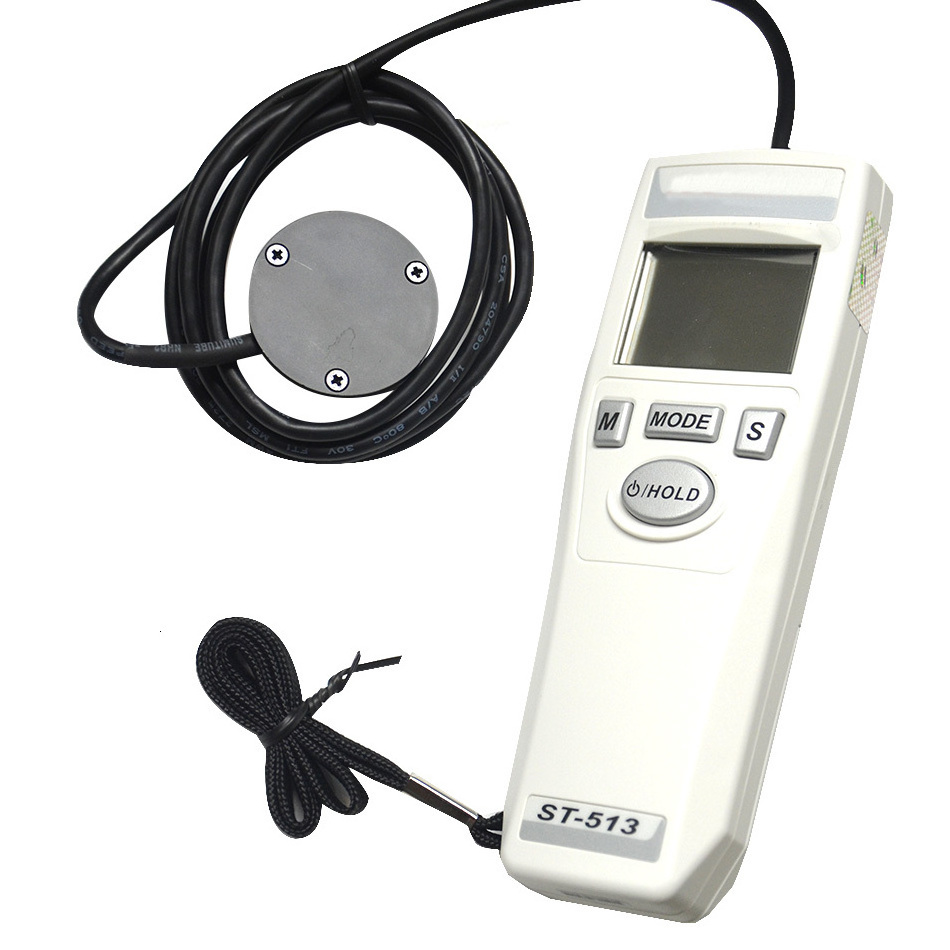

ST-513 ST513
Description:
These instruments are designed to measure ultraviolet light in the range from 280 to 400 nanometers (UVAB). The good illumination range of each kind of meter allow users to conduct the most precise quantitative measurements of ultraviolet radiation.
Features:
1.Backlit LCD and 4 Digits dual display
2.High and Low measurements
3.Range in a unit mW/cm2 or uW/cm2
4.Socket of tripod mounting
5.Automatic measuring
6.Low battery indicator
7.Magnetic mount
8.20 points memory
Applications:
1.Radiometry and Laboratory measurements
2.UV-curing and printing industry
3.Lamp UV Intensity & Aging
4.Industrial process monitoring
5.Clinical studies & phototherapy
6.Semiconductor fabrication
7.Environment monitoring
Specification:
| Specifications | UVC (ST512) | UVA (ST510) | UVAB (ST513) |
| Spectrum Range | 220~275 | 320~380 | 290~370 |
| Calibration Point | 254 nm | 365 nm | 365 nm |
| Illumination Range | 1 uW/cm2 ~ 9999 uW/cm2 / 0.01 mW/cm2 ~ 40.00 mW/cm2 | ||
| Accuracy 23 ±5 o C(73.5 ±9 o F) | ±4% ±1 digit | ||
| Over Range | Indication "-HI-" | ||
| Zero Adjust | YES | ||
| Auto Record | YES | ||
| Sample Time | Approx. 0.3 sec. | ||
| Display | Backlit LCD and Dual Display | ||
| Memory | 20 points and 1 for interval time | ||
| Operation Temperature | 0~50 o C(32~122 o F); 10~90% RH | ||
| Battery Type | 9V (006P, IEC6F22, NEDA1604) | ||
| Weight | Approx. 90g | ||
| Dimension | 140 x 49 x 29 cm (5.51 x 1.93 x 1.14 inch) | ||
| Accessory | UV sensor probe, Instruction Manual | ||
