Quick Details
-
Model Number:
-
CYB1517
-
Product Name:
-
Industrial Flush Diaphragm 4-20ma Pressure Transmitter
-
Range:
-
-0.1MPa...0kPa~10kPa...7MPa
-
Supply Voltage:
-
+12VDC~+30VDC( Calibration value: +24VDC)
-
Output signal 1:
-
4mA~20mA( overlay HART protocol)
-
Protection level:
-
IP66(Customizable IP67 / IP68)
-
Output signal 2:
-
RS485
-
Output signal 3:
-
0~10V(Output range can be customized)
-
Output signal 4:
-
I2C; SPI
-
Working temperature range:
-
-40 ° C ~ 150 ° C
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
HUATIAN
-
Model Number:
-
CYB1517
-
Product Name:
-
Industrial Flush Diaphragm 4-20ma Pressure Transmitter
-
Range:
-
-0.1MPa...0kPa~10kPa...7MPa
-
Supply Voltage:
-
+12VDC~+30VDC( Calibration value: +24VDC)
-
Output signal 1:
-
4mA~20mA( overlay HART protocol)
-
Protection level:
-
IP66(Customizable IP67 / IP68)
-
Output signal 2:
-
RS485
-
Output signal 3:
-
0~10V(Output range can be customized)
-
Output signal 4:
-
I2C; SPI
-
Working temperature range:
-
-40 ° C ~ 150 ° C

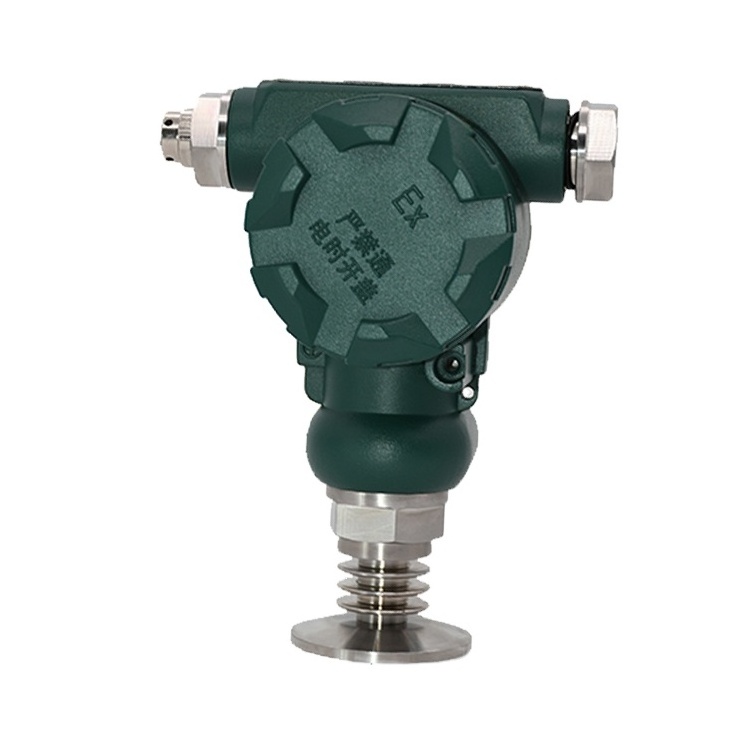

CYB1517 Clamp Type IP65 Flush Diaphragm Sanitary Piezoresistive Pressure Transmitter
Recommend Products
Product Paramenters
|
Range
|
-0.1MPa…0kPa～10kPa…7MPa
|
|
Supply Voltage
|
+12VDC～+30VDC（ Calibration value: +24VDC ）
|
|
Accuracy
|
0.1 0.25 0.5
|
|
Output
|
4mA～20mA（ overlay HART protocol ）; RS485;
0～10V(Output range can be customized); I2C; SPI |
|
Protection level
|
IP66(Customizable IP67 / IP68)
|
Order Guide
Details Images
Features
◆ Clamp pressure interface;
◆ Fully welding diaphragm, reliable sealing
◆ Walking is flexible and diverse
◆ Applications in food, medicine and other industries
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● fire Internet of things
