Quick Details
-
Model Number:
-
DTM152M
-
place of Origin:
-
jiangsu, China (Mainland)
-
model:
-
DTM152M
-
magnification:
-
30
-
weight:
-
6.5kg
-
brand Name:
-
dadi total station
-
size:
-
180mm175mm355mm
-
Application:
-
Surveying
-
Type:
-
Reflective
Quick Details
-
Warranty:
-
2 years, 1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
dadi
-
Model Number:
-
DTM152M
-
place of Origin:
-
jiangsu, China (Mainland)
-
model:
-
DTM152M
-
magnification:
-
30
-
weight:
-
6.5kg
-
brand Name:
-
dadi total station
-
size:
-
180mm175mm355mm
-
Application:
-
Surveying
-
Type:
-
Reflective
Product Description
Specification
|

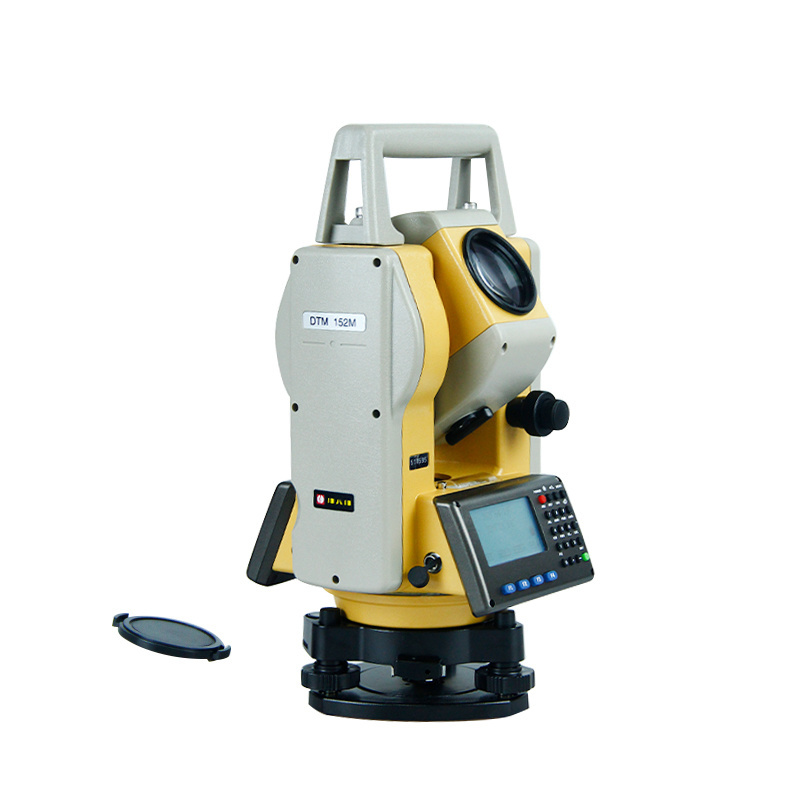

DTM152 Laser Ranging Total Station
|
|
|
||
|
Distance Measurement Section
|
|
|
||
|
Range
|
Single prism
|
3000m
|
||
|
|
Three prism
|
5000m
|
||
|
Accuracy
|
±(2mm+2ppm·D), ±(3mm+2ppm·D)
|
|
||
|
Unit
|
|
m/ft
|
||
|
Display
|
Maximum
|
99999999.9999m
|
||
|
|
Minimum
|
0.1mm
|
||
|
Measuring time
|
|
Precise model:1S, Track model:0.8S
|
||
|
Number of time Set
|
|
1 ~ 99
|
||
|
Meteorologiccorrection
|
|
Input the value and correct automatic
|
||
|
Prismconstant
|
|
Input the value and correct automatic
|
||
|
Angle Measurement Section
|
|
|
||
|
Method
|
|
Absolute coding
|
||
|
Grating diameter
|
|
79mm
|
||
|
Minimum reading
|
|
1″
|
||
|
Detection
|
Horizontal
|
Diametrical detection
|
||
|
|
Vertical
|
Diametrical detection
|
||
|
Accuracy
|
|
2″
|
||
|
Telescope Section
|
|
|
||
|
Imaging
|
|
Positive
|
||
|
Length
|
|
170mm
|
||
|
Effectiveaperture
|
|
48mm
|
||
|
Magnification
|
|
30×
|
||
|
Angle of vision
|
|
1.5°
|
||
|
Distinguishability
|
|
3.5″
|
||
|
Minimum focus distance
|
|
1.5m
|
||
|
Compensator
|
|
|
||
|
System
|
|
Double axis photoelectric tilt sensor or
Single axis liquid tilt sensor |
||
|
Working range
|
|
±3′
|
||
|
Distinguishability
|
|
1″
|
||
|
Display Section
|
|
|
||
|
Type
|
|
Double sides,160×80 LCD Display
|
||
|
Data Transmission
|
|
|
||
|
Port
|
|
USB,RS-232C
|
||
|
Capacity
|
|
40,000 data at least
|
||
|
Others
|
|
|
||
|
Plummet
|
|
Optical or Laser plummet
|
||
|
Power
|
|
Rechargeable lithium battery,DC7.2V,3000mAh
|
||
|
Continuous working time
|
|
8 hours at least
|
||
|
Size
|
|
168×165×348mm
|
||
|
Weight
|
|
6.8Kg
|
||
|
Working temperature
|
|
-20℃ ~ 50℃
|
||
