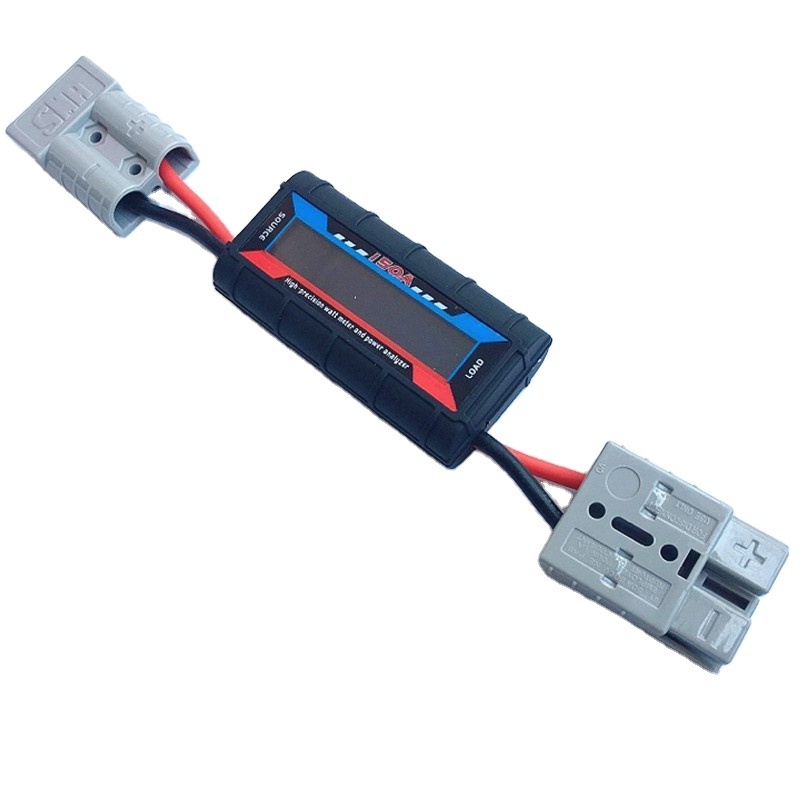

150A Digital LCD Screen Watt Meter Power Analyser System Solar Caravan Plug Kit

150A Digital LCD Screen Watt Meter Power Analyser System Solar Caravan Plug Kit

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8.69

≥10 Pieces

US $8.68

≥50 Pieces

US $8.59

≥100 Pieces

US $8.56

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Engineer Solar

Model Number:: A150A

Operating Temperature:: -25~+55°C

Dimensions:: 85*42*25mm

Name:: Watt Meter Kits

Display:: LCD Display

Color:: Blue

Warranty:: 2 Years

Current test range:: 0-150A

Voltage test range:: 0-60V

Weight:: 98g

Quick Details

Measuring Current Range:: 150A

Measuring Voltage Range:: 0-60V

Accuracy Class:: 95%

Place of Origin:: Guangdong, China

Brand Name:: Engineer Solar

Model Number:: A150A

Operating Temperature:: -25~+55°C

Dimensions:: 85*42*25mm

Name:: Watt Meter Kits

Display:: LCD Display

Color:: Blue

Warranty:: 2 Years

Current test range:: 0-150A

Voltage test range:: 0-60V

Weight:: 98g

Display to show

Vm: Max battery voltage
Wh: Power * Hours
Ah: Capacity that through watt meter, A*h
W: Power that through watt meter
A: Current that through watt meter
V: Voltage that through watt meter
Wp, Ap: Softwave code, no-sense

Details Images

Technical specifications

Current	150A
Operation Voltage	4.8V to 60V
Dimensions	2.6x4.3x8.3cm/1.02x1.69x3.27inch
Color	Blue
Package includes	1 * Watt Meter Power Analyzer 1 * User's Manual
Measures	0V with optional auxiliary battery Measures: 0 to 130 Amps (resolution 0.01A) Measures: 0 to 60V (resolution 0.01A) Measures: 0 to 6554W (resolution 0.1W) Measures: 0 to 65 Ah (resolution 0.001 Ah) Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Features	Prevents peak currents damaging battery, ESC, motors, wiring and connectors. Verifies sufficient operating voltage under load. Individual cell balancing.Set cutoff voltages, check battery capacity health. Confirms proper battery charger operation (connect between your battery and charger). Detect receivers and actual operating current so as to make sure whether an UBEC is needed. Blue backlit LCD display.
