Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
snaterm
-
Model Number:
-
MPS-VX-4.5KW
-
Input Voltage:
-
24VDC, 24Vdc
-
Output Voltage:
-
230VAC
-
Output Current:
-
150A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
90*260*450mm
-
Certificate:
-
CE
-
Warranty:
-
1 years
-
Weight:
-
9kg
-
Build in Solar charge Controller:
-
MPPT 150A
-
Inverter Rated Power:
-
4500W
-
Waveform:
-
Pure Sin Wave
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
snaterm
-
Model Number:
-
MPS-VX-4.5KW
-
Input Voltage:
-
24VDC, 24Vdc
-
Output Voltage:
-
230VAC
-
Output Current:
-
150A
-
Output Frequency:
-
50/60(HZ)
-
Size:
-
90*260*450mm
-
Certificate:
-
CE
-
Warranty:
-
1 years
-
Weight:
-
9kg
-
Build in Solar charge Controller:
-
MPPT 150A
-
Inverter Rated Power:
-
4500W
-
Waveform:
-
Pure Sin Wave

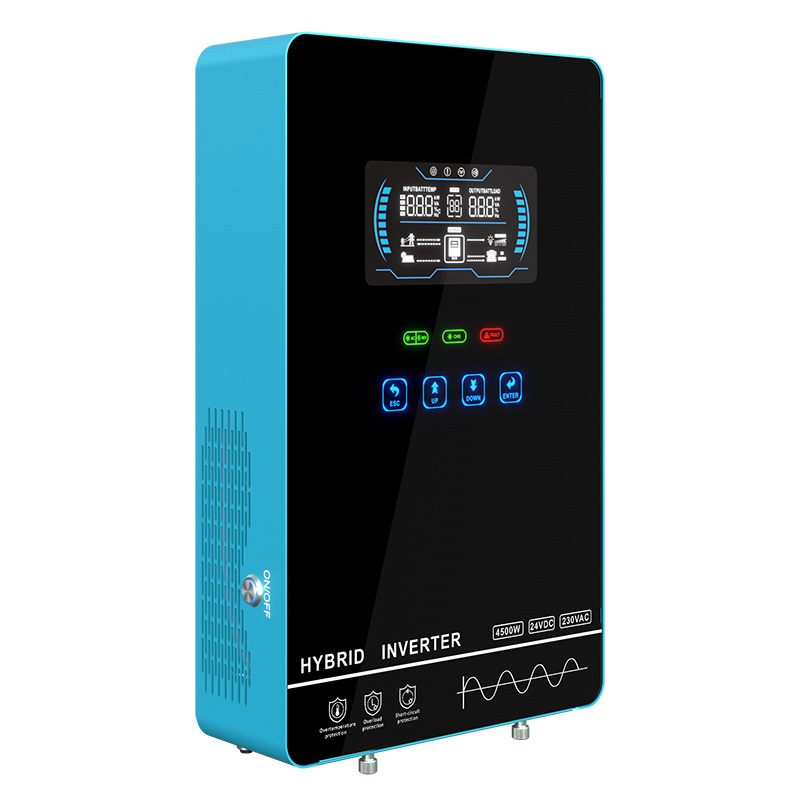

4500W MPPT Hybrid Solar Inverter 24VDC to 230VAC Built-in 150A Solar Charger Pure Sine Wave Output WIFI Optional
Welcome to contact us to get the inverter uer's manual and latest wholesale price list
Features:
1,Pure Sine Wave Solar Inverter
2,Unique Glass Top Cover Design With 6.25inch Lcd Display And Touchable Buttons
3,Built-in 150A MPPT(MAX Pv 6000w) Solar Charger
4,High Pv Input Range From 120v-450vdc
5,Smart Battery Charger Design For Optimized Battery Performance
6,Configurable Ac/battery Input Priority Via Lcd Setting
7,Auto Restart While Pv Is Recovering
8,Over-load , Over Temperature And Output Short Circuit Protection
9,Cold Restart Function
10,Built-in Lithium Battery Automatic Activation
11,Communication With RS232/RS485
12,Wifi Monitoring Function (optional )
13,Anti-dust Kit For Harsh Environment(optional)
14, Restore Default Settings With One Click
Introduction:
This Is A Multi-function Inverter/charger, Combining Functions Of Inverter, Mppt Solar Charger And Battery Charger To Offer Uninterruptible Power Support With Portable Size. Its Comprehensive Large Lcd Display Offersuser-configurable And Easy-accessible Touch Button Operation Such As Battery Charging Current, Ac/solarcharger Priority, And Acceptable Input Voltage Based On Different Applications.
|
Model |
MPS-VX-4500W |
|
|
Rated Power |
4500W |
|
|
INPUT |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
175-265VAC(for personal computers)
|
|
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
|
OUTPUT |
||
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|
|
Surge power |
2* rated power for 5 seconds |
|
|
Efficiency(Peak) PV to INV |
97% |
|
|
Efficiency(Peak) BAT to INV |
94% |
|
|
Transfer Time |
10ms (for personal computers)
|
|
|
Wave form |
Pure Sine Wave |
|
|
BATTERY & AC CHARGER |
||
|
Battery Voltage |
24V |
|
|
Bulk Charging Voltage |
Flooded Battery |
29.2VDC |
|
AGM/GEL Battery |
28.6VDC |
|
|
Floating Charge Voltage |
27.6VDC |
|
|
Overcharge Protection |
32VDC |
|
|
Maximum charge current |
150A |
|
|
SOLAR CHARGER |
||
|
MAX.PV Array Power |
6000W |
|
|
MPPT Range@ Operating Voltage |
120-450VDC |
|
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
|
Maximum Charging Current |
150A |
|
|
Maximum Efficiency |
99% |
|
|
PHYSICAL |
||
|
Dimension.D*W*H(mm) |
468*318*159mm |
|
|
Net Weight (kgs) |
8kg |
|
|
Communication Interface |
RS485/RS232(Standard)
|
|
|
OPERATING ENVIRONMENT |
||
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|
Operating Temperature |
0°C to 55°C |
|
|
Storage Temperature |
-15°C to 60°C |
|
