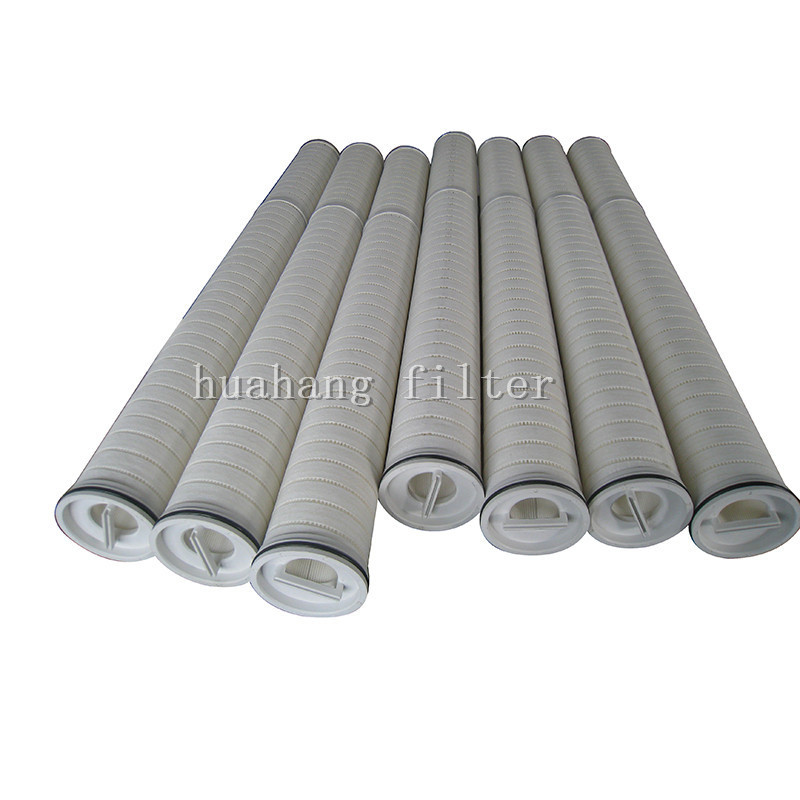

replace HFU640UY100H 20 40 60 inch big clear high flow rate agricultural water filter cartridge

Descriptions

This series of large flow filter has a 6 inch./152mm large outer diameter, and has core inside to stand high pressure when large water was flush for filtering, single open-ended with an inside to outside flow pattern.

The large flow filter diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications.

Features

---Gradient pore structure.

---Up to 110M3/H flow rate per filter cartridge for water filtration.

---Maximum 50% reduction of filter system.

---20inch/528mm, 40inch/1022mm and 60inch/1538mm lengths are available.

---All contaminants can be removed within the cartridge because of the flow direction

Applications

---Prefiltration of RO, Pretreatment of sea water desalination.

---Condensate water filtration, hot water recovery in power generation.

---API,solvents, and water filtration in BioPharm market.

---The filtration of bottled water,high Fructose, edible oil,soft drinks, and milk.

---Paints and coatings, Petrochemical, Refineries.

---Microelectronics, film, fiber and resin.

Specifications

Diamensions

---Outside Diameter: 6inch (150mm)

---Length : 20inch(528mm)          40inch(1022mm)       60inch(1538mm)

Performance

---Removal Rating: 1 / 4 / 5 / 6 / 10 / 20 / 40 / 70 / 100 um

---Maximum Operating Temperature: Pleated glass fiber: 121 °C

Pleated PP: 82 °C

Melt Blown PP: 65°C

---Maximum Differential Pressure: Pleated glass fiber: 3.4Bar at 121 °C

Pleated PP: 3.4Bar at 82 °C

Melt Blown: 1.03Bar at 65 °C

---Recommended Change out differential Pressure: 2.4Bar at 20 °C

---Suggested maximum Flow of water:

20inch length: 660LPM

40inch length: 1,300LPM

60inch length: 1,900LPM

80inch Length

Material of Constructions

---Filter media: Pleated glass fiber, Pleated depth Polypropylene(PP)

pp Melt blown

---Support/Drainage: Polypropylene(PP)

---End caps: Glass fiber reinforced Polypropylene

---Seal Material: EPDM,NBR
