Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale
Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale

Mining equipment SF series used aeration zinc copper gold column lead ore flotation cells machine price for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $30000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
220V/380V
Dimension(L*W*H):
Varies
Weight:
matched
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Impeller diameter (mm):
650
Trough volume(m3):
4
Impeller rotate speed(r/min):
238
Scraper power:
1.5kw
Dimensions:
1850x2050x1200mm
Application:
Gold
Color:
Customers' Requirements,gray,blue,green
Installation:
Engineer Guide
Usage:
Mining Concentration
Certification:
CE, ISO

Quick Details

Production Capacity:
0.5-4(m*m*m/min)
Place of Origin:
Henan, China
Brand Name:
UNIQUE
Voltage:
220V/380V
Dimension(L*W*H):
Varies
Weight:
matched
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Impeller diameter (mm):
650
Trough volume(m3):
4
Impeller rotate speed(r/min):
238
Scraper power:
1.5kw
Dimensions:
1850x2050x1200mm
Application:
Gold
Color:
Customers' Requirements,gray,blue,green
Installation:
Engineer Guide
Usage:
Mining Concentration
Certification:
CE, ISO

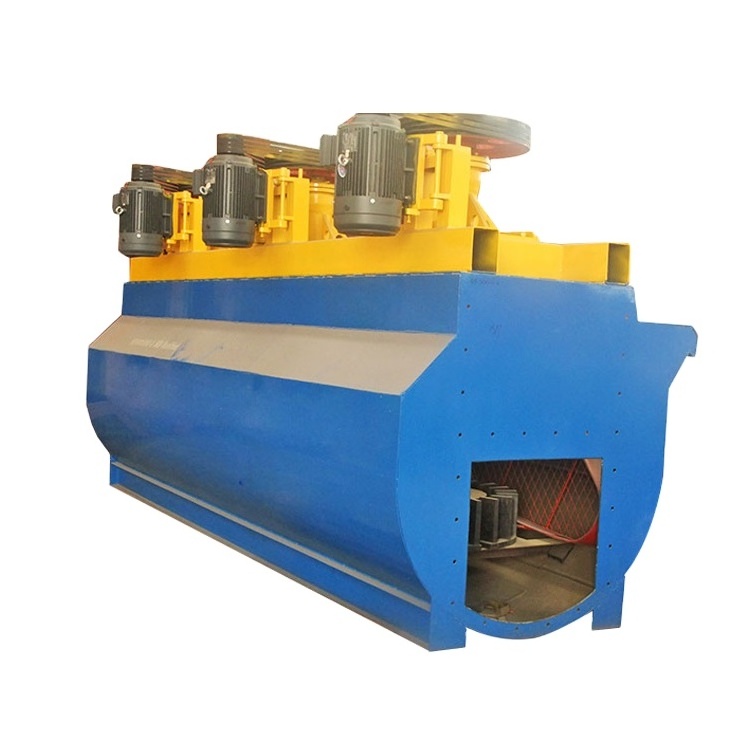

Copper Ore Gold Separating Machine Lead Zinc Flotation Machine Cell

Product Description

Flotation machine is applied for grading ferrous metal and nonmetal such as fluorite and talc.

Motor drives impeller rotating, the coming out negative pressure suck in the air and stirring with ore pulp, also mixing with agentia. The ore granule attach to foam and flotating on the surface. Adjust the liquid level by sluice gate for collecting mineralized foam.

Performance Features of Flotation Tank


Components: pulp tank, stirring device, air charging system, discharging system, motor.
1. pulp tank, it has opening for ore pulp, and sluice gate for adjustment. Trough welded by steek plate and sluice gate made by steel plate and round steel.
2. stirring device, stirring the ore pulp for avoiding of ore sediment, it is made of belt pulley, impeller(rubber), vertical shaft.
3. air charging system, when impeller rotating, negative pressure sucks air by hollow pump line, and dispersing in the ore pulp for bubbles. Plenty of bubbles provide necessary condition for flotation.
4. discharging device, motor drives reducer for moving the scraper to colloect the foam with ore granule.

Working principle of Flotation Tank


The crushed ore mixed with water and neceaary agentia into ore pulp, infuse to trough for further mixing; then fill in air for getting plenty of bubbles, hydrophobic ore granule attach to bubbles and float on the surface of ore pulp; the hydrophilic ore granule stay in the pulp. Finally, discharging the mineralized bubbles for mining collection.

Technical Parameters

Tecanical Parameters of Flotation Tank

Model

SF0.37

SF0.7

SF1.2

SF2.8

SF4

SF8

Trough volume(m³)

0.37

0.7

1.2

2.8

4

8

Impeller diameter (mm)

300

350

450

550

650

T60

Capcaity m³/min)

0.2-0.4

0.3-0.9

0.6-1.2

1.5-3.5

0.5-4

4-8

Impeller rotate speed(r/min)

352

400

312

268

238

191

Motor

Model

Y90L-4

Y100L2-4

Y132M2-6

Y160L-6

Y180L-6

Y250M-8

Y90S-4

Y90S-4

Y90S-4

Y90S-4

Y90L-4

Y100L-6

Power(kw)

1.5

3

5.5

11

15

30

1.1

1.1

1.1

1.1

1.5

1.5

Dimensions(mm)

700×700×750

900×820×950

1100×1100×1100

1700×1600×1150

1850×2050×1200

2200×2900×1400

Single trough weight (kg)

468

600

1373

2338

2660

4486

Detailed Images

Packaging & Shipping

Packaging :standard Container Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping :we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After-sales service support
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Normally,Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
