Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAHO
-
Model Number:
-
kaho335
-
Product name:
-
Shoot Resistant Glass
-
Size:
-
Custom Sizes
-
Color:
-
Clear,ultra clear,blue,green,grey,bronze,brown,etc.
-
Function:
-
Safety Protection
-
Sample:
-
Available
-
Packing:
-
Wooden Crates
-
Glass type:
-
Bullet Glass
-
Edge:
-
Polished Edge
-
Keywords:
-
Laminated Bullet Proof Glass
Quick Details
-
Application:
-
Office Building, Mall, Apartment, Basement, Bank
-
Usage:
-
Industrial, Bulletproof
-
Thickness:
-
25-50mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAHO
-
Model Number:
-
kaho335
-
Product name:
-
Shoot Resistant Glass
-
Size:
-
Custom Sizes
-
Color:
-
Clear,ultra clear,blue,green,grey,bronze,brown,etc.
-
Function:
-
Safety Protection
-
Sample:
-
Available
-
Packing:
-
Wooden Crates
-
Glass type:
-
Bullet Glass
-
Edge:
-
Polished Edge
-
Keywords:
-
Laminated Bullet Proof Glass

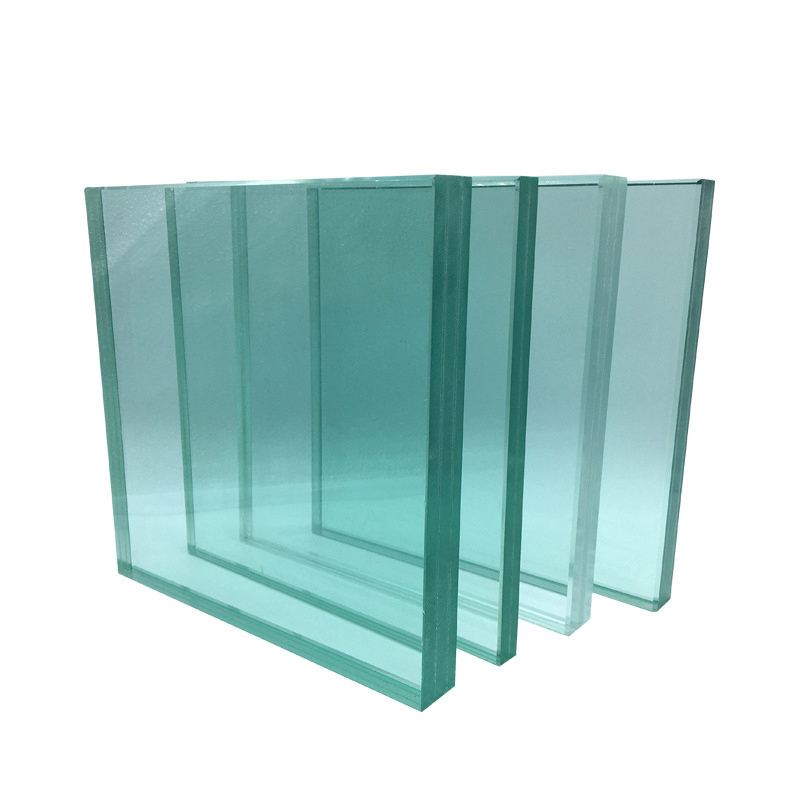

Cheap 3mm-19mm Car Armored Glass Price For Vehicle
According to the different thickness of glass and laminated film, it can effectively resist pistols, tommy gun, rifles and others different guns’ shooting.
These bulletproof glass are widely used in security establishment, cars, airplanes and bank ma nagement etc. it is a high-class safety glass.
|
Product Name |
Laminated Glass |
|||
|
Raw Material |
Float Glass |
|||
|
Types of Product |
Common transparency and colored laminated glass ,coating laminated, tempered laminated, curved laminated glass, bulletproof glass and aquarium glass, etc. |
|||
|
Thickness |
Sheet Glass |
3-19mm |
||
|
Laminated glass |
6.38-40mm |
|||
|
PVB |
Color |
Clear/Milky white/Grey/Blue/Green/Pink/etc. |
||
|
Thickness |
0.38-3.04mm |
|||
|
Size |
Minimum Size |
300mm×300mm |
Can be customized |
|
|
Maximum Size |
2440mm×3600mm |
|||
|
Packing Details |
1. Packed into wooden carton with soft wrapper between each piece of glass. 2. The glass needs to be wrapped up by plastic film to prevent the dust and cracks. 3. Between the gap and the wooden carton ,there will be soft material is filled in. The package measures up the code of JC/T 512, each carton will have marks like: upwards, handle with care, size of glass and so on. |
|||
|
Quality Standard |
CE/CCC/ISO |
|||
|
Please note: KAHO can customize according to the given specifications and colors from our clients. |
||||
-Professional bulletproof
-Strong a dhesivity
-UV resistant
-Sound-proof
Choose to use kaho bulletproof glass, you will not be helpless in the face of the following situations, give you more security .
Bullet-proof glass corresponding to bulletproof level
| Level(china) | Gun type | Bullet types |
Bullet speed(m/s) |
Distance (m) |
Thickness (mm) |
|---|---|---|---|---|---|
| F64 | 64 type 7.62mm hand gun | al-core 4.72-4.78g | 300-320 | 5 | 19 |
| F54 | 54 type 7.62mm hand gun | steel-core 5.56-5.69g | 420-440 | 5 | 21 |
| F79 | 79 type 7.62mm micro-submachine gun | steel-core 5.56-5.69g | 480-515 | 10 | 25 |
| F56/AK47 | 56 type 7.62mm submachine gun | steel-core 7.75-8.05g | 710-725 | 10 | 35 |
| FJ79 | 79 type 7.62mm Sniper rifle | steel-core 9.45-9.75g | 830-870 | 10 | 40 |
| F53(armour-piercing bullet) | 53 type 7.62mm Sniper rifle | armour-piercing bullet 9.45-9.75g | 830-870 | 10 | 68 |
Test Standards
1. EN 14449: glass in building - laminated glass and laminated safety glass
2. EN 12600: glass in building - pendulum test
3. EN 12150: thermally toughened sode lime silicate safety glass
4. ASTM C1172: laminated architectural flat glass
5. ASTM C1048: heat treated flat glass
6. ANSI Z97 1: safety glazing materials used in buildings
7. GB 11614: flat glass
8. GB 15763: safety glazing materials used in buildings
9. ISO 12543-1~6: glass in building - laminated glass and laminated safety glass
10. AS/NZS 2208: safety glazing materials in building
1. Housing, hotel, restaurant, shopping mall, commercial building, bathroom
2. Doors, windows, partitions, ceilings, curtain walls, stairs, tables
3. Sightseeing elevators, banks, showrooms, floors, villas,skylight,guardrail,paitition
4. hospital, libraries and museums, airport terminals, residences and apartment buildings
5. All kinds of place
